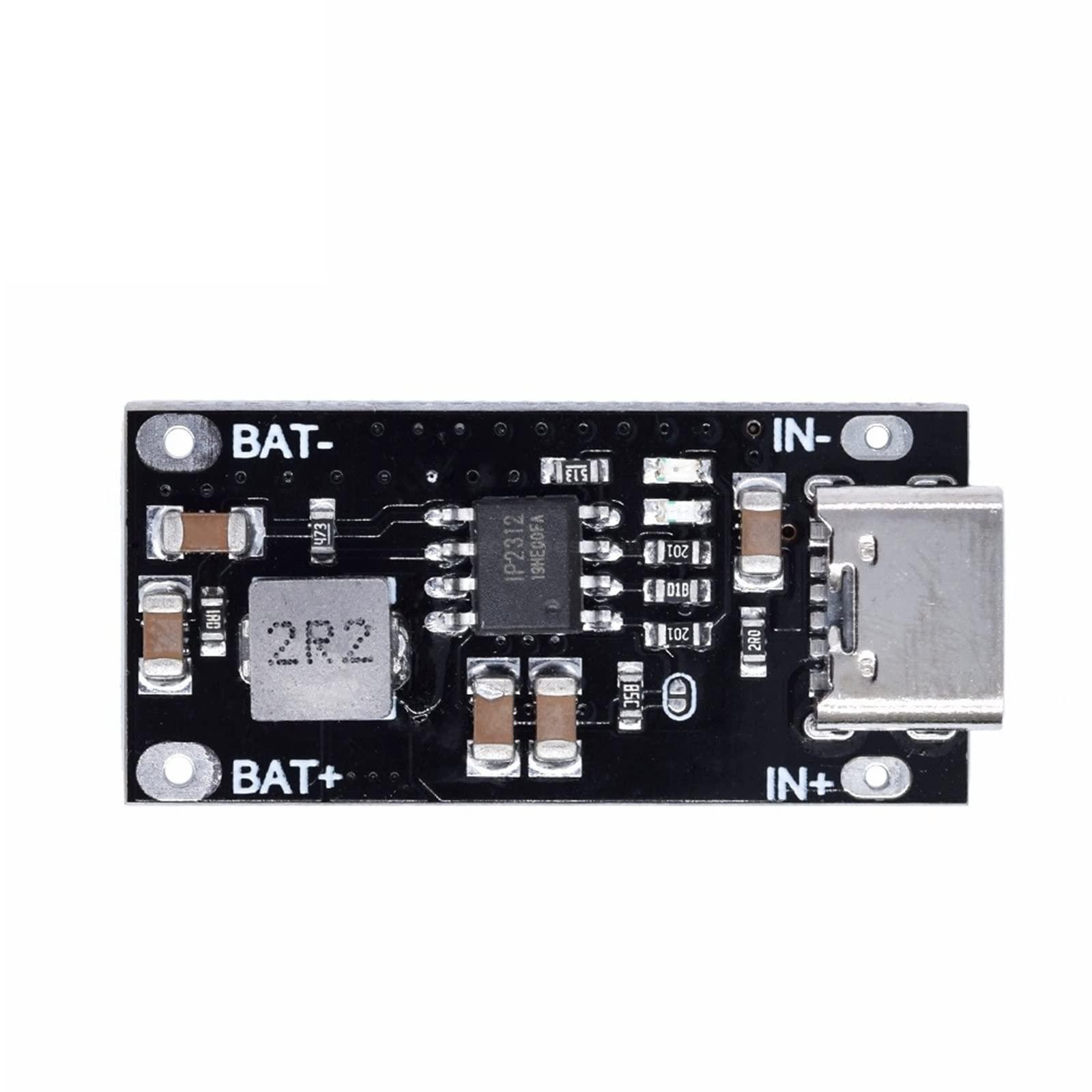

USB Type C 3A High Current IP2312 Polymer Ternary Lithium Battery Quick Fast Charging Board Charger Module

Specification:

• Main control chip: IP2312
• Input voltage: 4.5~5.5V

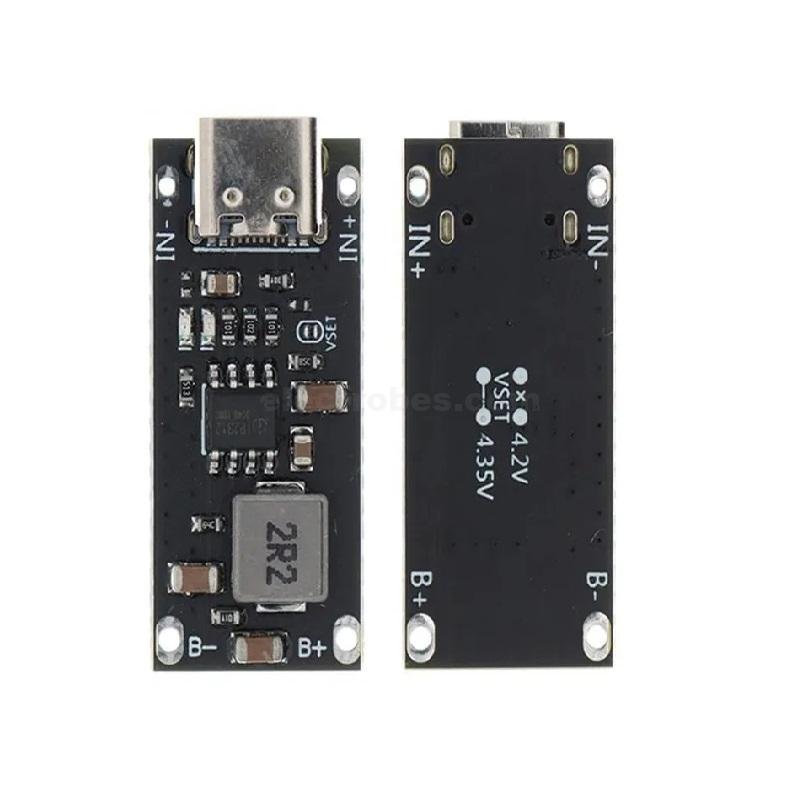

• Charging cut-off voltage: 4.2V / 4.35V (the output voltage of the two versions is optional)

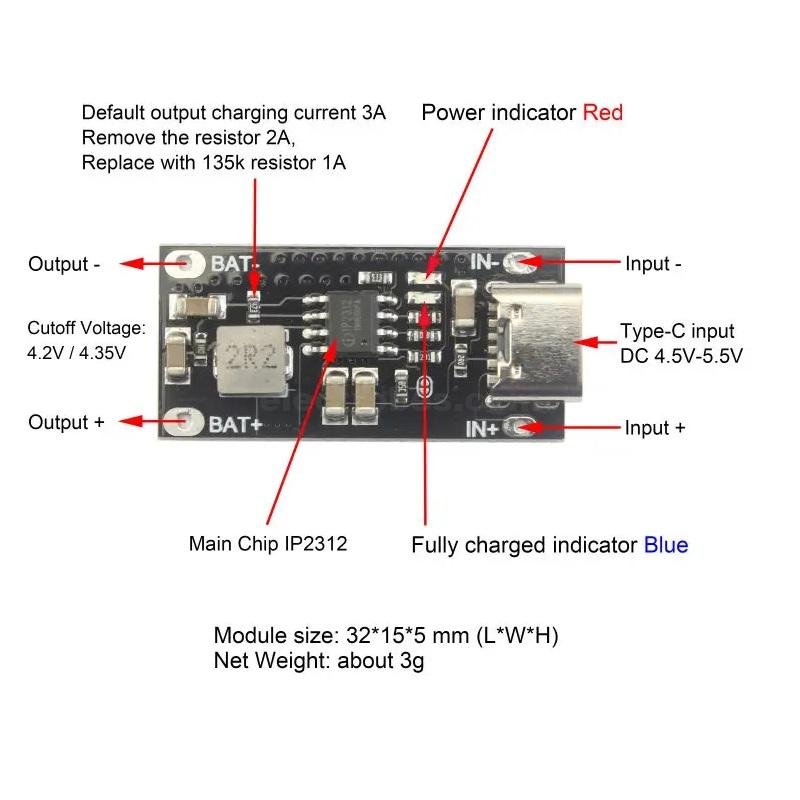

• Charging current: 3A (the current can be changed by adjusting the resistance)
• Indicator light: yes

Warning:

Not suitable for 3.2V lithium iron phosphate battery.

Note:

1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.

Package Included:

1 X Battery Charging Board
