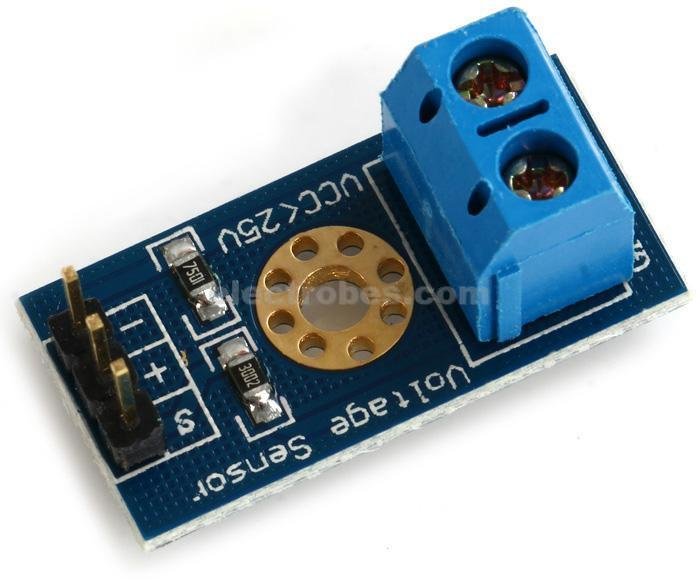

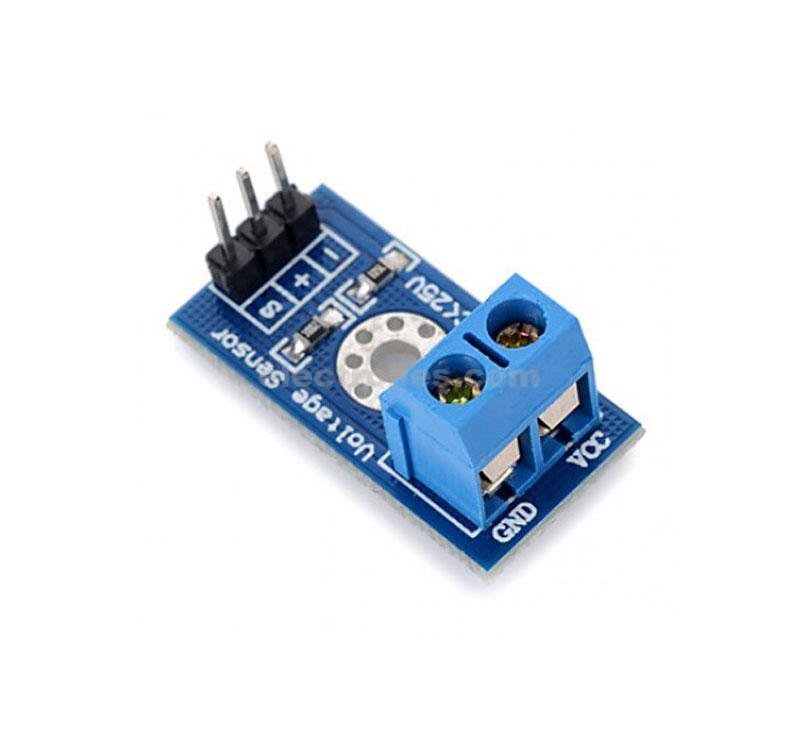

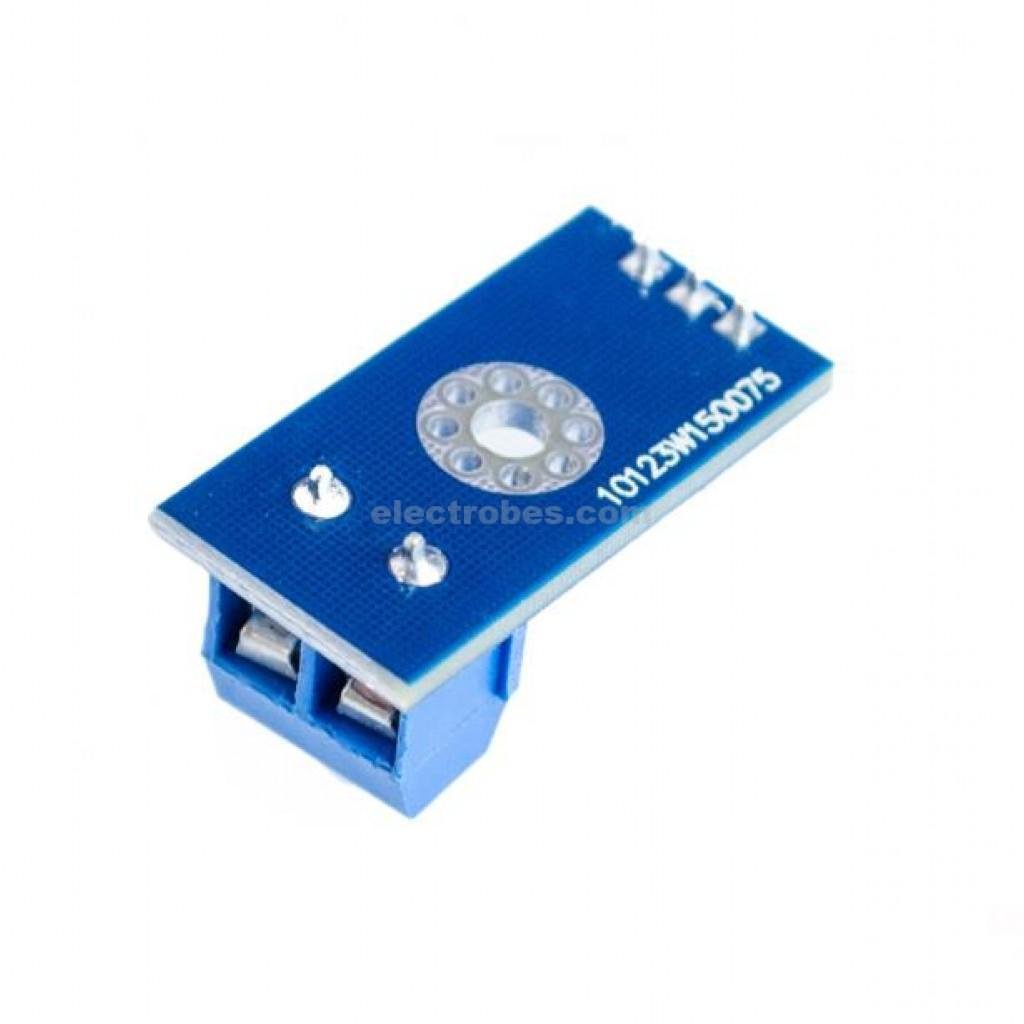

Voltage Sensor Module DC 0-25V

A simple but very useful module which uses a potential divider to reduce any input voltage by a factor of 5. This allows you to use the analogue input of a microcontroller to monitor voltages much higher than it capable of sensing. For example with a 0-5V analogue input range you are able to measure a voltage up to 25V. The module also includes convenient screw terminals for easy and secure connection of a wire.

Pinout:

INPUT
1….GND
2….0-25V

OUTPUT
1…Sense
2…N/C
3…GND

Package Includes:

1 x 0-25V DC voltage sensor module
