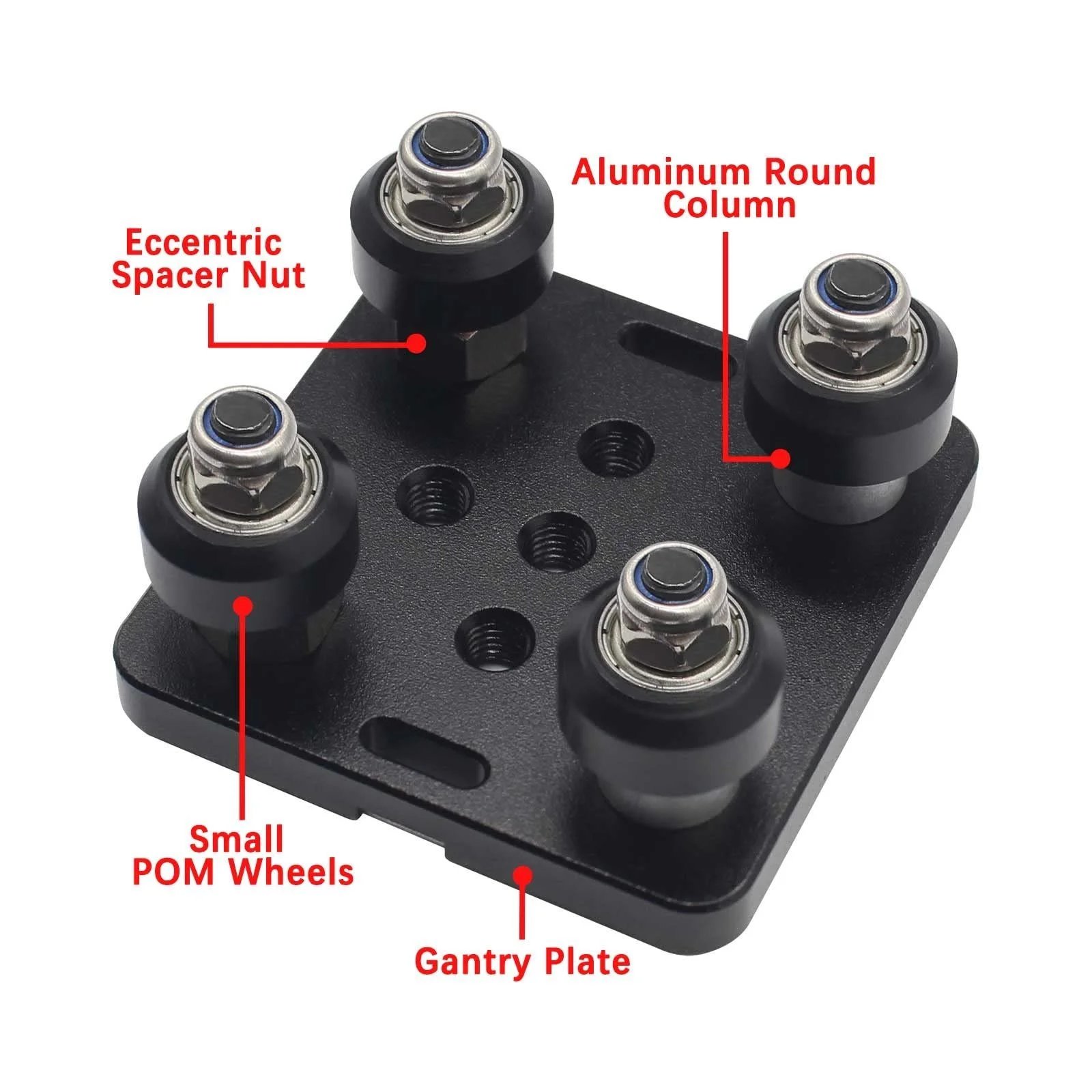

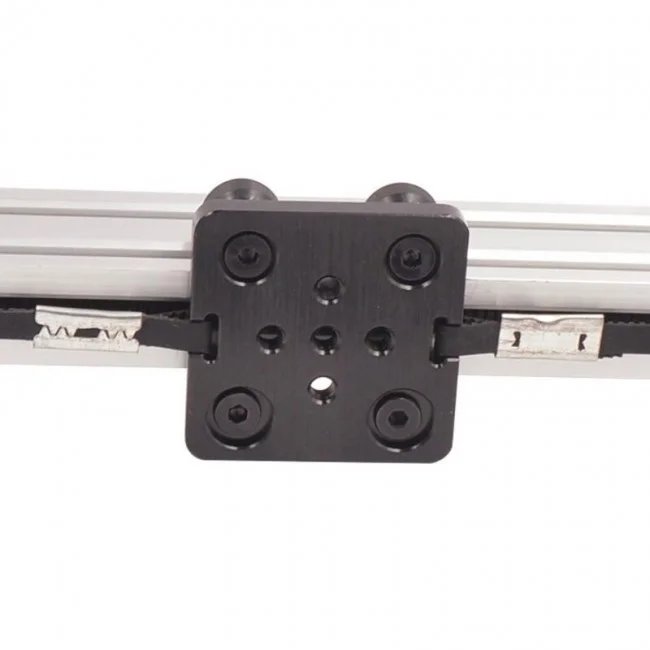

X-axis Universal Wheel Bracket For 2020 Profile

Description:

This type of upgrade for the X-axis belt is often called a “2020 profile X-axis synchronous belt stretch/straighten tensioner”. It replaces or augments the stock tensioner assembly mounted on the 2020 aluminium extrusion on the X-axis. Its aims are:

• Allowing fine adjustment of the belt tension via a screw/knob rather than relying on the fixed stock bracket.

• Ensuring the belt runs straight and true, reducing side-to-side movement or slipping of the belt on the pulley/rail.

• Mitigating belt stretch or loosening over time by making re-tensioning easier.

• Using a sturdier material (aluminium alloy or steel) for better durability compared to cheap plastic stock parts. For example, one listing says: “Adjustable X-axis Timing Belt Straighten Tensioner, very easy to adjust the belt tension. Material: Aluminium Alloy … Fit on 2020 Aluminium Profile. Great upgrade for Ender 3 / Ender 3 Pro / Ender 5 / CR10 / CR10S.

Features:

• Material: Many are made of aluminium alloy (anodised finish) or in some cases SPCC steel.
• Compatibility: Designed for 2020 aluminium profile used on the X-axis of Ender 3 / Ender 3 Pro / Ender 3 V2 etc. Some kits include a 2040 profile variant for the Y-axis as a bundle.
• Adjustability: The tensioner allows you to adjust the belt tension (by turning a knob/screw) and sometimes the belt length (via sliding bracket, within limits). Example: “Adjustable Distance: 8mm; Adjustable Belt Length limit: 16mm.
• Pre-assembled or minimal assembly: Many kits come “already assembled” so you just uninstall the old bracket and mount the new one.
• Improved print quality: By keeping the belt properly tensioned and aligned you get smoother motion, less belt flutter/sag, better dimensional accuracy. One seller says “Easier to adjust the belt, with higher precise and better printing effect.

Specification:

• Fit for: Ender 3 / Ender 3 Pro / CR-10 / CR-10 S etc. (X-axis 2020 profile)

• Material: Aluminium alloy, surface anodised.

• Adjustable distance (bracket movement): ~8 mm for X-axis.

• Adjustable belt length limit: ~16 mm (again from one listing)

• Belt width compatibility: 6 mm belt

• Colour: black anodised.

• Dimensions / size: ~11.5 × 7.6 × 2.0 cm;

• Weight: ~68 g.

Package Includes:

1 x X-axis Universal Wheel Bracket
