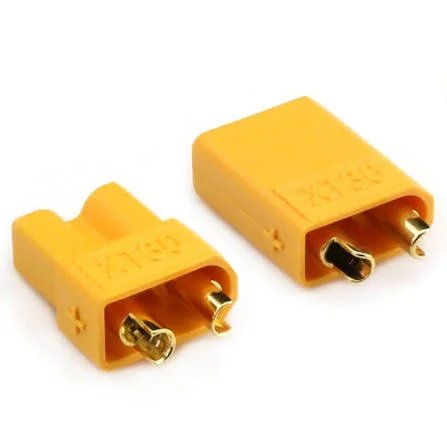

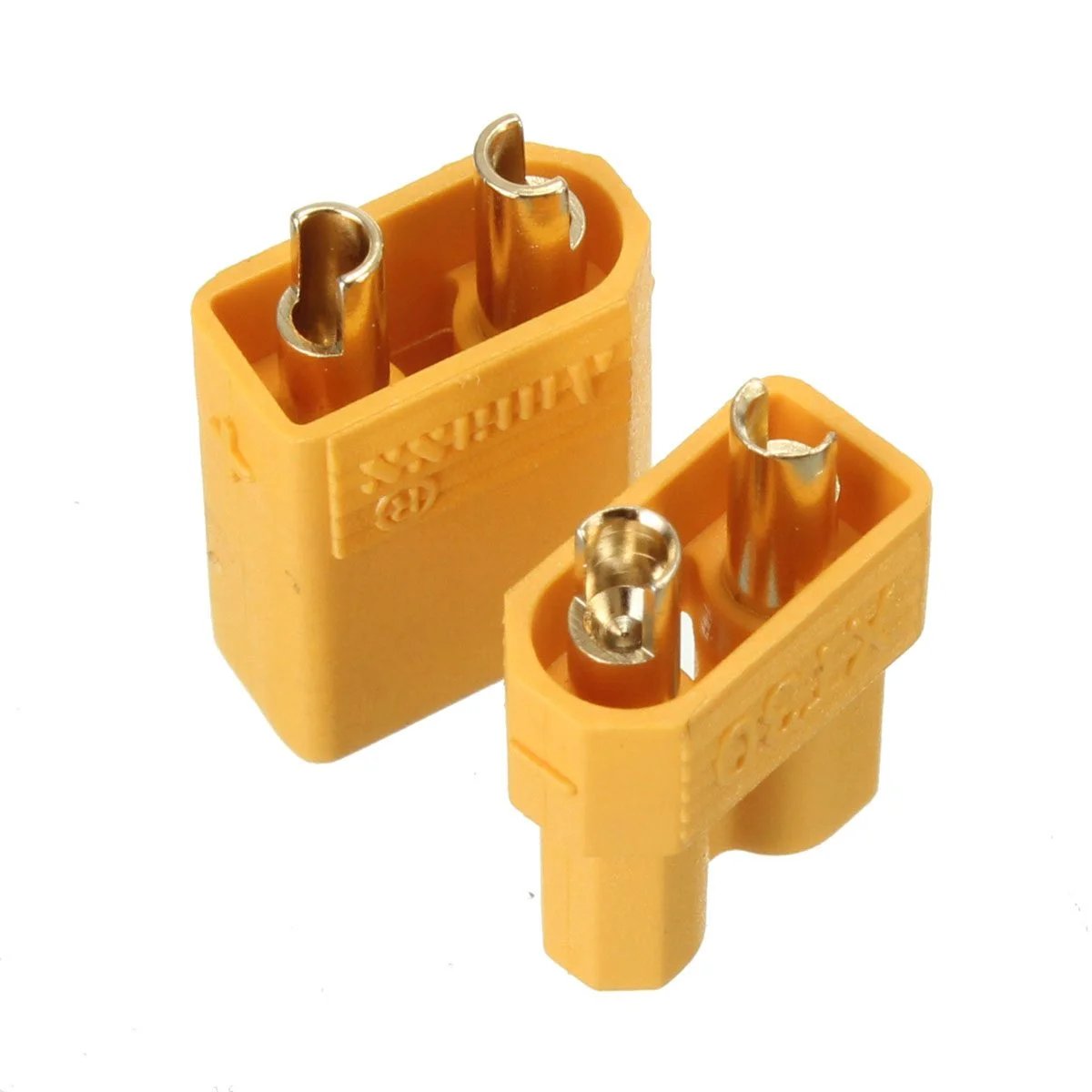

XT30 500V 30A Male & Female Bullet Connectors Plug Sockets
XT30 500V 30A Male & Female Bullet Connectors Plug Sockets commonly used as battery lead connectors up to a constant 35 amps. Buy online in Pakistan.
In stock
₨ 75
In stock
XT30 500V 30A Male & Female Connectors Battery Plug Sockets
These XT30 Connectors Male/Female Pair are excellent W.S. Deans T-connector replacements. They are made from high-temp Nylon and gold plated spring connectors, both included in the injection mould at the time when forming the connector. The XT60 ensures a solid high-amp connection, perfect for applications up to and beyond 35A constant.
Nylon XT30 more reliable and a better quality connection than Deans T-Connectors. Nylon XT60 provides better protection from short-circuiting the batteries. These connectors are made from high-temp nylon with gold-plated spring pins or sockets molded in.
Features:
- Housing shape provides protection against shorting and reverse polarity
- Can accept up to 12AWG wires
- Semicircular solder terminals make it easy to install wires
- Able to sustain 90A+ continuous current.
Applications:
- RC Battery connectors
- Solar Battery terminal connectors
- Electric vehicle battery pack connectors
- Drones or Multi-Copter battery connector
Package Includes:
1 x XT30 Male-Female Connector Pair
| Rated Operating Voltage (VDC) | 500 |
| Contact Material | Brass |
| Current Handling Capacity (A) | 30-35 |
| Contact Plating | Gold flash |
| Operating Temperature Range (C) | -20 to 120 |
| Compatible for Wire Size (AWG) | Upto 12 AWG |
| Material | Nylon |
| Plug Type | 5mm gold bullet connector in nylon shroud |
| Gender | Male-Female Pair |
| No. of Contact Points | 2 |
| Connector Type | XT30 |
| Metal Connector Size (mm) | 4.5 |
| Color | Yellow |
| Weight (gm) | 8 Each with Housing |
