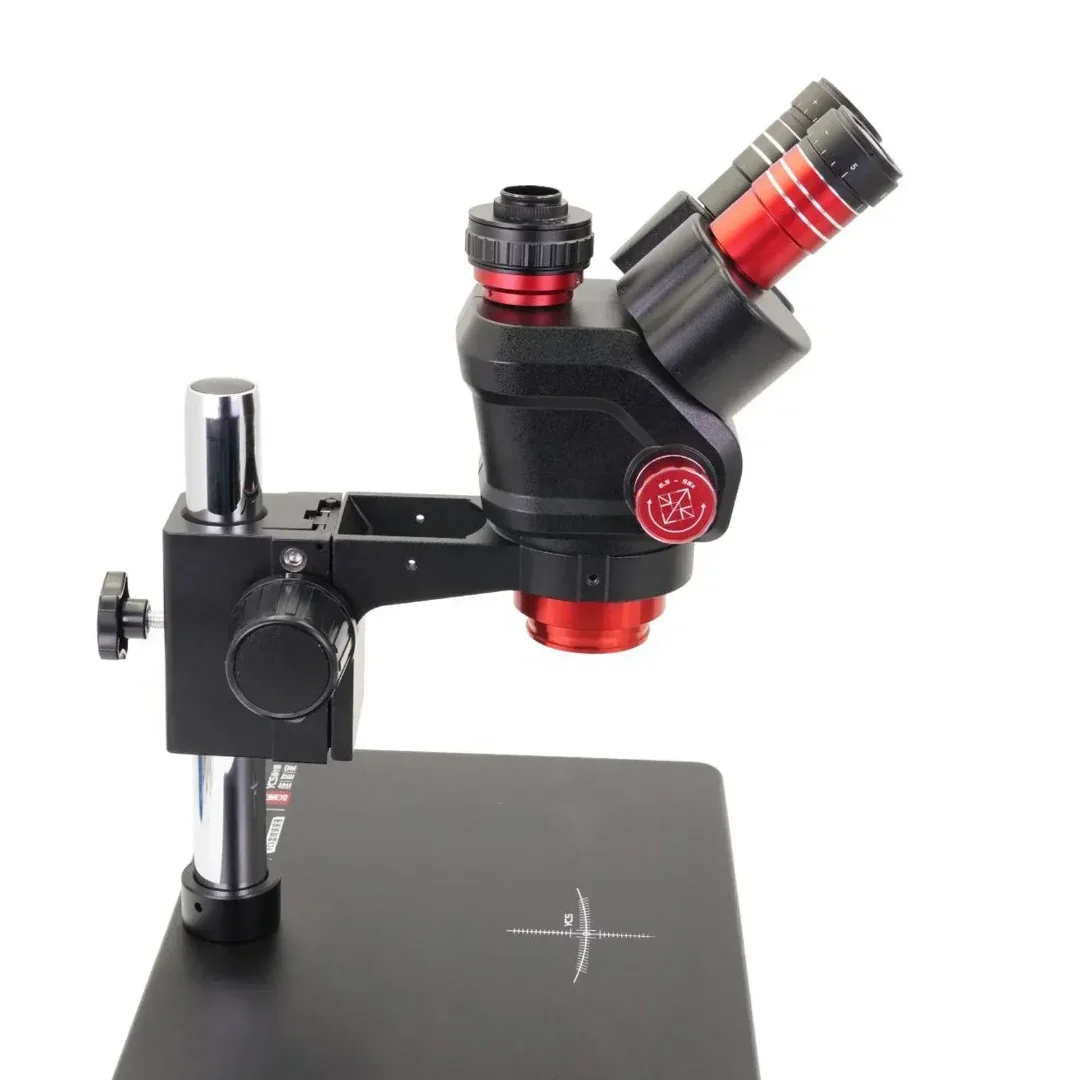

YCS-6558X Trinocular Stereo Zoom Microscope with Big Base 6.5-58X Zoom for Mobile Phone PCB Welding
Features:
- YCS-6558X Trinocular Microscope, 10X/23 high eye-point wide-angle eyepieces, 6.5X-58X zoom objective adjustment, wide-range carrier base

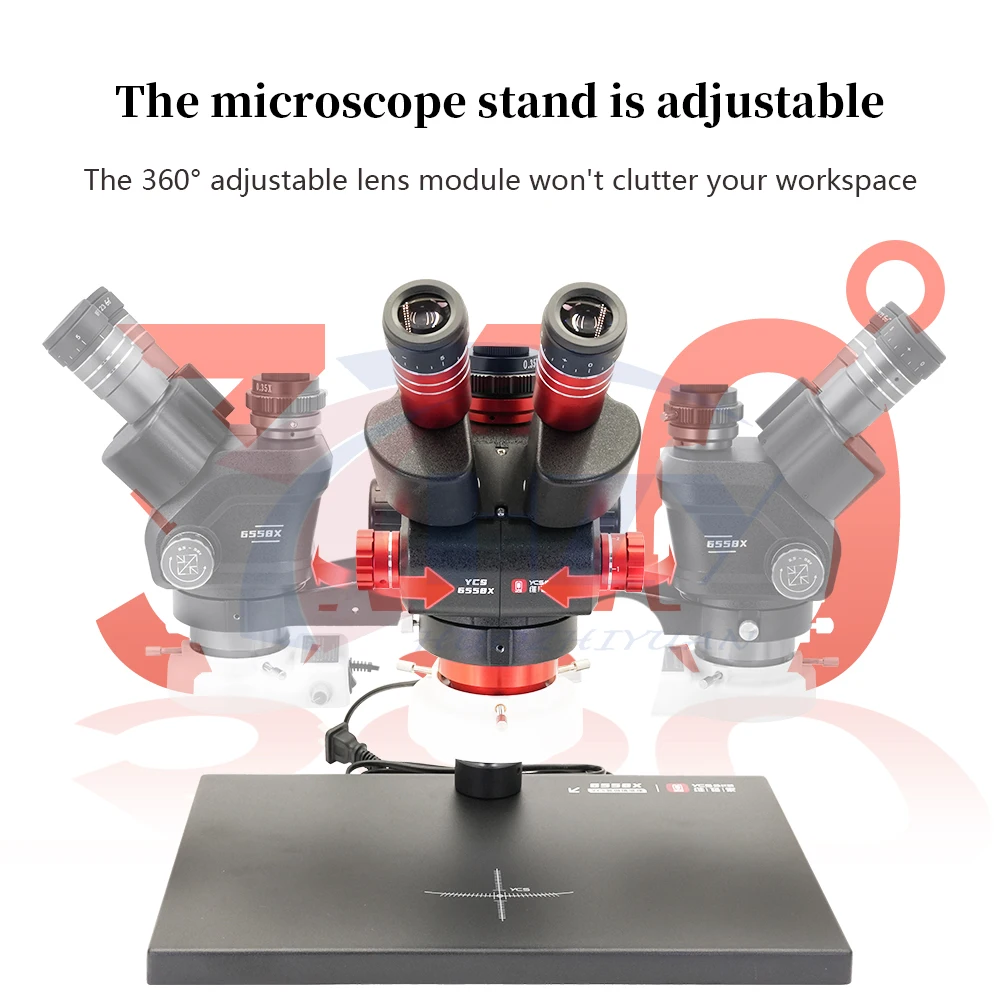

- The microscope holder assembly is freely adjustable, the lens module can be adjusted 360°, the free working position does not affect your other operations
- Multi-scenario applications, wide range of applications, can be used for cell phone repair, biological research, precision instruments, etc.
- High eye-point wide-angle eyepiece, high-transparency optical glass, 23MM large lens, clear imaging, observation is not easy to fatigue
- Dustproof ring lampshade, touch adjustable light source, applicable to multiple scenarios, snap-on, low-energy design, long life, no dark shadows
- Wide range of carrier base, suitable for more working scenarios
In stock
₨ 60,000
In stock
YCS 6558S Ultra HD Trinocular Microscope with Large Base 6.5-58 Zoom 4K Camera for Mobile Phone PCB Welding Microscope Tools Set
Prdocut Description:
6558S YCS Ultra HD Trinocular Microscope with B3 Base, 6.5X-58X Zoom for Mobile Phone PCB Soldering Microscope Tool. Magnification: Offers a 6.5X-58X continuous zoom. Optics: Equipped with 10X/23 high eye-point wide-angle eyepieces for clear imaging. Ergonomic Design: Designed for comfortable and prolonged use. Versatility: Suitable for mobile phone and electronic device repair, circuit board inspection, and fine welding. Construction: Made from durable aluminum alloy. Trinocular Head: Features a 45-degree inclined, 360-degree swiveling trinocular head. Base: Comes with a large base for stability.
Key Features:
Curve Waveform Analysis:
- Displays real-time current & voltage waveforms
- Helps visualize circuit behavior for accurate fault detection
High-Speed Dynamic Measurement:
- Millisecond-level sampling with up to 470% faster capture speed than traditional testers
Multi-Display Modes:
- Supports curve, pointer, and digital modes
- Allows flexible monitoring depending on testing needs
High-Precision Testing:
- Accurate voltage and current measurement with fine resolution (1mV / 0.1mA)
Ultra-Fast Diode Detection:
- 0.01-second diode scanning for quick leakage detection and troubleshooting
Charging Power Monitoring:
- Displays voltage, current, power, time, and battery capacity (mAh) in real-time
PC Connectivity (Host Projection):
- Supports real-time data display on computer
- Ideal for workstation-based repair environments
Intelligent Fault Detection:
- Quickly identifies issues such as:
- Short circuits
- Voltage drops
- Current abnormalities
- Can locate faults within seconds
Large IPS HD Display:
- 4.0” screen with wide viewing angle (178°)
- Clear waveform visualization even under bright light
Firmware Upgrade Support:
- Cloud upgrade capability for future improvements and features
Flexible Mounting Design:
- Can be mounted on a bracket with adjustable viewing angles
Package includes:
- 1 x Microscope Body
- 1 x Microscope Focusing Arm
- 1 x Goggles
- 2 x Eyepieces (WF10X/23)
- 1 x CTV Lens
- 1 x Dustproof Lens
- 1 x Base
- 1 x Lamp
- Total Magnification Range: 6.5X to 58X continuous optical zoom.
- Zoom Ratio: 1:6.4 continuous adjustment via dual metal control knobs.

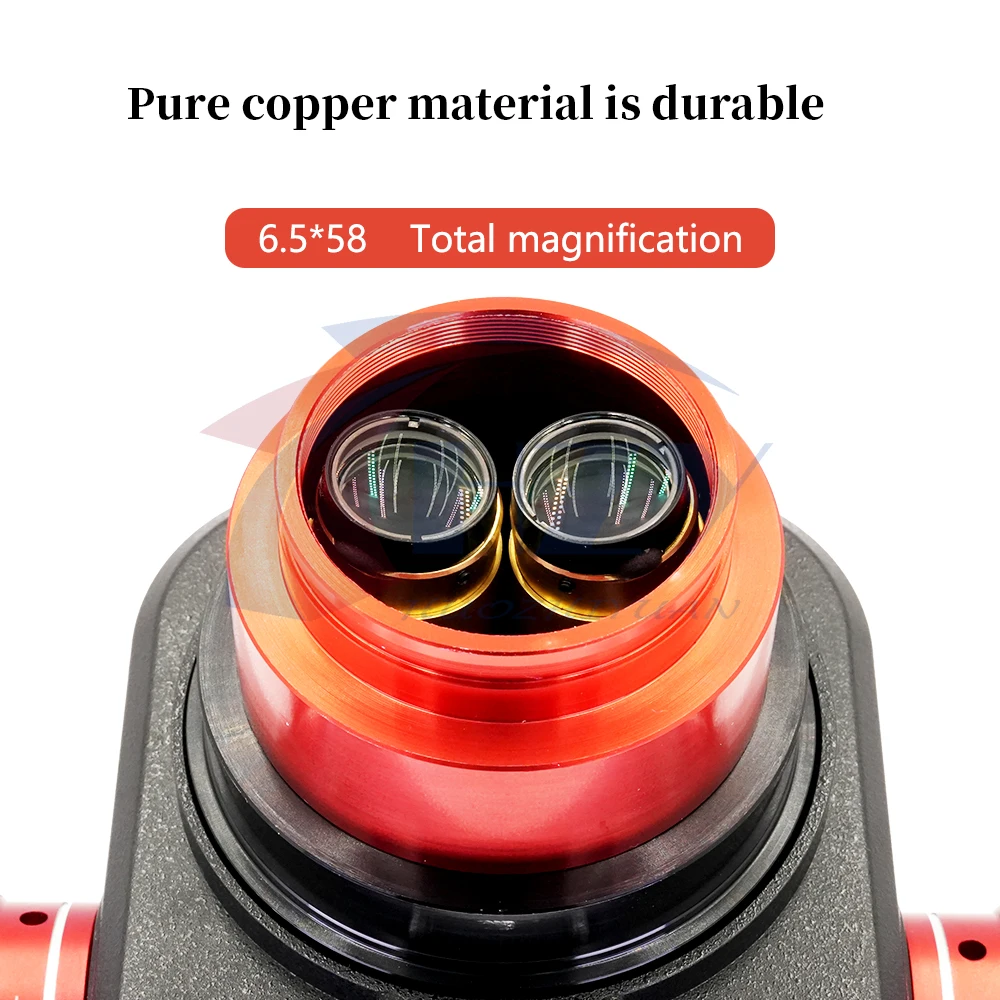

- Objective Lens: 0.65X to 5.8X pure copper High-Definition lenses equipped with anti-corrosion optical coatings.
- Eyepieces: Dual WF10X/23mm high eye-point, ultra-wide-angle eyepieces made of high-transmittance optical glass to minimize user fatigue
