YIHUA 305D 30V 5A DC Power Supply Precision Lab Variable Adjustable Regulator

Compare
Availability:

Available on backorder

₨ 15,500

Available on backorder

Estimated Delivery Time: 2-3 days

Add to Wishlist
Compare

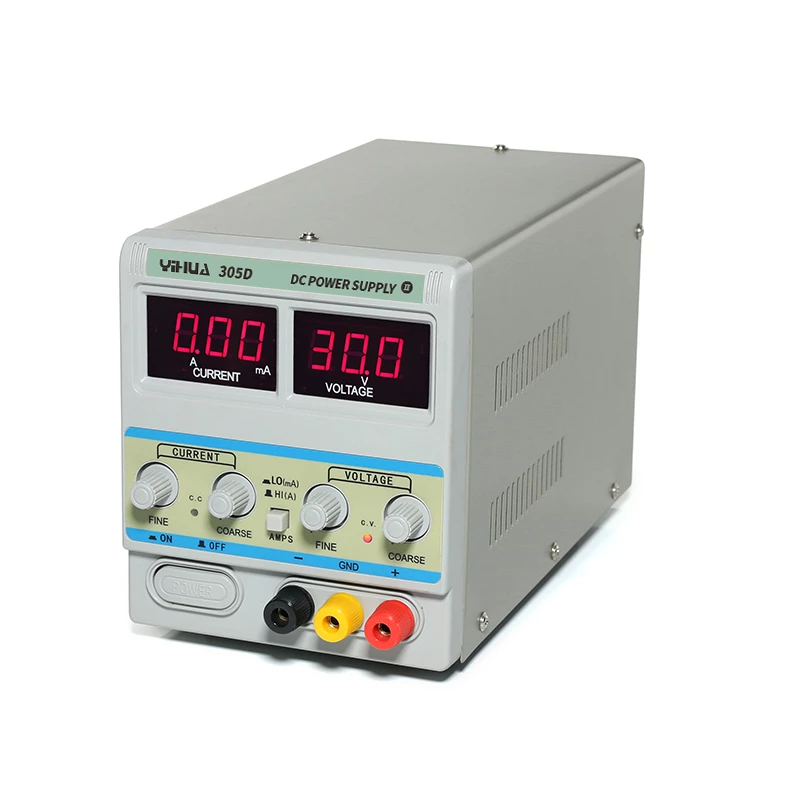

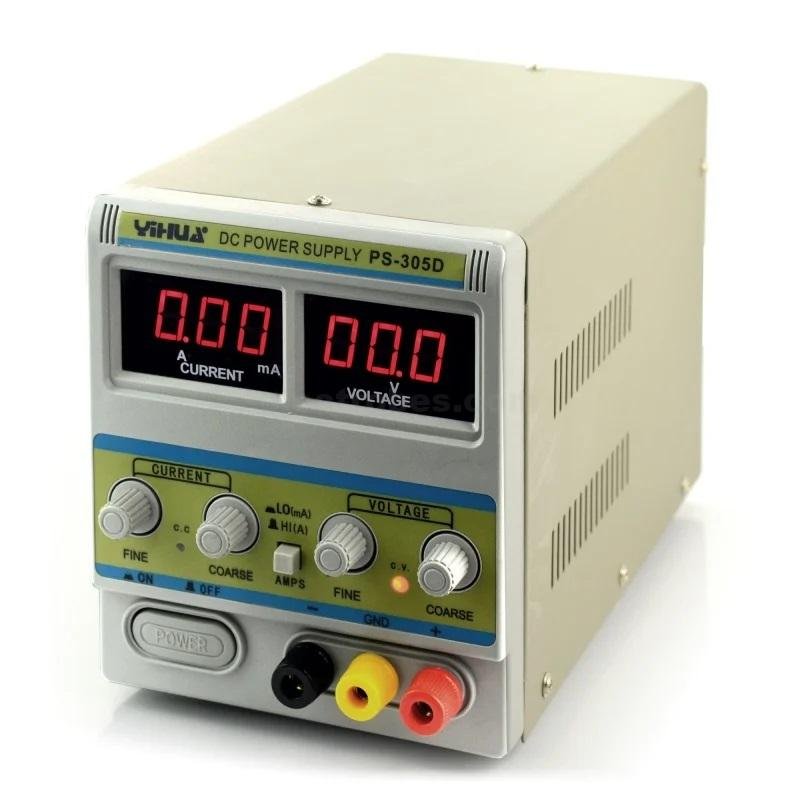

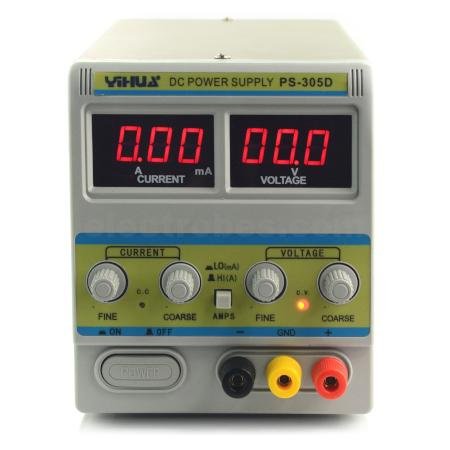

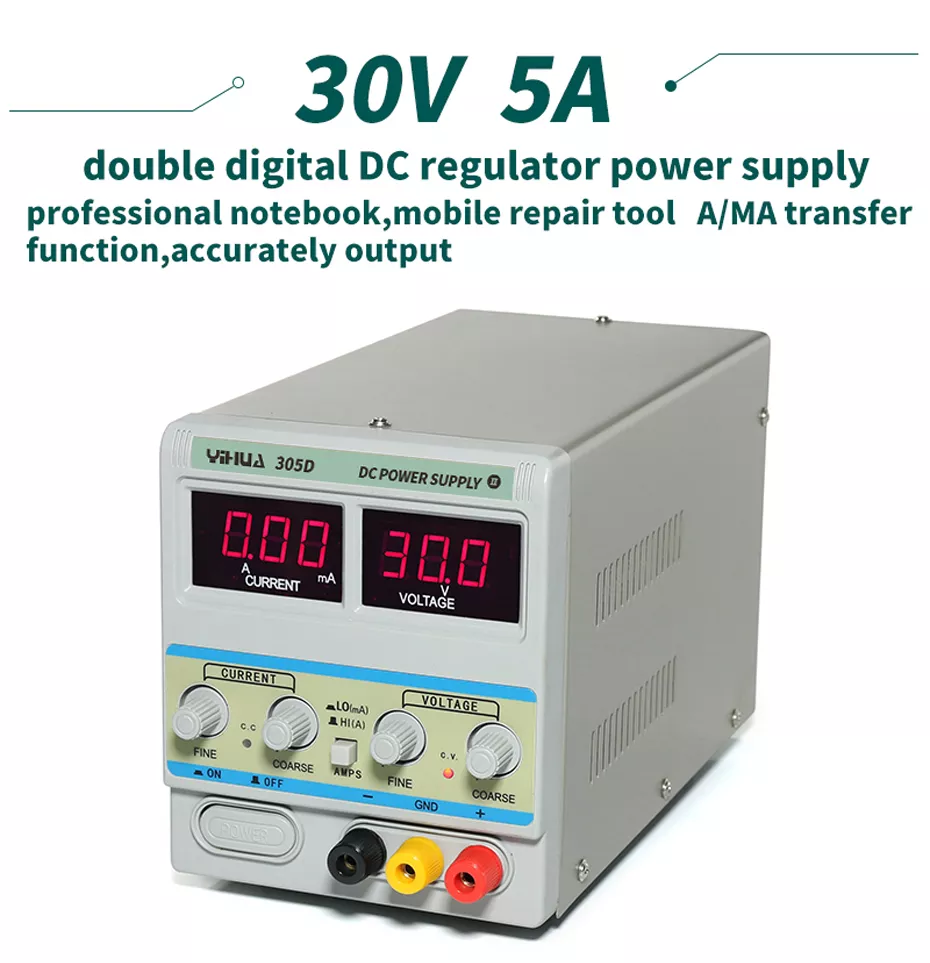

YIHUA YH-305D DC Power Supply Precision Lab Variable 30V 5A Adjustable Regulated Supply

YIHUA DC Power Supply YH305D is special needs the design for the handset and each kind of correspondence instrumentation equipment service. This YH305D dc voltage power supply uses the most advanced short circuit protection self-recovery electric circuit. YH 305D high voltage dc power supply, the high-speed overflow protection starts, and belt intelligence acousto-optics warning. After the short circuit protection self-recovery treats the unsporting in one second the self-recovery output.

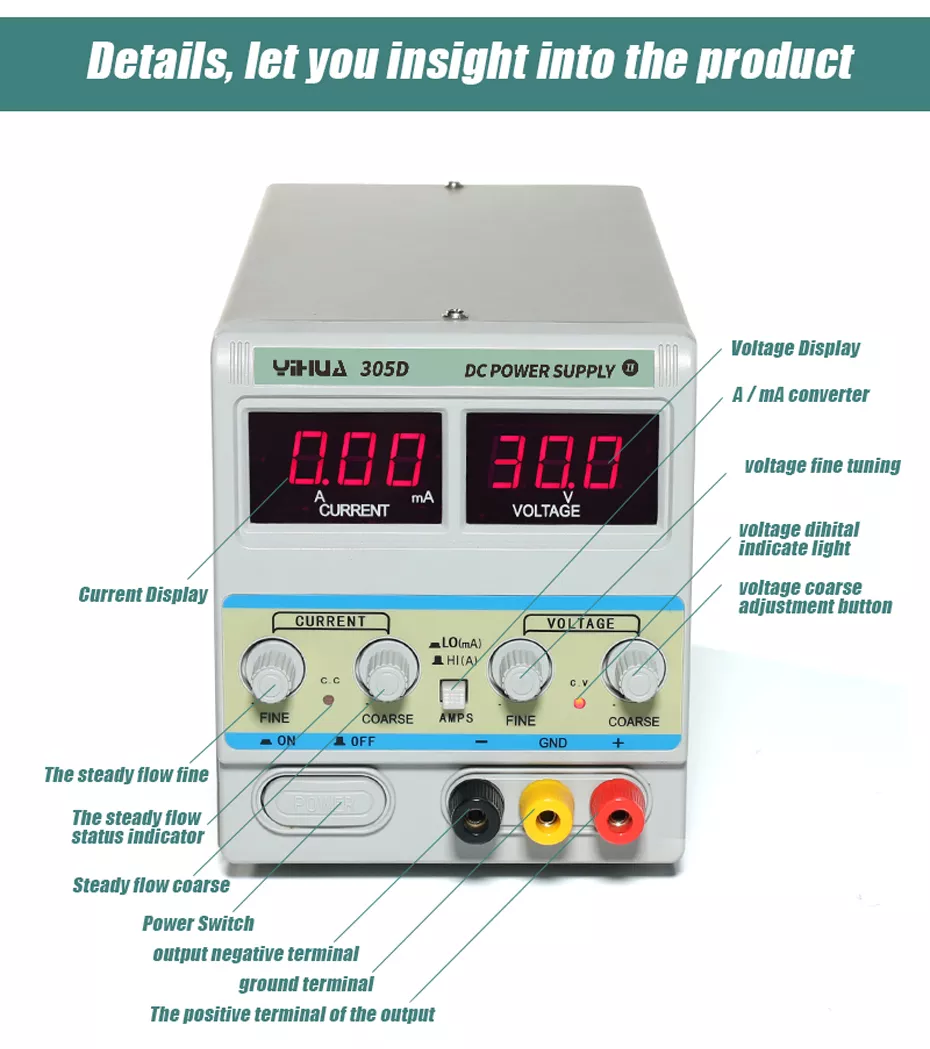

Features Of YH305D Digital LED DC Power Supply Precision Variable Adjustable 30V 5A:

  • This model has a compact design with all-metal construction.

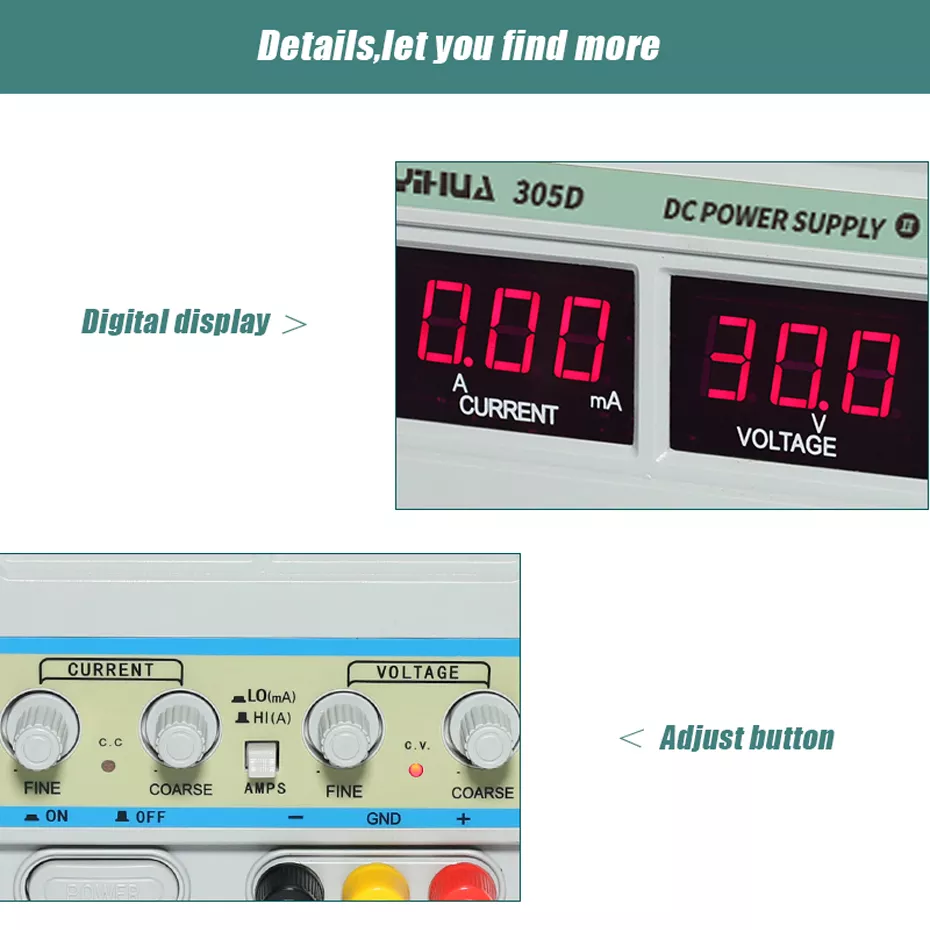

  • Featuring a Dual LED three digital tube display with a highly accurate LED digital readout.
  • Maximum output is 30V at 5A.
  • High stabilized output voltage.

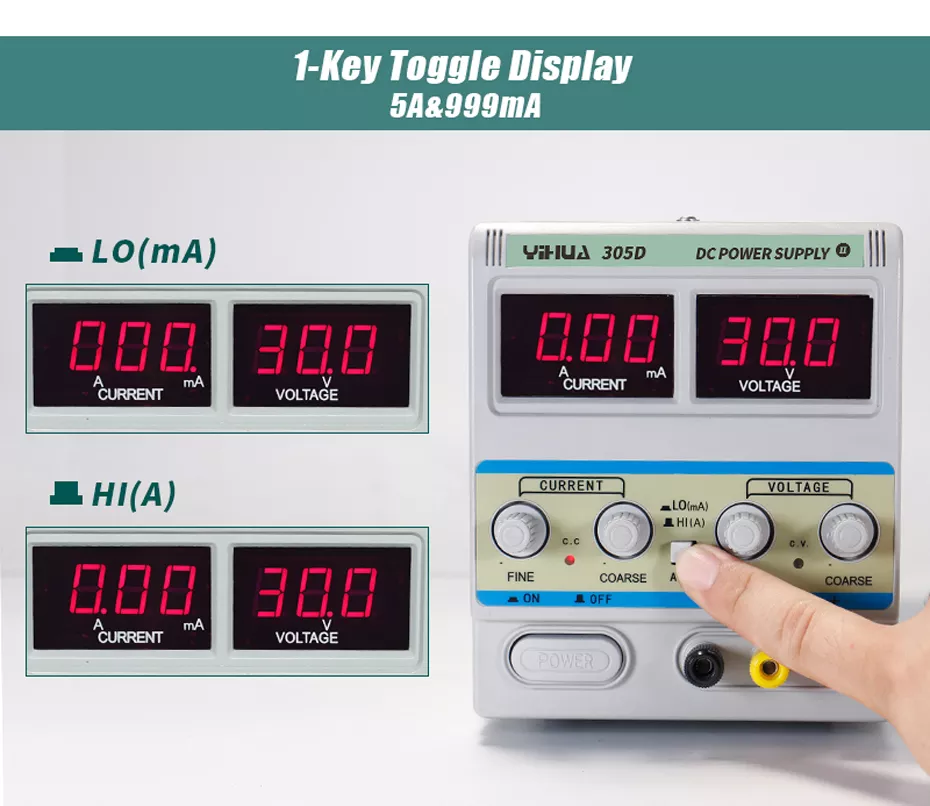

  • Current mA / A conversion display.
  • Short circuit protection.
  • Overloading and current protection.
  • CE Approved.
  • 220-240V/AC With UK Plug.

Application:

  • Products Related to Auto
  • Products Related to Electron
  • Products Related to Computer
  • Research Institutions
  • Educational Institutions can use it like a research equipment.

Characteristics:

  • High quality and reliability
  • Clear digital LED displays
  • Operation in voltage (CV) or current (CC) stabilization mode
    Protection against short circuit and overload
  • Built-in fan
  • Thermal fan switch
  • Ability to work with a current limitation of 990mA (indications with an accuracy of 1mA) and 5A (indications with an accuracy of 10mA)

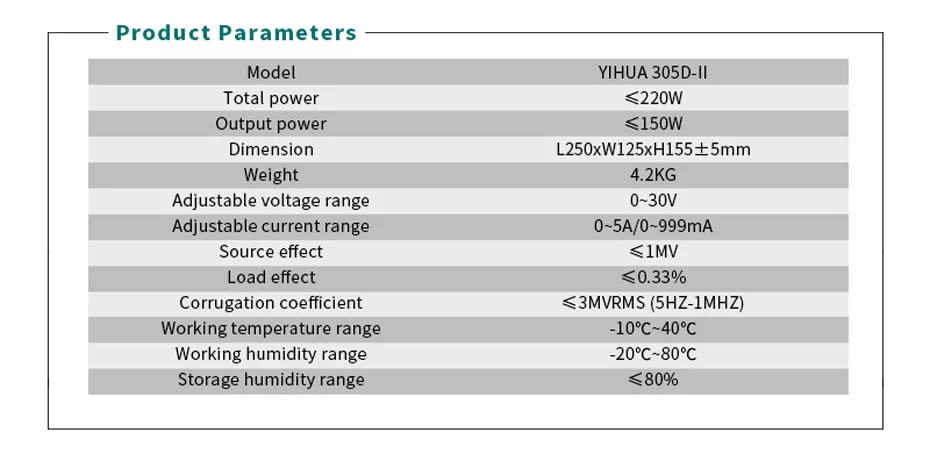

Technical parameters

  • Supply voltage 220V AC ± 10%, 50 / 60Hz
  • Working environment -10 ÷ 40 ° C, RH <90%
  • Storage environment -10 ÷ 40 ° C, RH <80%

Voltage stabilization

  • The output voltage is adjustable from 0 to 30V in a linear manner
  • Voltage stabilization factor 0.01% + 2mV
  • Load stabilization factor 0.01% + 2mV
  • Recovery time 100μs
  • Ripple and noise 0.5m Arms (effective value)

Current stabilization

  • The output current is adjustable from 0-5A in a linear way
  • Current stabilization factor 0.1% + 3mA
  • Load stabilization factor 0.2% + 3mA
  • Ripple and noise 2m Arms (effective value)

Package Includes:

  • 1 x YH305D DC Power Supply
  • 1 x Power Cable
  • 1 x User Manual
  • 1 x DC Cable Output Probe
SKU: 1663 Categories: , Tags: , , , , ,
  • Supply power: AC 220-240V, 50Hz/60Hz. Specially desiged for the UK and EU.
  • Working temperature: -10~40°C
  • Relative Humidity: <90%
  • Storage Conditions: -10~40°C
  • Relative Humidity: <80%
  • Stable Voltage: Yes
  • Output voltage between 0 and nominal value continuously adjustable
  • Voltage Stability: ≤0.01% +2mV
  • Load Stability: ≤ 0.01% +2mV
  • Recovery Time: ≤100µS
  • Ripple Noise: ≤1 MVRMS(RMS)
  • Temperature Coefficient: ≤ 200PPM/°C
  • Stable Current: Yes
  • Output current between 0 and nominal value continuously adjustable
  • Power Stability: 0.1% + 3mA
  • Load Stability: 0.2% + 3mA
  • Ripple Noise: ≤2mArms(RMS)
  • Product weight：4.6kg/pc

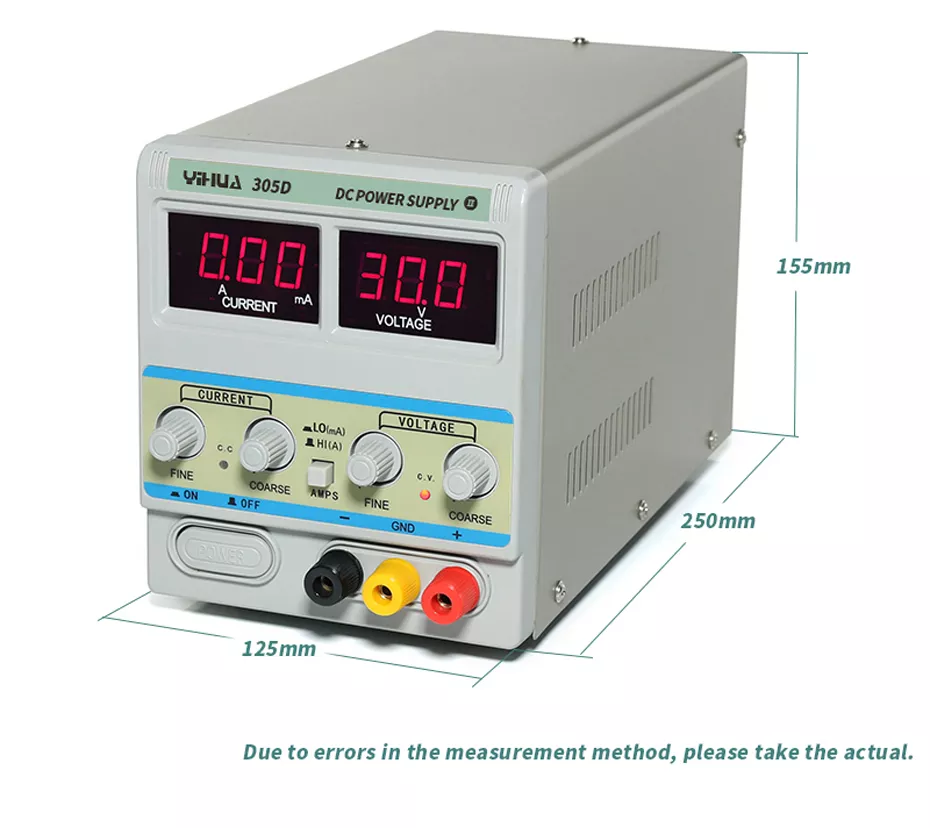

  • Size：13*25.5*15cm
