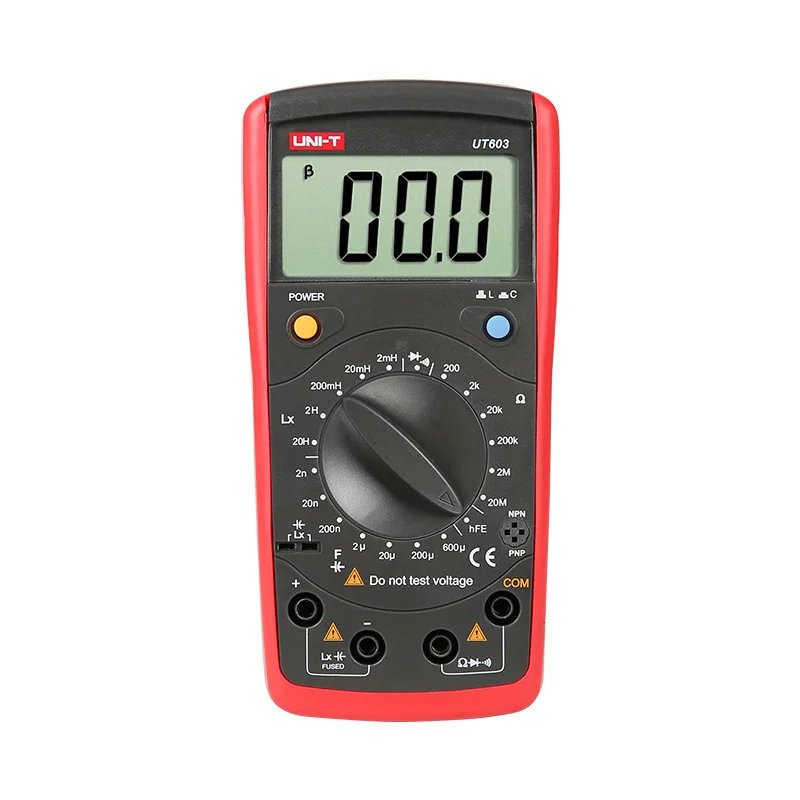

UNI-T UT603 LCR Meter Digital Multimeter
UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters. UT603 model has these all specs and available online in Pakistan.
Availability:
In stock
₨ 11,500
In stock
UNI-T UT603 LCR Meter Digital UT600 Series Digital Inductance Capacitance Meter Multimeter
FEATURES:
- Display Count: 1999
- Manual Range
- Diode
- Transistor
- Low Battery Indication
- Resistance
- Capacitance
- Inductance
- Continuity test (with buzzer)
- Diode test
- Transistor test
SPECIFICATION:
- Brand: UNI-T
- Model: UT603
- Resistance (Ω): 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(0.8%+1)
- Capacitance (C): 2nF/20nF/200nF/2uF/20uF/200uF/600uF ±(1%+5)
- Inductance (H): 2mH/20mH/200mH/2H/20H ±(2%+8)
General Characteristic:
- Power: 1 x 9V Battery(6F22)
- Product Net Weight: 312g
- Product Size: 172mm x 83mm x 38 mm
- LCD Size: 61mm x 32 mm
- Product Color: Red and Grey
- Package Size: 21.5 x 16 x 6cm / 8.5 x 6.2 x 2.2in
- Package Weight: 418g / 14.7oz

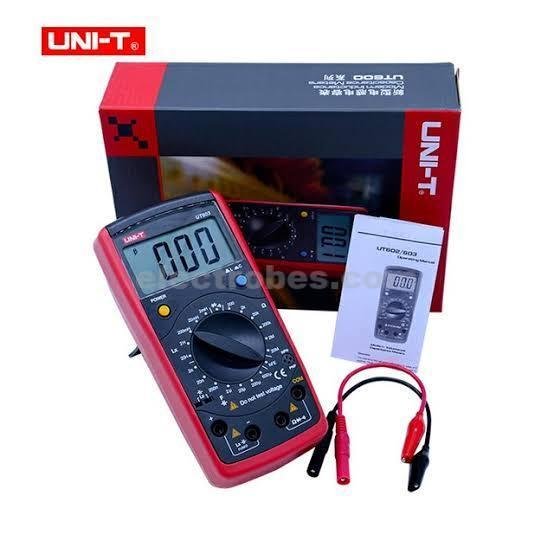

Package included:
- 1 x UNI-T UT603 Modern Inductance Capacitance Meter
- 2 x Allligator Clips(Red & black)
- 1 x English Manual
MANUALS:
Download UNI-T UT603 Digital Multimeter User Manual (English version)
| Manufacturer PN | UT603 |
| Size | 172 x 83 x 38mm |
| Weight | 484g |
| Resistance | Yes |
| Capacitance | Yes |
| Inductance | Yes |
| Frequency | No |
| Temperature | No |
| TRUE RMS | No |
| PC connection | No |
| Range | Manual |
| Manufacturer | UNI-T |
