10 outputs
Showing all 3 resultsSorted by latest
- Analog, Discrete Electronic Components, ICs
74LS90 7490 4-BIT Binary Decade BCD Counter IC
74LS90 Binary Counter Features
- It is used as a simple counter from 0 – 9.
- The IC has the ability to start from 0 and end at 9 automatically.
- IC can be used any TTL based device and microcontroller due to its TTL output.
- The IC has low power consumption.
- IC comes in multiple packages, PDSO, PDIP, and GDIP
- The IC has internal protection from clamp voltages.
SPECIFICATION
- The Power input range for IC is 4.75 to 5.25.
- The operating temperature range for IC is 0 to 70.
- The input voltages range for IC at HIGH state is 2.0 minimum and the LOW state is 0.7 maximum.
- IC draws output current at HIGH state is -0.4mA and for the LOW state is 8.0mA
- The internal clamp diode protection range is -1.5V.
More information is available in the datasheet:
SKU: 1582 - Analog, Discrete Electronic Components, ICs

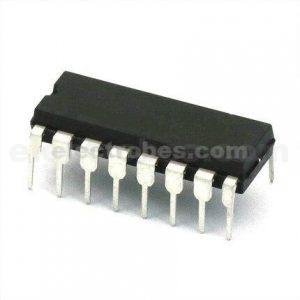

CD4033 CMOS Decade Counter Divider IC
- Logic Family / Base Number: CD4033
- Counter Type: Decade / Divider
- Clock Frequency: 16MHz
- Count Maximum: 10 Logic
- Case Style: DIP
No. of Pins: 16Pins - Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- Logic IC Family: CD4000
- Logic IC Base Number: 4033
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Product Range: CD4000 LOGIC Series
SKU: 0411 - Analog, Discrete Electronic Components, ICs

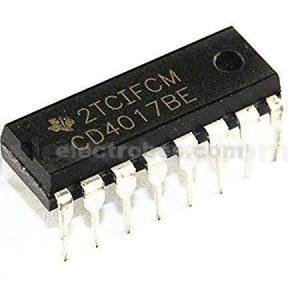

CD4017 Decade Counter Divider IC with 10 Decoded Outputs
- The supply voltage of this IC is 3V to 15V.
- It is compatible with TTL (Transistor-Transistor Logic).
- The clock speed or operational speed of CD4017 IC is 5 MHz
- 5-stage Divide-by-10 Johnson Counter with 10 Decoded Outputs and a Carry Bit
- Medium Speed up to 5MHz
- Operating Temperature to 85°C.
SKU: 0412
