AVR
Showing all 10 resultsSorted by latest
- Discrete Electronic Components, ICs, Microcontrollers

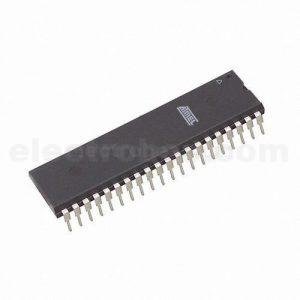

Atmel 8051 AT89C51 AVR 40 Pin DIP Microcontroller
Discrete Electronic Components, ICs, MicrocontrollersAtmel 8051 AT89C51 AVR 40 Pin DIP Microcontroller
- Compatible with MCS-51 Products
- 4K Bytes of In-System Reprogrammable Flash Memory
- Endurance: 1,000 Write/Erase Cycles
- Fully Static Operation: 0 Hz to 24 MHz
- Three-Level Program Memory Lock
- 128 x 8-Bit Internal RAM
- 32 Programmable I/O Lines
- Two 16-Bit Timer/Counters
- Six Interrupt Sources
- Programmable Serial Channel
- Low Power Idle and Power Down Modes
SKU: 1451 - Development Boards, Development tools, Discrete Electronic Components, Modules and Breakout Boards
8051 AVR MCU Minimum System Development Board Microcontroller Programmer
Development Boards, Development tools, Discrete Electronic Components, Modules and Breakout Boards8051 AVR MCU Minimum System Development Board Microcontroller Programmer
If you are learning microcontrollers or want to quickly develop embedded project based on standard 8051 core, than this board will help you quick start with the application by giving you access to everything required to run the AT89S52 microcontroller. With this board you can develop and prototype with any of 8051 40 pin microcontrollers. The board have inbuilt user buttons, crystal and status LED.
SKU: 1054 - Discrete Electronic Components, ICs, Microcontrollers
PIC12F675 – I/P 8-PIN PIC MCU Microcontroller
CPU 8-bit Total number of pins 8 Programmable pins 6 Communication Interface ICSP or In-Circuit Serial Programming Interface (13,14 Pins) [Can be used for programming this controller] ADC Feature 4 channels of 10-bit resolution Timer Feature One 8-bit counter, One 16-bit counter PWM channels Not available Analog Comparator Available-1 External Oscillator Up to 20MHz Internal Oscillator 4MHz Internal R-C Oscillator factory calibrated to ±1% Program memory / Flash memory 2Kbytes[100000 write/erase cycles] CPU Speed 1MIPS @ 1MHz RAM 64bytes EEPROM 128bytes Watchdog Timer Available and is featured with Independent Oscillator for Reliable Operation
Power Save Modes Available Operating Voltage 2.0V to 5.5V Maximum current to any I/O pin IN :25mA OUT : 25mA
Operating Temperature -40°C to +125°C Maximum current into VDD pin 250mA ADCs 4 x 10 bit ADC Resolution 10bit RAM Size 64 B Maximum Frequency 20MHz SKU: 1133
