HEX
Showing all 8 results
- Discrete Electronic Components, General ICs, ICs
74244 74LS244 /SN74LS244N / SN74LS244 3-State Output Octal Buffer or Line Driver IC
Discrete Electronic Components, General ICs, ICs74244 74LS244 /SN74LS244N / SN74LS244 3-State Output Octal Buffer or Line Driver IC
Applications
- The IC can be used for Noise Removing.
- It has wide use in Power meter and Power analyzers.
You can download this Datasheet for 74LS14 Hex Inverter Schmitt Trigger from the link given below:
SKU: 1683 - Discrete Electronic Components, General ICs, ICs
74LS14 7414 Hex Schmitt Trigger Inverter Logic IC
Applications
- The IC can be used for Noise Removing.
- It has wide use in Power meter and Power analyzers.
You can download this Datasheet for 74LS14 Hex Inverter Schmitt Trigger from the link given below:
SKU: 1581 - Analog, Discrete Electronic Components, ICs
CD4049 Hex Inverter Buffer IC
CD4049 is a general purpose Hex Inverter Buffer IC. CD4049 holds six inverter gates on a single package. The IC works on the voltage range from 3V to 15V excessive voltage more than 15V will destroy the IC. So provide input voltage in the range of 3V to 15V. The IC invert the binary input i-e if we apply 1 at input it will out 0 and vice versa
SKU: 0886 - Discrete Electronic Components, General ICs, ICs
74LS17 7417 HEX Buffer HD7417 High Voltage Open Collector IC
Discrete Electronic Components, General ICs, ICs74LS17 7417 HEX Buffer HD7417 High Voltage Open Collector IC
- Convert TTL Voltage Levels to MOS Levels
- High Voltage Open Collector
- High Sink-Current Capability Design
- HEX Buffer
- Open-Collector Driver for Indicator Lamps
- Inputs Fully Compatible With Most TTL Circuits
SKU: 0569 - Discrete Electronic Components, General ICs, ICs
74LS05 7405 HEX Inverter SN7405 Open Collector IC
- IC, HEX INVERTER, 74HC05
- Logic Type: Inverter
- Output Current: 5.2mA
- No. of Inputs: 1
- Supply Voltage Min: 2V
- Supply Voltage Max: 6V
- Logic Case Style: DIP
- No. of Pins: 14
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Packaging: Each
- Base Number: 74
- IC Generic Number: 74HC05
- Logic Function Number: 7405
- Logic IC Base Number: 7405
- Logic IC Family: HC
- Logic IC Function: Hex Inverters with Open Drain Outputs
- MSL: MSL 1 – Unlimited
- Operating Temperature Range: -40°C to +85°C
- Output Current Max: 4mA
- SVHC: No SVHC (16-Dec-2013)
- Supply Voltage: 5V
- Supply Voltage Range: 2V to 6V
SKU: 0566 - Discrete Electronic Components, ICs, Logic Gates

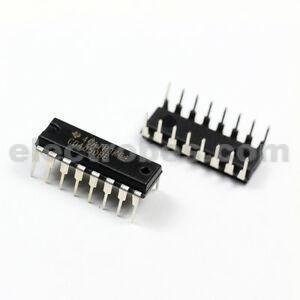

CD4050 CMOS Hex Inverting Buffer and Converter IC
• CD4049UB Inverting
• CD4050B Noninverting
• High Sink Current for Driving 2 TTL Loads
• High-to-Low Level Logic Conversion
• 100% Tested for Quiescent Current at 20 V
• Maximum Input Current of 1 μA at 18 V Over Full
Package Temperature Range; 100 nA at 18 V and
25°C
• 5-V, 10-V, and 15-V ParametricSKU: 0232 - Discrete Electronic Components, ICs, Logic Gates
74LS07 HEX Buffers/Drivers with Open-Collector Gate IC
Discrete Electronic Components, ICs, Logic Gates74LS07 HEX Buffers/Drivers with Open-Collector Gate IC
- Supply voltage range: +4.75V to +5.25V
- Maximum supply voltage: +7V
- Maximum current allowed to draw through each gate output: 8mA
- Totally lead free
- TTL outputs
- MaximumRise Time: 15ns
- Maximum Fall Time: 15ns
- Operating temperature:0°C to 70 °C
SKU: 0405 - Discrete Electronic Components, ICs, Logic Gates
74LS06 HEX Inverter Buffer Driver with open Collector Gate IC
Discrete Electronic Components, ICs, Logic Gates74LS06 HEX Inverter Buffer Driver with open Collector Gate IC
- Supply voltage range: +4.75V to +5.25V
- Maximum supply voltage: +7V
- Maximum current allowed to draw through each gate output: 8mA
- Totally lead free
- TTL outputs
- MaximumRise Time: 15ns
- Maximum Fall Time: 15ns
- Operating temperature:0°C to 70 °C
SKU: 0404
