Showing all 44 resultsSorted by latest
- Converters, Modules and Breakout Boards
XL6009E1 1.3-35V 3A Auto Step Up/Down Buck/Boost DC-DC Converter
Converters, Modules and Breakout BoardsXL6009E1 1.3-35V 3A Auto Step Up/Down Buck/Boost DC-DC Converter
XL6009 module is a non-isolated step-up boost voltage converter featuring adjustable output voltage, high efficiency. It converts input voltage of 5-32V DC to an output voltage of 4-38V DC.
SKU: 1779 - Converters, Modules and Breakout Boards
1200W 20A DC Converter Boost Step-up Power Supply Module in 8-60V Out 12-83V with Heat Sink 12V to 24V 48V
Converters, Modules and Breakout Boards1200W 20A DC Converter Boost Step-up Power Supply Module in 8-60V Out 12-83V with Heat Sink 12V to 24V 48V
- Input voltage :10-60V
- Output voltage: 12-83V (adjustable)
- Output Current: 12A
- Input Current: 20A
- The non-isolated step-up power conversion module
- Onboard LED illuminates when the voltage is applied to the module
- Equips Multi-turn Potentiometer.
SKU: 1771 - Discrete Electronic Components, FET’s & MOSFET’s, Transistors
IRFZ24N 17A 55V N-Channel Power MOSFET
- Type: n-channel
- Drain-to-Source Breakdown Voltage: 60 V
- Gate-to-Source Voltage, max: ±20 V
- Drain-Source On-State Resistance, max: 0.028 Ohm
- Continuous Drain Current: 17 A
- Total Gate Charge: 67 nC
- Power Dissipation: 82 W
- Package: TO-220AB
SKU: 1681 - Converters, Modules and Breakout Boards
LM2596 DC 6V-40V To 5V 3A Double USB Charge DC-DC Step-down Converter Module
-10%
Converters, Modules and Breakout BoardsLM2596 DC 6V-40V To 5V 3A Double USB Charge DC-DC Step-down Converter Module
Dual USB Output LM2596 Buck Converter is a step down module and has a dual 5V output for charging Phone, MP3, MP4, PSP, or powering Arduino, Raspberry Pi, etc. 100% Brand new and high quality! This module has short circuit protection DIY Mobile Power Supply with two 5V output USB ports with 3A output current.
SKU: 1611 - Converters, Modules and Breakout Boards
300W XL4016 DC-DC Max 9A Step Down Buck Converter 5-40V To 1.2-35V Adjustable Power Supply Module LED Driver
Converters, Modules and Breakout Boards300W XL4016 DC-DC Max 9A Step Down Buck Converter 5-40V To 1.2-35V Adjustable Power Supply Module LED Driver
This 300W 9A Buck Converter uses two XLSEMI XL4016 voltage regulators to reduce input voltages from 7 – 40 V to adjustable output voltages between 1 and 35 Volts. The large heat sinks enables high output currents of up to 9A max. and a limiting output of 300W. The second trimmer on the board is used to set up the current limit.
SKU: 1576 - Consumer Electronics, Educational & DIYs, Tools & Accessories
PBC159 Power Bank Housing with BMS, Digital Display, LED Torch, Battery Capacity Indication for 6x 18650 Batteries
Consumer Electronics, Educational & DIYs, Tools & AccessoriesPBC159 Power Bank Housing with BMS, Digital Display, LED Torch, Battery Capacity Indication for 6x 18650 Batteries
DIY Power bank housing shell with Digital LCD display PCB and night high intensity LED torch compartment for six cell to achieve more capacity, ever wonder to make your own high quality power bank instead purchasing from market low level fake capacities power bank, we have this power bank housing with intelligent PCB to charge battery with buck converter and boost converter to recharge your mobile phone with 2 USB ports and Digital LCD display backup status.
SKU: 1435 - Discrete Electronic Components, Educational & DIYs, Tools & Accessories
PBC096 Power Bank Housing PCB Board Torch LED
Discrete Electronic Components, Educational & DIYs, Tools & AccessoriesPBC096 Power Bank Housing PCB Board Torch LED
DIY Power bank housing shell with Digital LCD display PCB and night high intensity LED torch compartment for six cells to achieve more capacity, ever wonder to make your own high quality power bank instead purchasing from market low level fake capacities power bank, we have this power bank housing with intelligent PCB to charge battery with buck converter and boost converter to recharge your mobile phone with 2 USB ports and Digital LCD display backup status.
SKU: 1434 - Converters, Modules and Breakout Boards
XL6009 DC-DC Step Up Boost Converter 5 – 32V to 5 – 35V 10W (4A)
Converters, Modules and Breakout BoardsXL6009 DC-DC Step Up Boost Converter 5 – 32V to 5 – 35V 10W (4A)
XL6009 module is a non-isolated step-up boost voltage converter featuring adjustable output voltage, high efficiency. It converts input voltage of 5-32V DC to an output voltage of 4-38V DC.
SKU: 1078 - Converters, Modules and Breakout Boards
LM2596 Tripple / Three Variables Buck Adjustable Step Down Power Supply Module DC-DC Converter
Converters, Modules and Breakout BoardsLM2596 Tripple / Three Variables Buck Adjustable Step Down Power Supply Module DC-DC Converter
- Input voltage: 4-35V
- Output Voltage: 1.5-35V (adjustable)
- Output current: rated current 2A, maximum 3A (heat sink required)
- Conversion efficiency: Up to 92% (the higher the voltage, the higher the efficiency)
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous Rectification
- Module Properties: Non-isolated step-down module (buck)
- Short circuit protection: current limiting
- Operating temperature: Industrial grade (-40 ℃ to +85 ℃) (output power 10W or less)
- Full load temperature rise: 40 ℃
- Load regulation: ± 0.5%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Output ripple:
- Input 12V Output 5V 3A 60mV (MAX)
- Input 24V Output 12V 3A 120mV (MAX)
SKU: 0721 - Accessories, Adapters, Batteries & Chargers
9V 1000mA / 1 Amp 9W SMPS Power Adapter
- Stabilized Output, low ripple & low interference
- Ideal for CCTV Cameras / Routers / Modems / Cordless Phones / Set Top Boxes / Wireless Devices / POS Machines etc.
- Plug Type – 2 Pin or 3 Pin as per availability
- 5.5mm DC Pin
SKU: 0780 - Modules and Breakout Boards, Voltage, Current & Power
12v 400ma 4w Ac-Dc Step Down Isolated Switching Power Supply Module
-10%
Modules and Breakout Boards, Voltage, Current & Power12v 400ma 4w Ac-Dc Step Down Isolated Switching Power Supply Module
- Working Temperature: -20 ~ 60℃
- Relative Humidity: 40 ~ 90%R
- Input Voltage Range: 85~ 265v
- Input Current:
- 0.0273A(AC110V)
- 0.014A(AC220V)
- Input Inrush Current: 20A
- Output Voltage Range: 11.80~12.1V 0~500mA
- Output Power: 0 ~6.0 W
- Output Efficiency: 80%
- Input Voltage Of AC: 85 ~ 265v 50/60 HZ
- Output Voltage DC: 12V (±0.1V)
- Output Current: 450MA
- Power: 5W
- Size: 3 x 2 x 1.8 cm
SKU: 0796 - Discrete Electronic Components, Surface Mount Transistors, Transistors
MJE13003 Power Switch Transistor NPN SMD SOT-252
Discrete Electronic Components, Surface Mount Transistors, TransistorsMJE13003 Power Switch Transistor NPN SMD SOT-252
- Product Category: Bipolar Transistors – BJT
- Mounting Style: SOT-252
- Package/Case: SOT-252
- Transistor Polarity: NPN
- Configuration: Single
- Collector- Emitter Voltage VCEO Max: 400 V
- Collector- Base Voltage VCBO: 100 V
- Emitter- Base Voltage VEBO: 5 V
- Collector-Emitter Saturation Voltage: 0.5 V
- Maximum DC Collector Current: 1.5 A
- Pd – Power Dissipation: 1.4 W
- Gain Bandwidth Product fT: 3 MHz
- Minimum Operating Temperature: – 65 C
- Maximum Operating Temperature: + 150 C
- Continuous Collector Current: 1.5 A
- DC Collector/Base Gain hFE Min: 8
- Product Type: BJTs – Bipolar Transistors
- Subcategory: Transistors
SKU: 0446 - DIP Transistors, Discrete Electronic Components, Transistors
BD137 1.5 A 60V NPN Bipolar Power Transistor
DIP Transistors, Discrete Electronic Components, TransistorsBD137 1.5 A 60V NPN Bipolar Power Transistor
- Type – NPN
- Collector-Emitter Voltage: 60 V
- Collector-Base Voltage: 60 V
- Emitter-Base Voltage: 5 V
- Collector Current: 1.5 A
- Collector Dissipation – 12.5 W
- DC Current Gain (hfe) – 40 to 250
- Operating and Storage Junction Temperature Range -55 to +150 °C
- Package – TO-126
SKU: 0447 - DIP Transistors, Discrete Electronic Components, Transistors
TIP41C 100V 6A NPN General Purpose Power Silicon Transistor(Original)
DIP Transistors, Discrete Electronic Components, TransistorsTIP41C 100V 6A NPN General Purpose Power Silicon Transistor(Original)
- NPN medium power transistor
- Collector-Emitter Saturation Voltage – VCE(sat) = 1.5 V
- Collector-Emitter voltage = 40V
- I C min: 0.5A
- I C max: 6A
- I C peak max: 10 A (t p <5ms)
- I B max: 3A
- P TOT : 65W
- V CEO : 100V, V CBO : 100V, V EBO : 5V
- h FE : 15 to 75 (@ I C = 3A, V CE = 4V )
- High suicheo speed
- Complementary: TIP42C
- Encapsulated: TO-220
SKU: 0226 - Discrete Electronic Components, ICs, Motor Driver
MC33153 Single IGBT Motor Driver IC
• High Current Output Stage: 1.0 A Source/2.0 A Sink
• Protection Circuits for Both Conventional and Sense IGBTs
• Programmable Fault Blanking Time
• Protection against Overcurrent and Short Circuit
• Undervoltage Lockout Optimized for IGBT’s
• Negative Gate Drive Capability
• Cost Effectively Drives Power MOSFETs and Bipolar TransistorsSKU: 0856 - Discrete Electronic Components, FET’s & MOSFET’s, Transistors

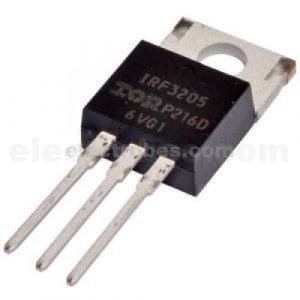

IRFP3205 IRF3205 N-Channel FET MOSFET
Family IRF3205 Category Power MOSFET Configuration Single Maximum Continuous Forward Current 110A Maximum Power Dissipation 200000mW Number of Elements per Chip 1 Peak Forward Voltage 55VDC Output Power 200W Peak Non-Repetitive Surge Current 390A Peak Reverse Current 25uA Channel Mode N-Channel Enhancement Peak Reverse Recovery Time 101ns Channel Type N Peak Reverse Repetitive Voltage 55VDC Maximum Continuous Drain Current 110A Maximum Drain Source Resistance 0.008 Ohms@10V Maximum Drain Source Voltage 55V Maximum Gate Source Voltage ±20V Typical Fall Time 65ns Typical Gate Charge @ Vgs 146nC @10V Typical Input Capacitance @ Vds 3247pF@25V Typical Rise Time 101ns Typical Turn-Off Delay Time 50ns Typical Turn-On Delay Time 14ns Minimum Operating Temperature -55°C Maximum Operating Temperature 175°C Mounting Through Hole Packaging Bulk Pin_Count 3 Supplier Package TO-220AB Product Width 4.69mm Product Height 8.77mm Product Length 10.54mm Product Type MOSFET SKU: 0854 - DIP Transistors, Discrete Electronic Components, Transistors
TIP42C Bipolar PNP Transistor
Power Transistors are transistors which can handle a lot more power in compared to BJTs. Similar to BJTs, the current flow between the collector and the emitter of is controlled by the current flow through the base. TIP42C is a PNP type semiconductor Bipolar high power Transistor. Collector-base voltage of 40V and Collector current of 6A. This type of semi-conductors are available online in Pakistan at electrobes.
SKU: 0557 - Converters, Modules and Breakout Boards
LM2596 Buck Adjustable Step Down Power Supply Module DC-DC Converter
Converters, Modules and Breakout BoardsLM2596 Buck Adjustable Step Down Power Supply Module DC-DC Converter
LM2596 DC-DC Buck Converter Step Down Module Power Supply is a step-down buck converter switching regulator. LM2596 Buck is capable of driving a 3-A load with excellent line and load regulation and fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
SKU: 0158
