10.1 Inch HMI LCD Display Touch Panel DMG10600C101_04WTC (Commercial grade)

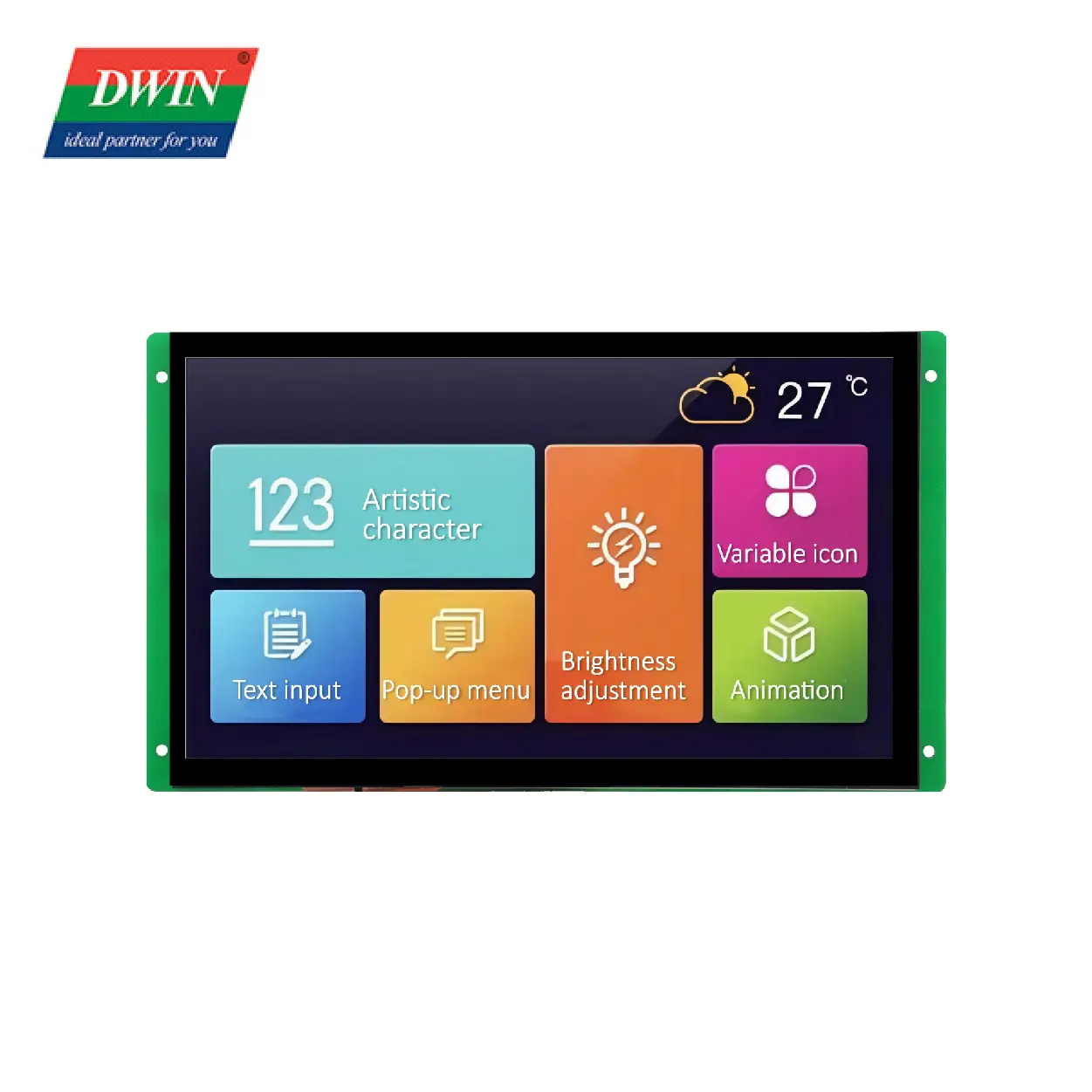

The 10.1 inch HMI LCD Touch Display is a Seamless Human Machine Interface (HMI) display module solution that provides a control and visualization interface for any Raspberry Pi and Arduino kits.
Availability:
In stock
₨ 20,000
In stock

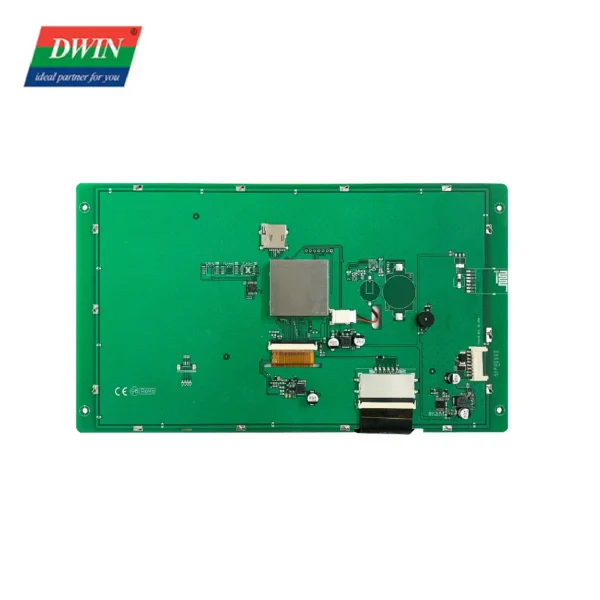

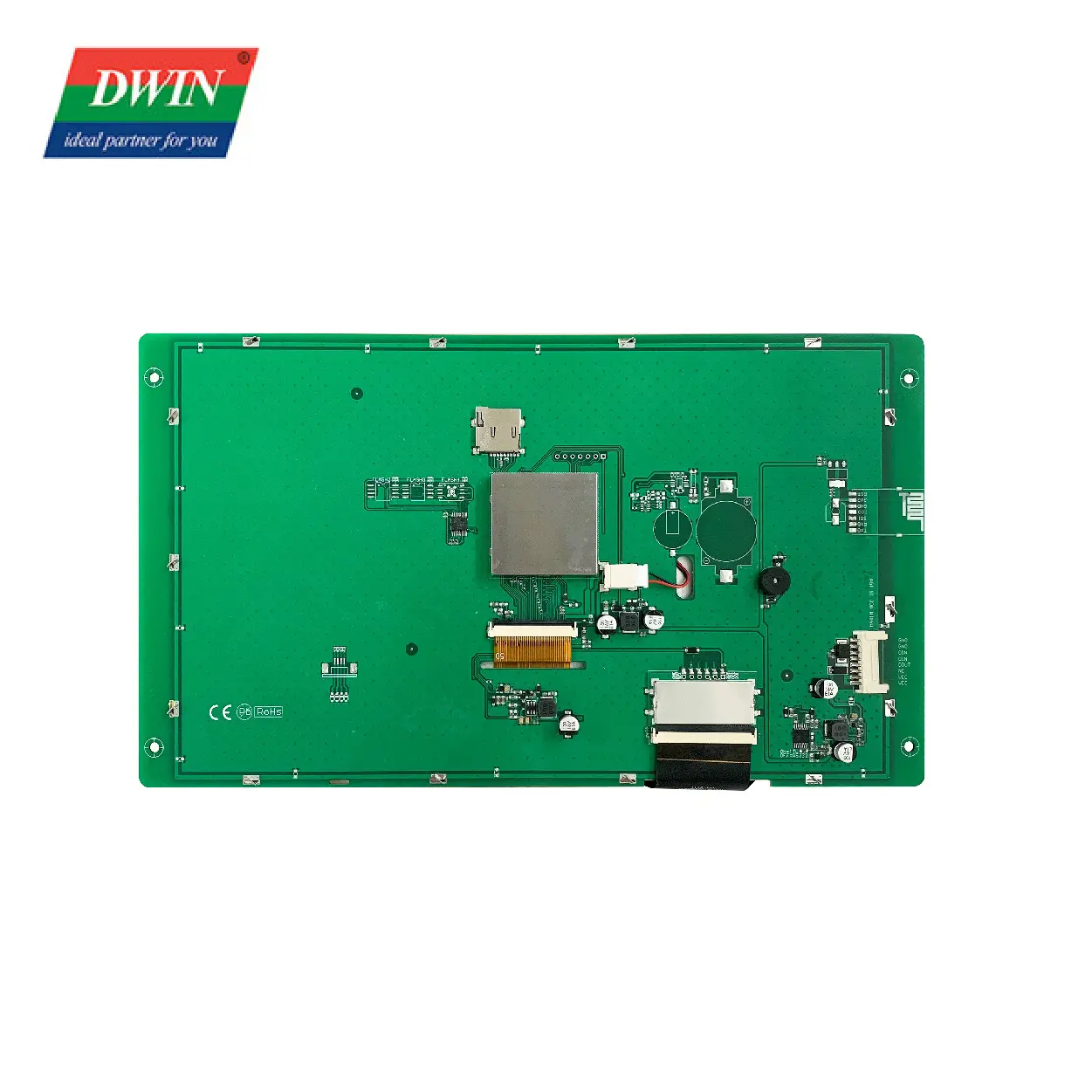

DWIN 10.1 Inch HMI LCD Display Capacitive Touch Panel DMG10600C101_04WTC (Commercial grade) LCD Screen
Features:

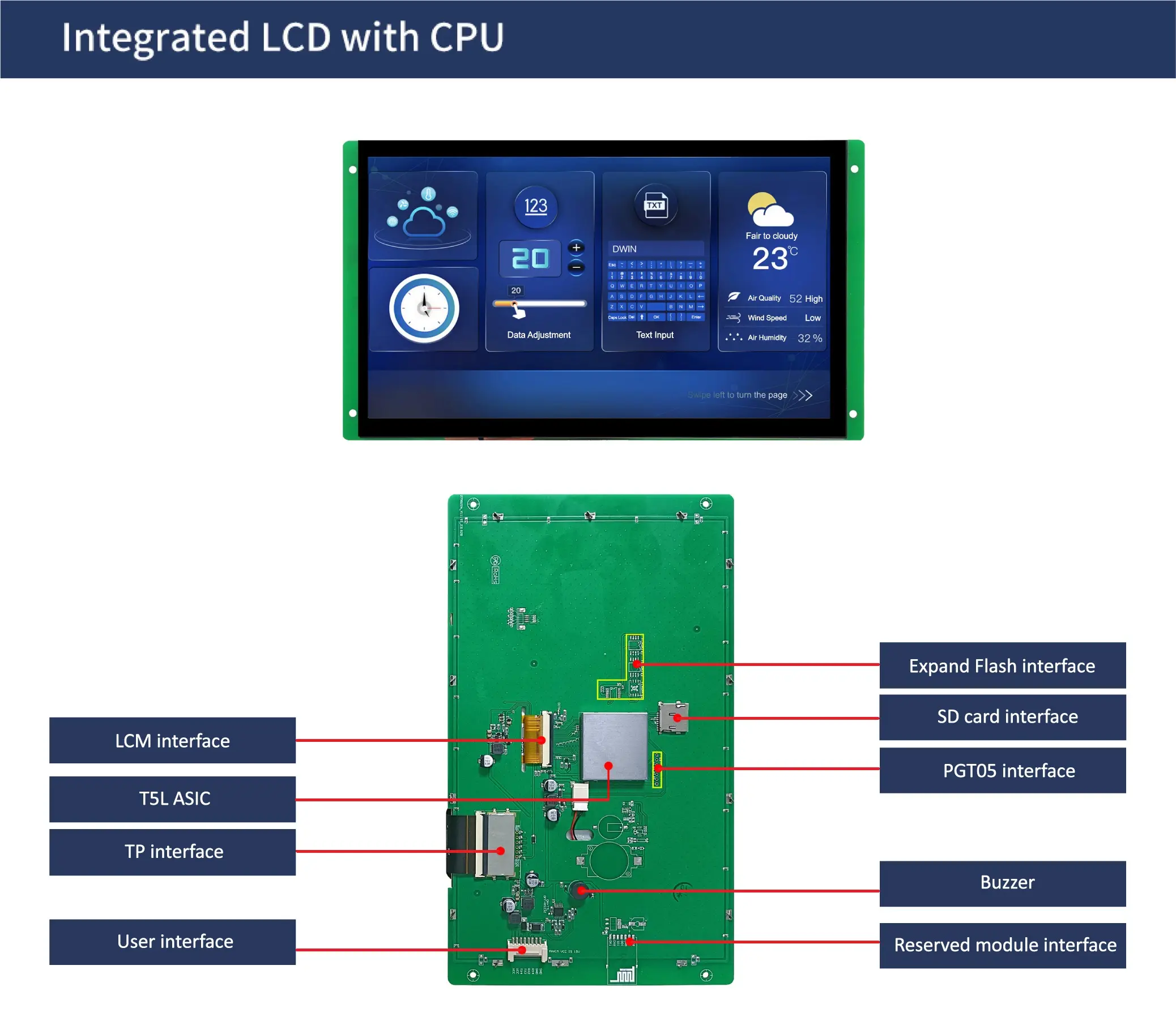

- Based on self-designed T5L ASIC, 10.1 Inches, 16.7M Colors, 1024*600 Pixel TFT LCD;
- 8Pin_2.0mm connection wire, TTL/RS232 available;
- Download via SD card or on-line serial port;
- Dual Development System: DGUS II/ TA(Instruction set);
- No coding skills required, easy-to-use DWIN DGUS V7.6 GUIs Development;
- Widely used with Arduino, STM32, Microchip, ESP8266 and so on .
Package Includes:
1 x 10.1 inch HMI display screen
Pin description of 10.1 inch HMI display:
| Properties | Parameters |
| Color | 16.7M(16777216)colors |
| Panel Type | IPS |
| Viewing Angle | 85°/85°/85°/85°(L/R/U/D) |
| Active Area (A.A.) | 222.72mm (W)*125.28mm (H) |
| Resolution | 1024*600 Pixel |
| Backlight | LED |
| Brightness | 200nit |
| Power Voltage | 8~23V |
| Operation Current | VCC = +12V, Backlight on (430 mA) |
| VCC = +12V, Backlight off (160 mA) | |
| Recommended power supply: 12V 1A DC | |
