100A SCT-013-000 Non-invasive AC Current Clamp Sensor

Compare
Availability:

In stock

 1,200

In stock

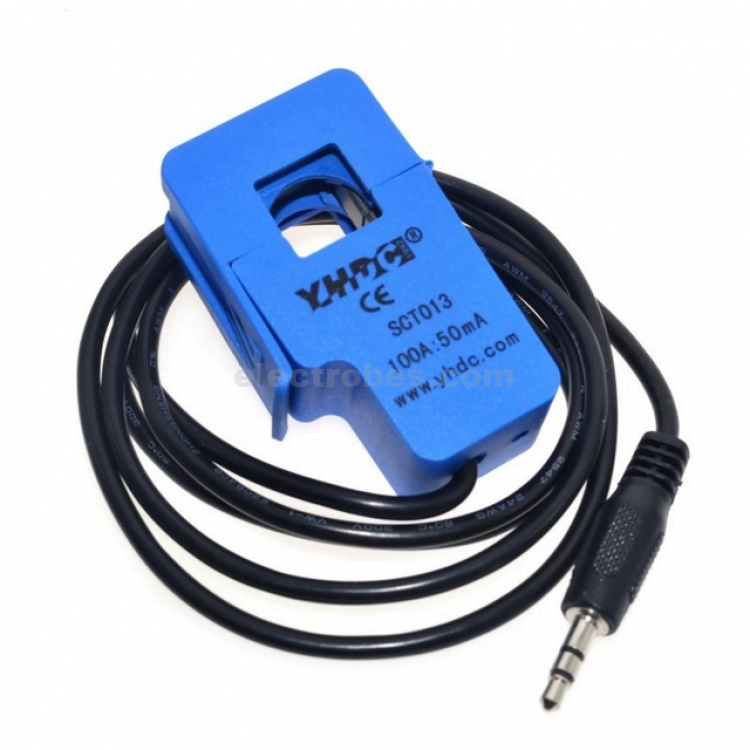

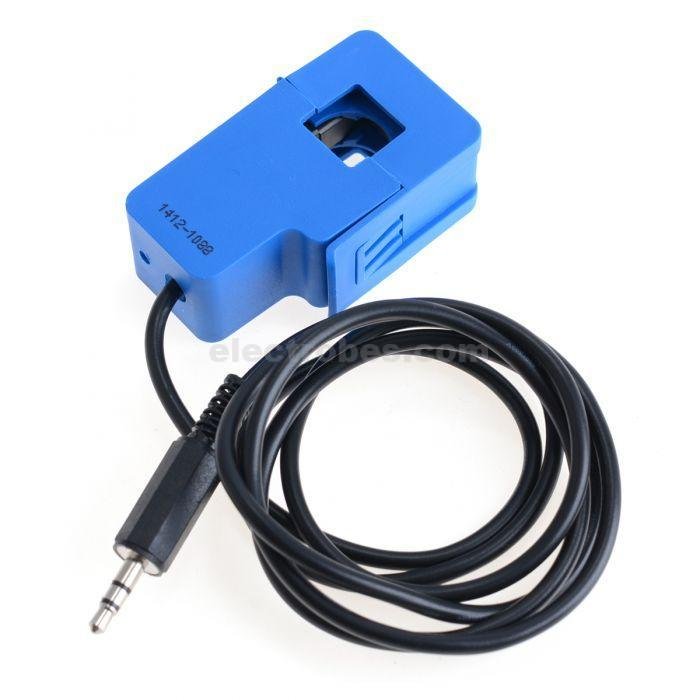

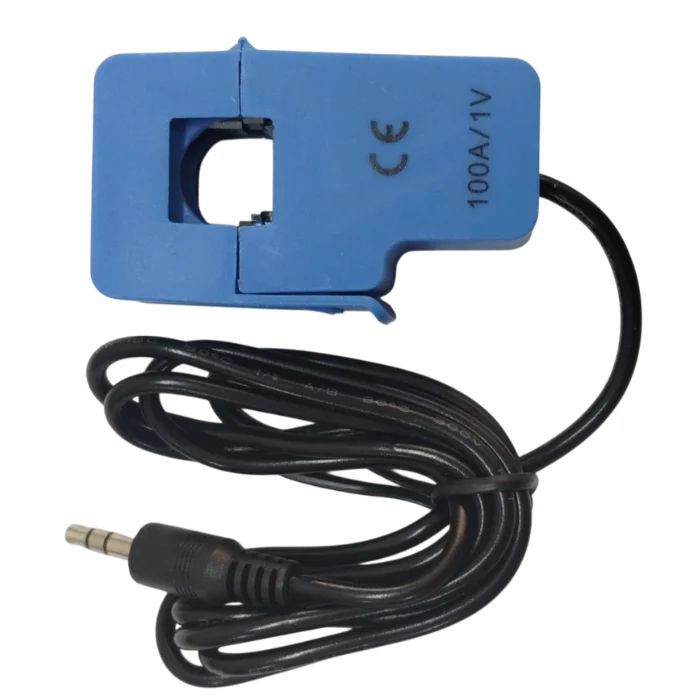

100A SCT-013-000 Non-invasive AC Current Clamp Sensor

This non-invasive current sensor clamped around the supply line can measure a load up to 100 Amps, and allow you to calculate how much current pass through it. It can be useful for building your own energy monitor or for building an over-current protection device for an AC load. This current clamp can be used to detect a current of up to 100A. Simply clip it around the current source that you wish to measure and it will produce a (very) small AC voltage proportional to the current. The cable is terminated on one end with a standard 3.5mm jack (like a headphone jack).

Use this to build your own energy monitor and keep your power usage down, or use it to to build an over-current protection device for an AC load. See the link below for an example project. Check out the datasheet for the pinout of the 3.5mm jack.

What is CT sensors:

Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).

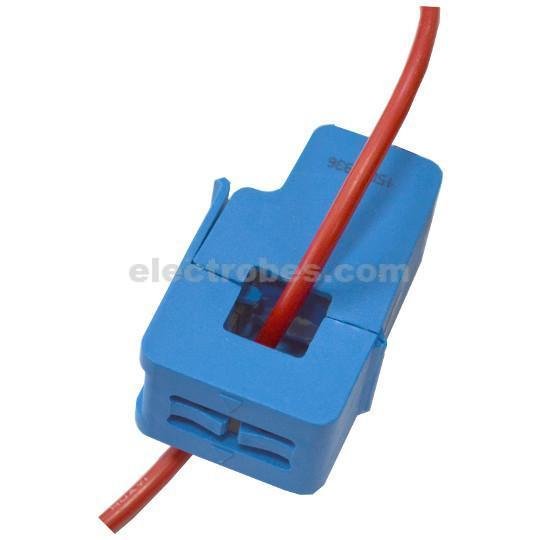

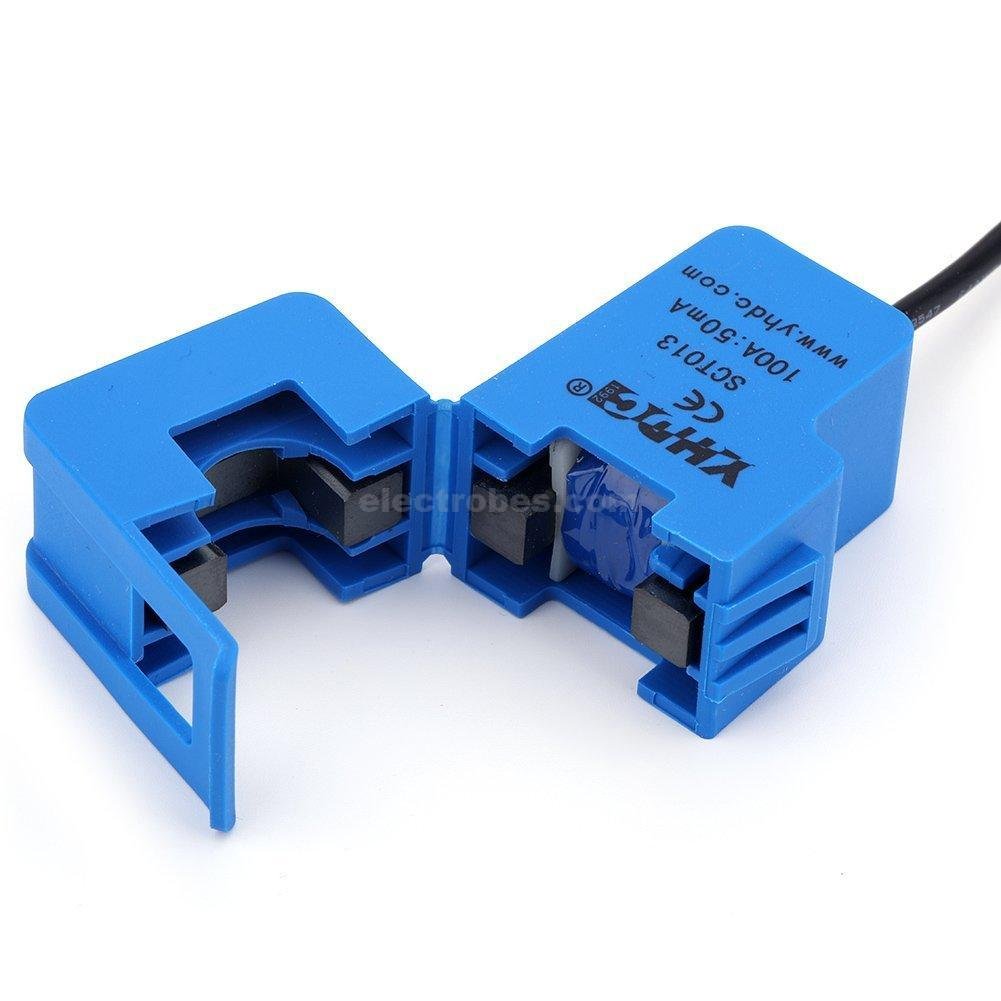

The split core type such as the CT in the picture above, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.

Applications:

  • Suitable for the current measuring
  • Monitoring and protection of AC motor
  • Lighting equipment
  • Air compressor

Package Includes:

1 x 100A SCT-013-000 Non-invasive AC Current Clamp Sensor

30A 50A 100A SCT-013-000 Non-invasive AC Current Clamp Sensor at best price online in islamabad rawalpindi lahore karachi multan sukkur skardu peshawar taxila wah gujranwala faisalabad hyderabad quetta pakistan 100A SCT-013-000 Non-invasive AC Current Clamp Sensor at best price online in islamabad rawalpindi lahore karachi multan sukkur skardu peshawar taxila wah gujranwala faisalabad hyderabad quetta pakistan 30A 50A 100A SCT-013-000 Non-invasive AC Current Clamp Sensor at best price online in islamabad rawalpindi lahore karachi multan sukkur skardu peshawar taxila wah gujranwala faisalabad hyderabad quetta pakistan

  • Model: SCT-013-000
  • Type: Non-invasive current transformer
  •  Core Material: Ferrite
  •  Input Current: 0~100A AC
  •  Output Mode: 0~50mA
  • Leading Wire in Length: 1m
  •  Cable Jack: 3.5mm (like a headphone jack)
  • Turns Ratio: 1: 1800
  • Work Voltage: 660 v
  • Resistance Grade: Grade B
  •  Max Sampling Resistance: 10 Ω
  • Linearity: ±3%
  • Accurancy: ±1%
  • Work Frequency: 50-1 KHz
  • Work Temperature: -25˚C ~ 70˚C
  • Reference project: Open Energy Monitor
  • Dielectric Strength: 6000V AC/1min
  • Opening Size: 0.51 * 0.51inch / 13 x 13mm
  • Two Form of Output: current output or voltage output (a burden resistor needed to add);
  • Mechanical strength: opening and closing times, no less than 1000 times (20 ℃)
  • High Quality and Safe: Meet the requirement of flame-retardant characteristics (UL94-V0)
