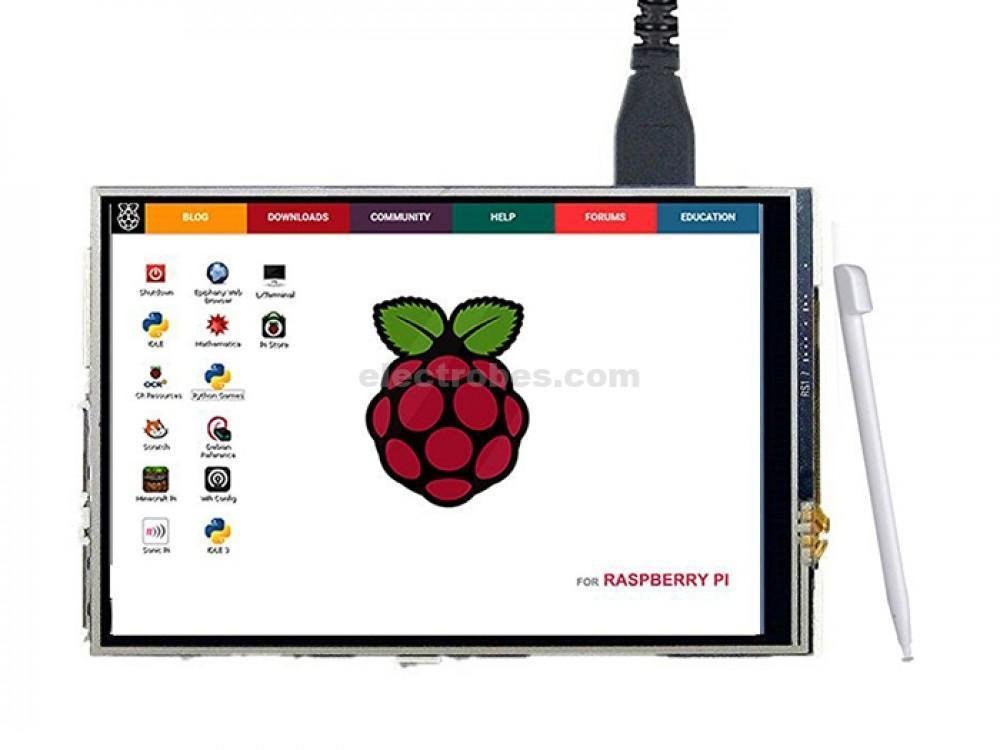

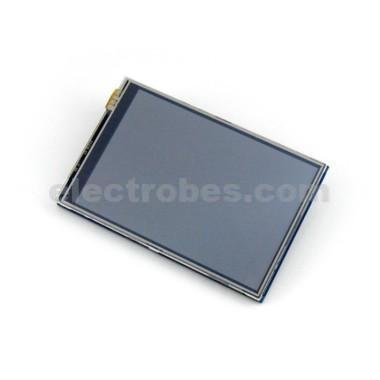

3.5 inch TFT touch Screen LCD for Raspberry Pi

This 3.5 inch TFT LCD Display module has a resolution of 320 x 480 pixels.  The module includes Resistive Screen Panel. SSD1289 is used to control LCD and the panel is controlled by XPT2046.The module can be interfaced with any MCU like STM32, AVR and 8051 using the 40 pins breakout header that Include panel interface. The module can be driven in 16bit data interface mode.

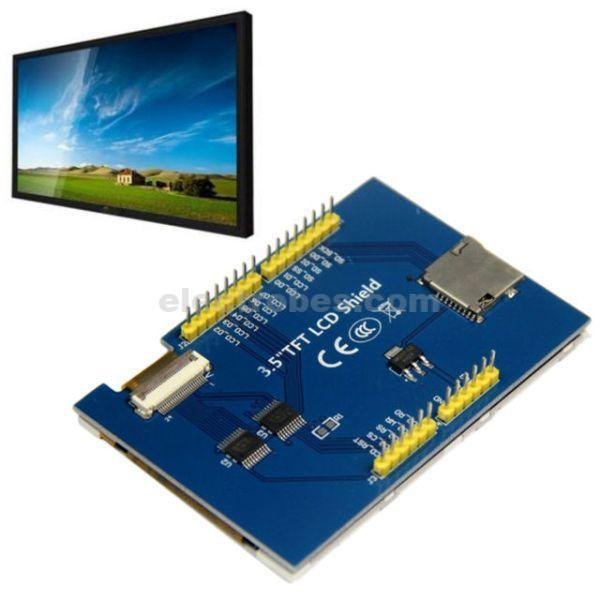

This LCD Module can be directly plugged into Arduino board using ‘TFT LCD Adapter Shield for Arduino’ shield. The LCD on this module has a has  wide viewing angle and a decent contrast ratio.

1. Display Type: LCD TFT
2. Display Controller: SSD1289
3. Screen Type: Not touch panel support
4. Screen Controller: XPT2046
5. SPI interface
6. Backlight: LED Backlight with hardware or software control
7. Data Interface: 16 bit interface for microcontrollers
8. Interface Header: 40 pin Interface

1. Digital Photo Frame （DPF）
2. Video terminals
3. Instrumentation
4. GPS
5. Game consoles
6. Video phones and Portable VCD, DVD

Package Contains:

1x 3.5 TFT LCD screen HD 320X480
