DAKEFPV STM32H743 ARM Flight Controller Board for FPV Drones
STM32H743 ARM Microcontroller: Provides processing capability for compatible flight-control firmware.
Compact Design: Suitable for space-conscious FPV drone installations.
Multiple Connection Pads: Supports connections to compatible drone peripherals.
Stacked PCB Construction: Two-board arrangement for compact component integration.
Clearly Labeled Terminals: Helps simplify wiring and soldering.
Secure Mounting: Four mounting points with spacers for board installation.
FPV Compatibility: Designed for use in suitable FPV drone electronics systems.
- DIY Friendly: Suitable for drone assembly, repairs, and custom electronics projects.
SKU: 1535-1
DAKEFPV STM32H743 ARM Flight Controller Board for FPV Drones

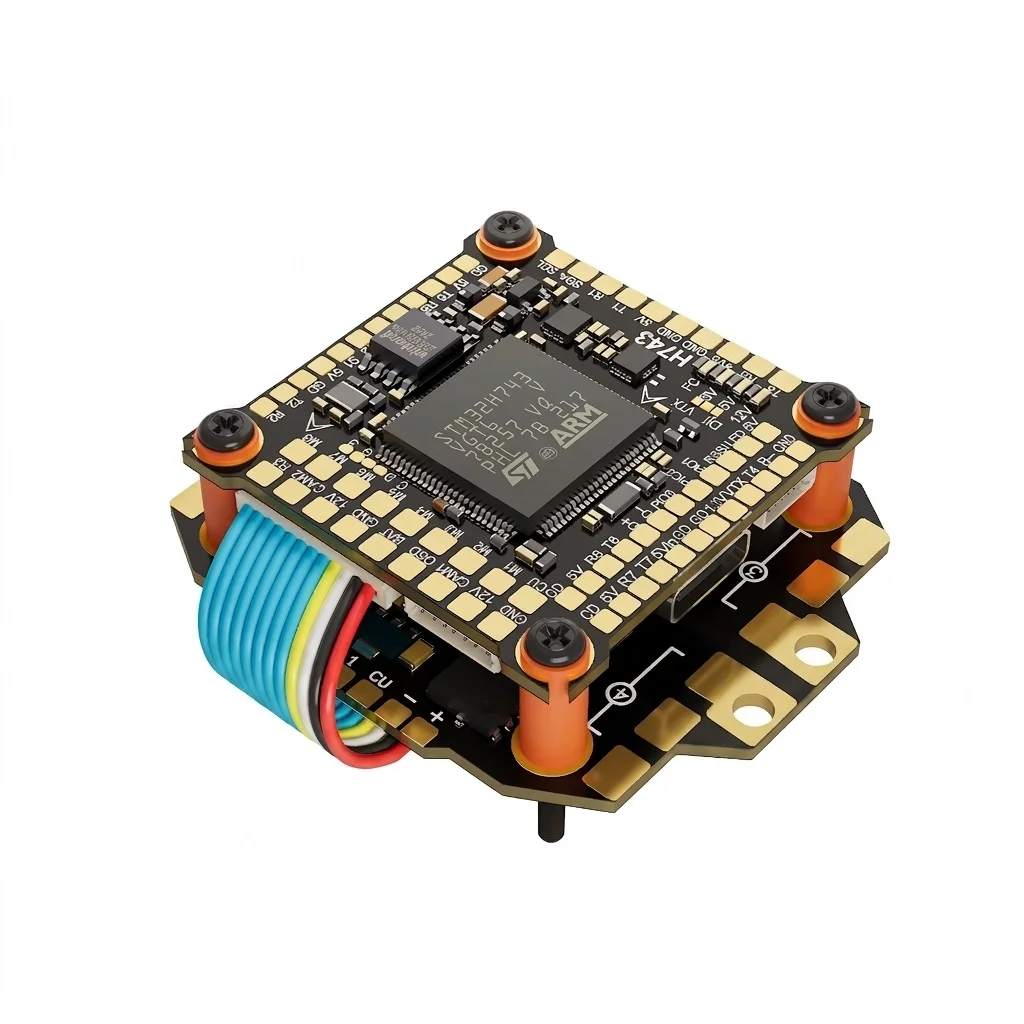

DAKEFPV Flight Controller Board is a compact electronic control board designed for FPV drones and multirotor aircraft. It features an STM32H743 ARM-based microcontroller and multiple connection pads for integrating essential flight-control components, including motors, receivers, sensors, and other compatible FPV electronics.

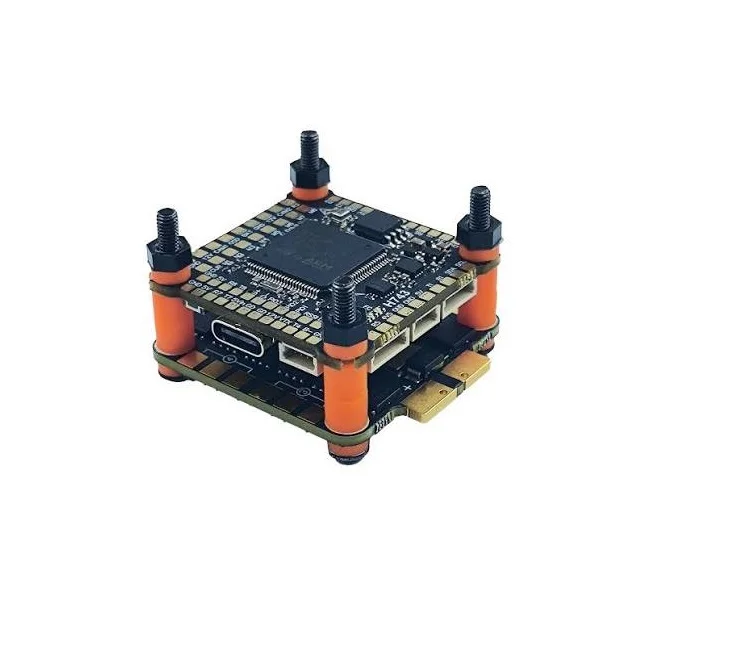

Its compact PCB design, lightweight construction, and stacked-board configuration make it suitable for custom drone builds, racing drones, freestyle FPV drones, and DIY UAV projects. The board includes mounting holes with vibration-isolating spacers and clearly labeled solder pads to support installation and wiring.
Features:
- High-performance flight controller for FPV drones The DAKEFPV H743 SLIM V4 is engineered for advanced FPV RC model multicopters, delivering smooth flight control and reliable performance with support for BF, INAV, AP, PX4 firmware.
- Advanced STM32H743 processor Powered by the STM32H743 chip, this flight controller offers high-speed processing and low latency, ideal for precision flying and demanding FPV racing applications.
- Dual ICM42688P sensors for enhanced stability Equipped with dual ICM42688P sensors, the controller ensures accurate motion tracking and improved gyro performance for stable and responsive flight dynamics.
- Wide voltage compatibility: 3-12S Supports a broad voltage range of 3-12S, making it suitable for various battery configurations and ensuring compatibility with high-performance FPV setups.
Compact size and lightweight design Measuring 30 x 30 mm and made from composite material, the controller is compact and lightweight, ideal for space-constrained builds without sacrificing durability.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | DAKEFPV |
| Product Type | FPV Flight Controller / Control Board |
| Main Processor | STM32 ARM microcontroller (exact model unconfirmed) |
| PCB Configuration | Stacked two-board assembly |
| Board Material | Electronic PCB |
| Mounting | Four-corner mounting points |
| Connections | Labeled solder pads and peripheral connections |
| Application | FPV drones, multirotors, DIY UAVs |
| Installation | Soldering and screw mounting |
| Firmware Compatibility | Depends on the exact board model |
| Operating Voltage | Not confirmed |
| Dimensions | Not confirmed |

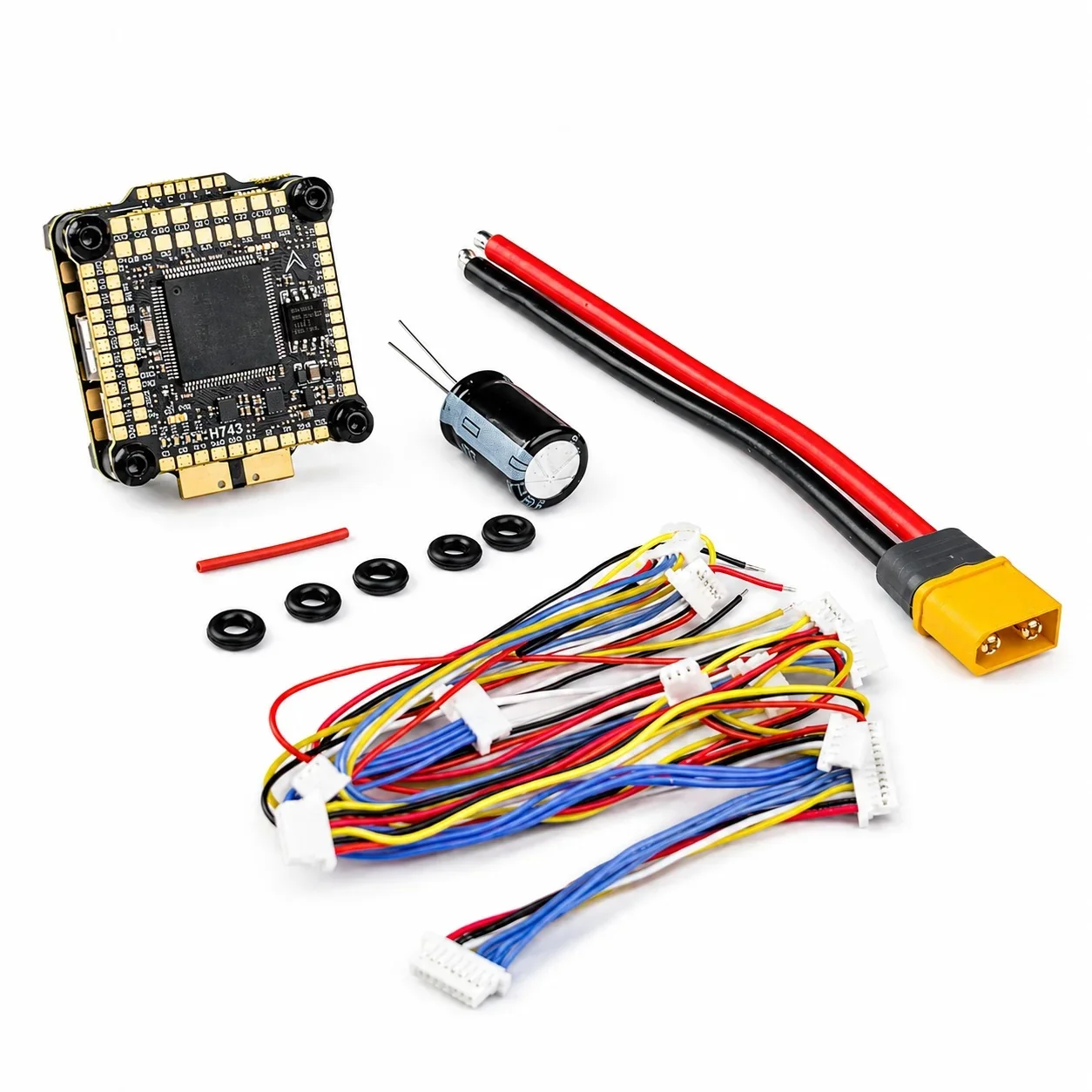

What’s in the box
- Flight Controller Board
- Mounting Hardware
- Connection Cables
- Usb Interface
- Processor (MCU): STM32H743 (32-bit, running at 480 MHz) [1]
- Gyroscope / IMU: Dual ICM42688P sensors.
- Barometer: Built-in BMP280 or SPL06 (depending on the specific sub-version)
- Onboard Flash (Blackbox): 16 MB high-speed flash
- OSD Chip: AT7456E
- UART Serial Ports: 8 groups of serial ports
- PWM / Motor Outputs: Up to 13x PWM outputs (12 motor outputs + 1 LED)
- Input Voltage: Supports 3S to 12S LiPo battery configurations (depending on variant)
- Onboard BEC Outputs:
- 3.3V @ 0.5A
- 5V @ 3A
- 12V @ 3A (GPIO-controlled for video/VTX)
- Digital FPV Compatibility: Direct plug-and-play interface supporting DJI O3, RunCam Link, Caddx Vista, and DJI Air Unit V1 without rewiring.
- Firmware Support: Betaflight (default), ArduPilot, and INAV
- Mounting Pattern: 30.5 x 30.5 mm (M4 holes)
- USB Interface: Type-C
