DC 12V Human Infrared Sensor Switch Light Sensor Infrared PIR Motion Sensor Switch 180 Degree

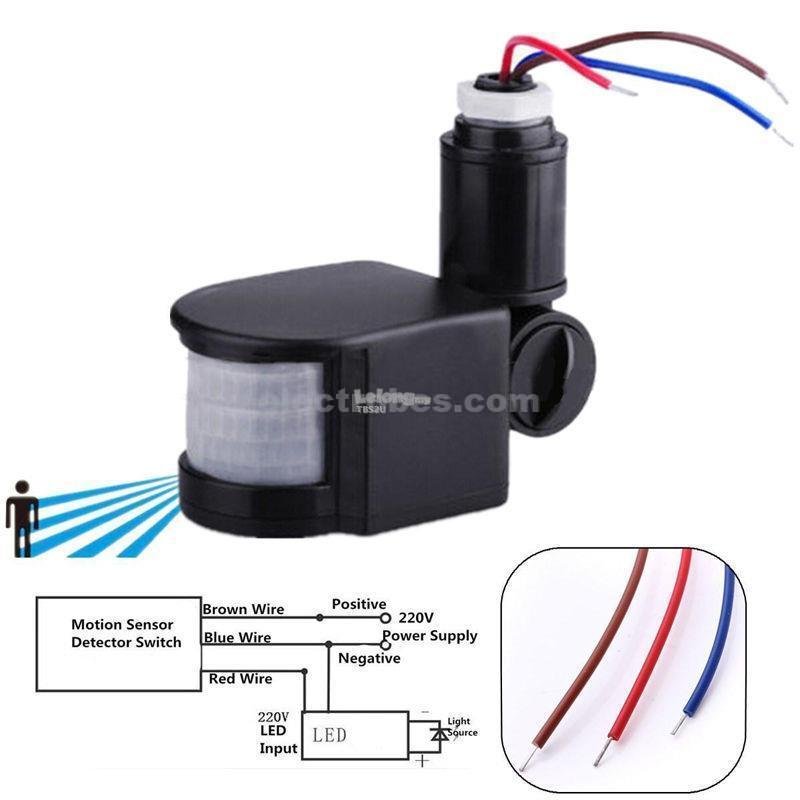

This is a 12V human infrared sensors, pyroelectric infrared technology, the use of industrial district-level chip, intelligent control, set energy saving, convenient and environmentally friendly one, very convenient. This module also comes in 220V AC variant.
Compare
Availability:

In stock

 980  1,150

In stock

180 Degree 12V Human Infrared Sensor Switch Light Sensor Monitoring Spotlights PIR Switch

This is a 12V human infrared sensors, pyroelectric infrared technology, the use of industrial district-level chip, intelligent control, set energy saving, convenient and environmentally friendly one, very convenient.

Features :

  • Built-human infrared sensor module, sensor module light effects, delay switch module.
  • load capacity, strong anti-jamming capability.
  • people into the sensing range, can be automatically opened, after leaving the automatic delay off,
  • can automatically identify day and night, and the external environment illuminance can freely choose the starting job,
  • Automatic work to do in the evening, during the day and closed. Users can adjust;
  • Light time is adjustable and can be adjusted by the user according to local conditions.

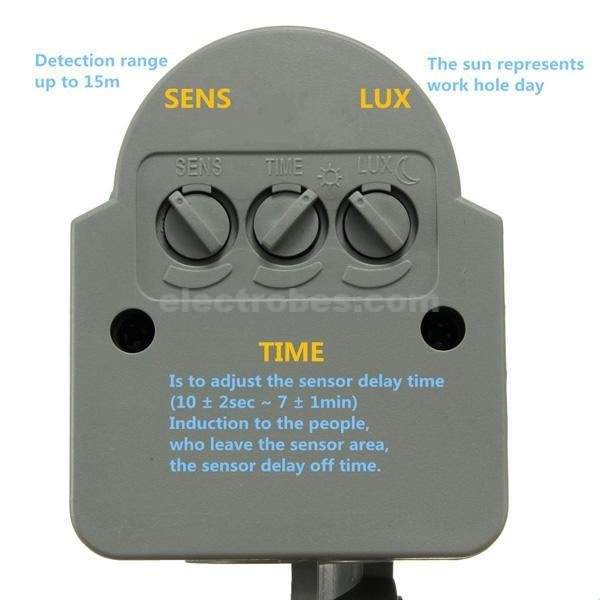

Adjustment

LUX

Regulate the work day or night.
A : When transferred to the position of the sun, the sensor-day work;
B : When transferred to the position of the moon,
the sensor does not work during the day, at night automatically enter the working state.

Time

Is to adjust the sensor delay time (10 ± 2sec – 7 ± 1min)
Delay time is the sensor sensitive to the people, the people left the sensing area, the sensor delay off time.

Sense

Is to adjust the sensor sensitivity. Generally do not need adjustment.
  • Detection range : 180°
  • Operating voltage : 12V
  • Detection distance : 15m (24 ℃) (adjustable)
  • Delay Time : 15 seconds to 7 minutes (adjustable)
  • Installation height : 1.8m – 2.5m
  • Material : ABS

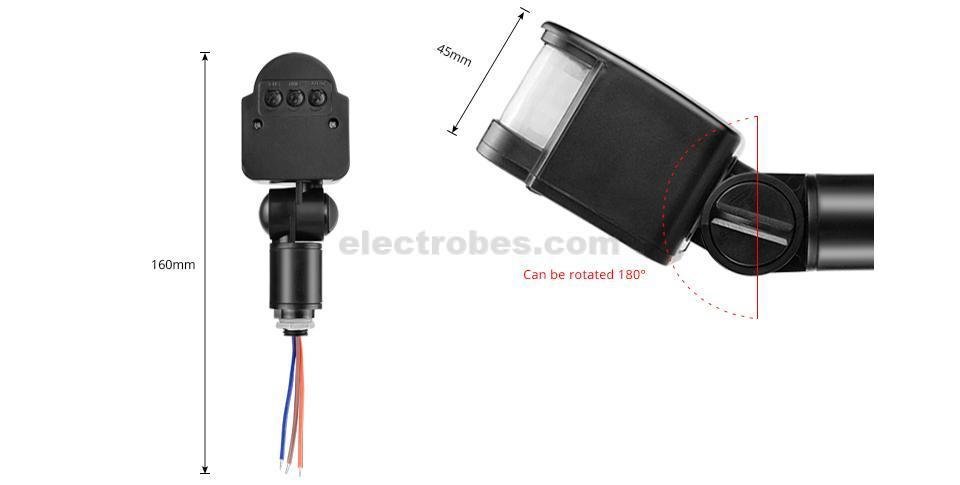

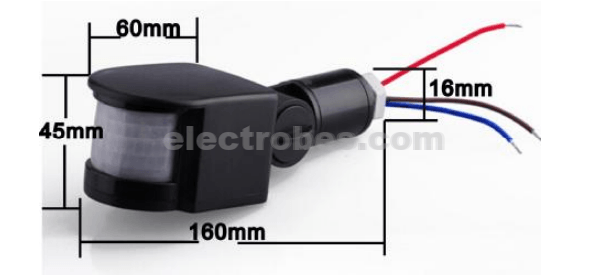

  • Dimensions : 60 x 47 x 156mm
  • Installation : open type, (hole 16mm) installation, adjusting for the next button
