DS3240 Servo Motor 40KG Metal Gear Micro Servo Motor 180 Degree
Steering Servo Motor 40KG High Torque – Full Metal Gear Digital Servo
Out of stock
₨ 5,000
Out of stock

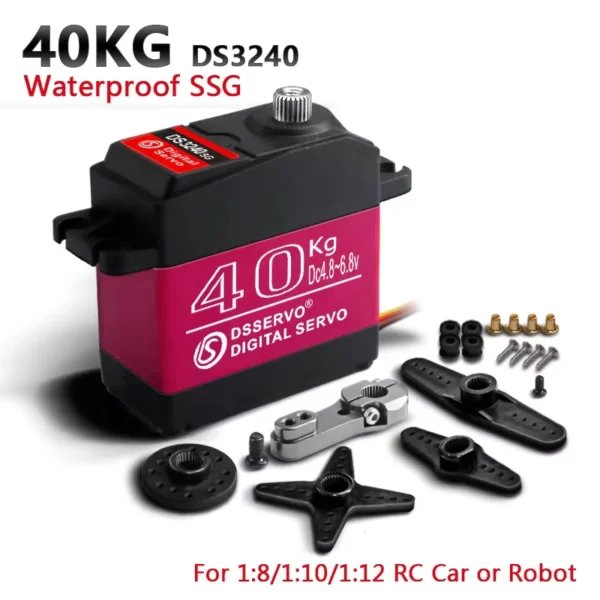

DS3240 Waterproof Digital Servo 6V 40KG High Torque Metal Gear DSServo 25T for 1/8 1/10 Scale RC Crawler Car
DSServo DS3240SSG Pro Servo Motor is High precision potentiometer and High-resolution digital chip, with stable performance, strong anti-interference ability, fast response, high precision, and control is more delicate and smooth operation.
High Torque 40KG Stainless Steel Gear Digital Servo is a high-speed stainless steel gear, accuracy and service life has been greatly increased Accuracy and linearity have been greatly improved. Accurate movement can satisfy the needs of making robots.
Specifications:
- Control Angle: 180 degree
- Stall Torque (at 5V): 36 kg/cm
- Stall Torque (at 6.8V): 45 kg/cm
- Dead band: 3μs
- Speed : 0.20 sec/60°(5V) / 0.17 sec/60°(6.8V)
- Operating Voltage: 4.8 ~ 6.8V
- Working frequency: 1520μs / 334hz
- Pulse width range: 500～2500µsec
- Rotating direction: Counterclockwise (when 500～2500 µsec)
- Neutral position: 1500µsec
- Running degree: 0° (when 500 μ sec)
- Running degree: 180° (when 2500 μ sec)
Packing List:
Apply Environmental Condition:
- Storage Temperature Range:-30°C~80°C
- Operating Temperature Range:-25°C~70°C

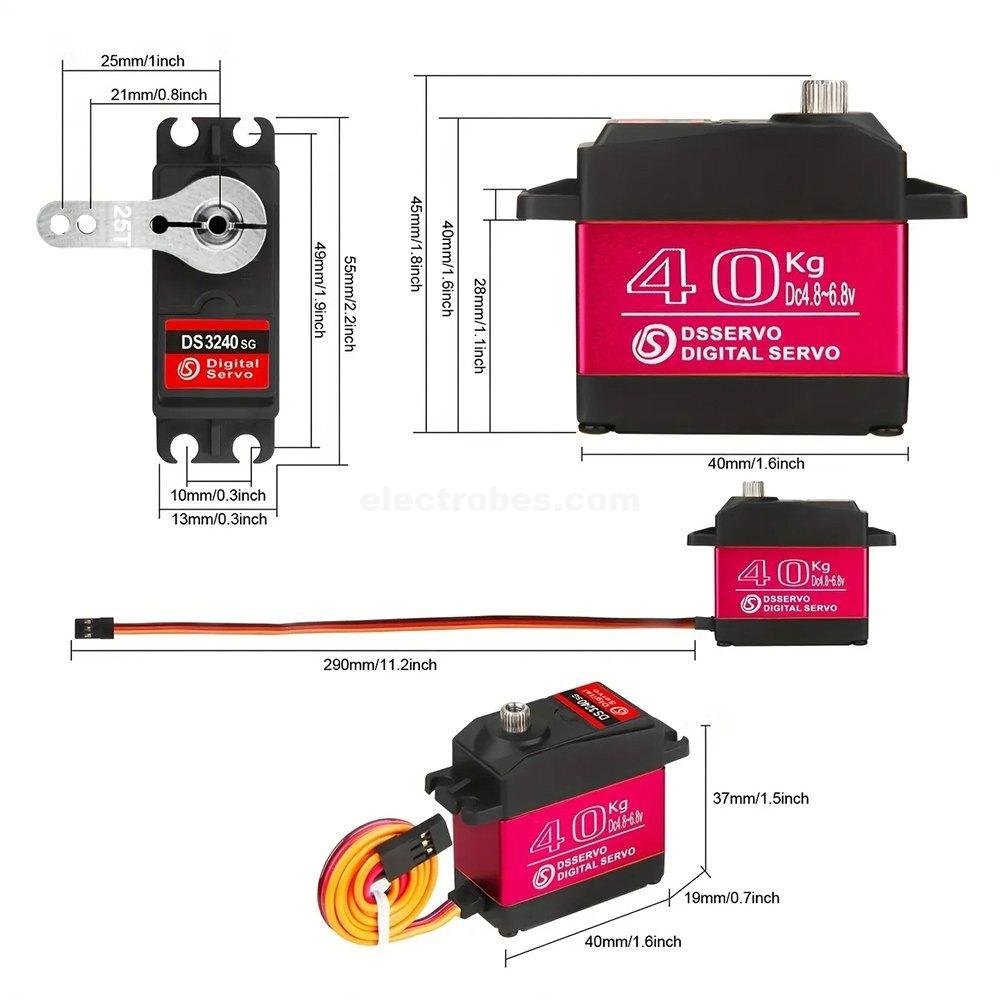

Mechanical Specification:
- Size: 40.0*20*40.5mm
- Weight: 58g±2g
- Limit angle: 360°
- Bearing: 2BB
- Horn gear spline: 25T Diameter:5.9mm
- Case : Engineering plastics+Aluminum alloy
- Connector wire: 320mm±5mm
- Motor: Carbon brush motor
Electrical Specification:
- Working voltage range: 4.8 – 6.8V
- Command signal: Pulse width modification
- Amplifier type: Digital controller
- Pulse width range: 500～2500usec
- Neutral position: 1500usec
- Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec)
- Dead band width: 3 usec
- Rotating direction Counterclockwise: (when 1000～2000usec)
