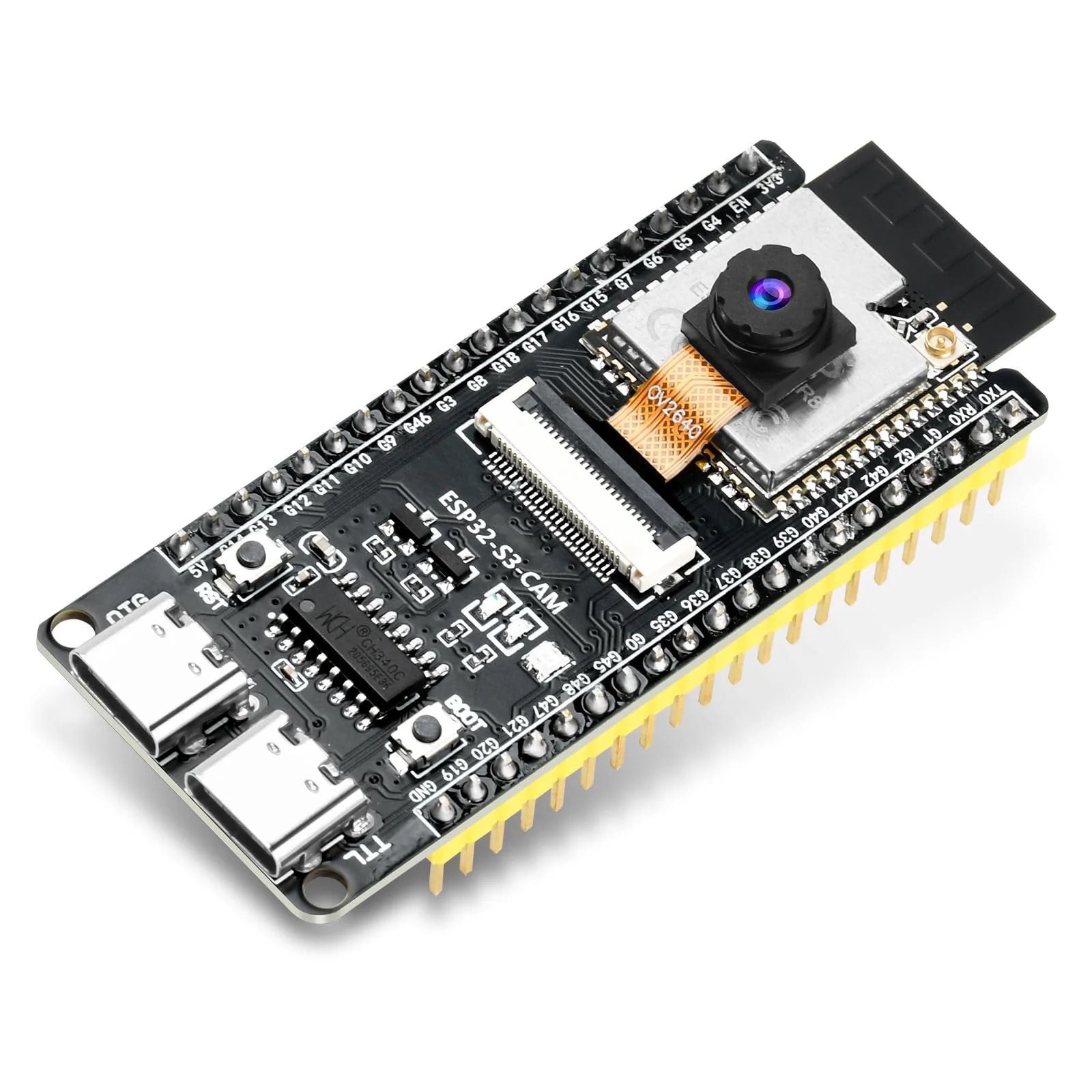

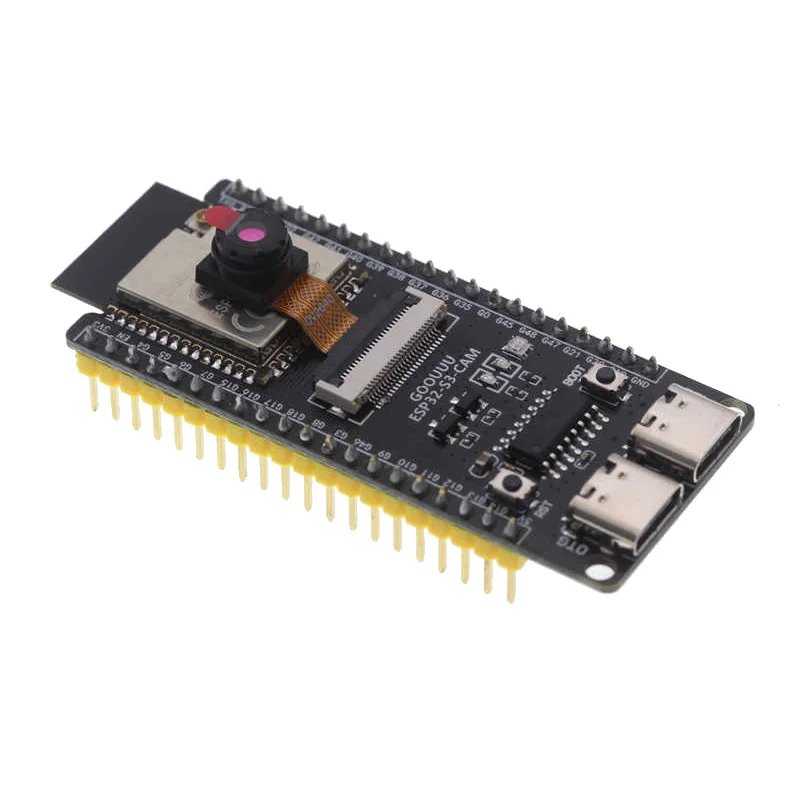

ESP32-S3 Cam Development Board With Ov3660 Camera, Esp32-s3-wroom N16r8 Module Wifi Bluetooth Microcontroller With Dual Type-c And Esp32-s3-core MCU

Product Description:

The ESP32-S3 CAM Development Board with OV2640 Camera is a powerful and compact solution for AI vision, IoT, and embedded camera applications. Built around the advanced ESP32-S3 chip, this board offers enhanced processing performance, integrated WiFi + Bluetooth LE, and hardware support for AI and image processing tasks.

Equipped with the OV2640 camera module, it enables image capture, video streaming, and face recognition projects. With built-in USB support, multiple GPIOs, and low power consumption, this board is ideal for developers working on smart surveillance, home automation, robotics, and edge AI applications.

Specifications:

• Main Chip: ESP32-S3 (Xtensa® 32-bit LX7 Dual-Core)
• Clock Speed: Up to 240 MHz
• Wireless Connectivity:
  • WiFi (2.4 GHz)
  • Bluetooth 5.0 LE
• Camera Module: OV2640 (2MP)
• Image Resolution: Up to 1600 × 1200 (UXGA)
• RAM: On-chip SRAM + optional PSRAM (varies by version)
• Flash Memory: External Flash (varies by module, typically 4MB/8MB/16MB)
• Interface: USB (for programming & power)
• GPIO Pins: Multiple programmable I/O pins
• Supported Interfaces: UART, SPI, I2C, I2S, PWM, ADC
• Power Supply: 5V via USB
• Operating Voltage: 3.3V logic
• Operating Temperature: -20°C to +70°C
• Form Factor: Compact development board

Key Features

• OV2640 Camera Integration
  Supports image capture, video streaming, and computer vision applications.
•  Powerful ESP32-S3 Processor
  Dual-core CPU with AI acceleration for edge computing and smart processing.
•  WiFi + Bluetooth Connectivity
  Enables wireless communication for IoT and remote monitoring.
•  AI & Vision Ready
  Suitable for face detection, object tracking, and smart surveillance systems.
•  USB Programming Support
  Easy firmware upload and power via USB connection.
•  Rich Peripheral Support
  Multiple interfaces for sensors, displays, and external modules.
•  Low Power Consumption
  Optimized for battery-powered and energy-efficient projects.
•  Compact & Versatile Design
  Ideal for embedded systems, robotics, and DIY electronics projects.
