ESP32-S3 CAM Development Board with OV3660 Camera IOT Based Cam Module
ESP32-S3-CAM Development Board with OV3660 Camera, 16MB Flash 8MB PSRAM ESP32-S3-WROOM N16R8 Module with Dual USB-C WiFi BT MCU Microcontroller for IoT, MicroPython,DIY Projects and AI Project.
In stock
₨ 3,500
In stock
ESP32-S3 Cam Development Board With Ov3660 Camera, Esp32-s3-wroom N16r8 Module Wifi Bluetooth Microcontroller With Dual Type-c And Esp32-s3-core MCU
Product Description:
The ESP32-S3 CAM Development Board with OV3660 is a powerful, AI-capable IoT development module driven by a dual-core Xtensa LX7 MCU, packing 16MB Flash, 8MB PSRAM, 2.4GHz Wi-Fi, and Bluetooth 5.0, paired with a high-resolution 3-megapixel OV3660 camera for edge vision and smart-home applications.
This development board pairs Espressif’s high-performance ESP32-S3 chip with an upgraded OV3660 image sensor. Unlike older boards using the basic OV2640, the OV3660 delivers sharper 3-megapixel detail, improved low-light sensitivity, and better dynamic range. With integrated vector instructions for machine learning and AI acceleration, plus ample PSRAM to handle frame buffers smoothly, it is ideal for wireless video streaming, face recognition, and smart surveillance nodes.
Features:
【High-performance dual-core processor】Integrated Xtensa 32-bit LX7 dual-core processor, offering powerful computing power and performance with low power consumption
【3-megapixel OV3660 Camera】: The OV3660 camera module that comes with this ESP32-S3 development board, to capture clear images and stream video in real time. Perfect for smart surveillance, face recognition, and AI-based computer vision projects. It is the preferred solution for DIY makers and professionals to build camera-enabled IoT systems
【Wi-Fi and Bluetooth Dual Mode Support】for ESP32-S3 supports Wi-Fi 802.11 b/g/n and Bluetooth 5.0. Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh. Equipped with a low-power coprocessor and a high-power mode of up to 20 dBm, it can meet the requirements of a variety of application scenarios.
【Upgrade from for ESP32 S3】Compared to other ESP32S3 development boards, this development board features enhanced features and additional external antenna interfaces, to meet more user requirements.
【Large Storage Capacity】The ESP32 module integrates 8 MB RAM and 16 MB Flash and provides enough storage for the development of complex applications.

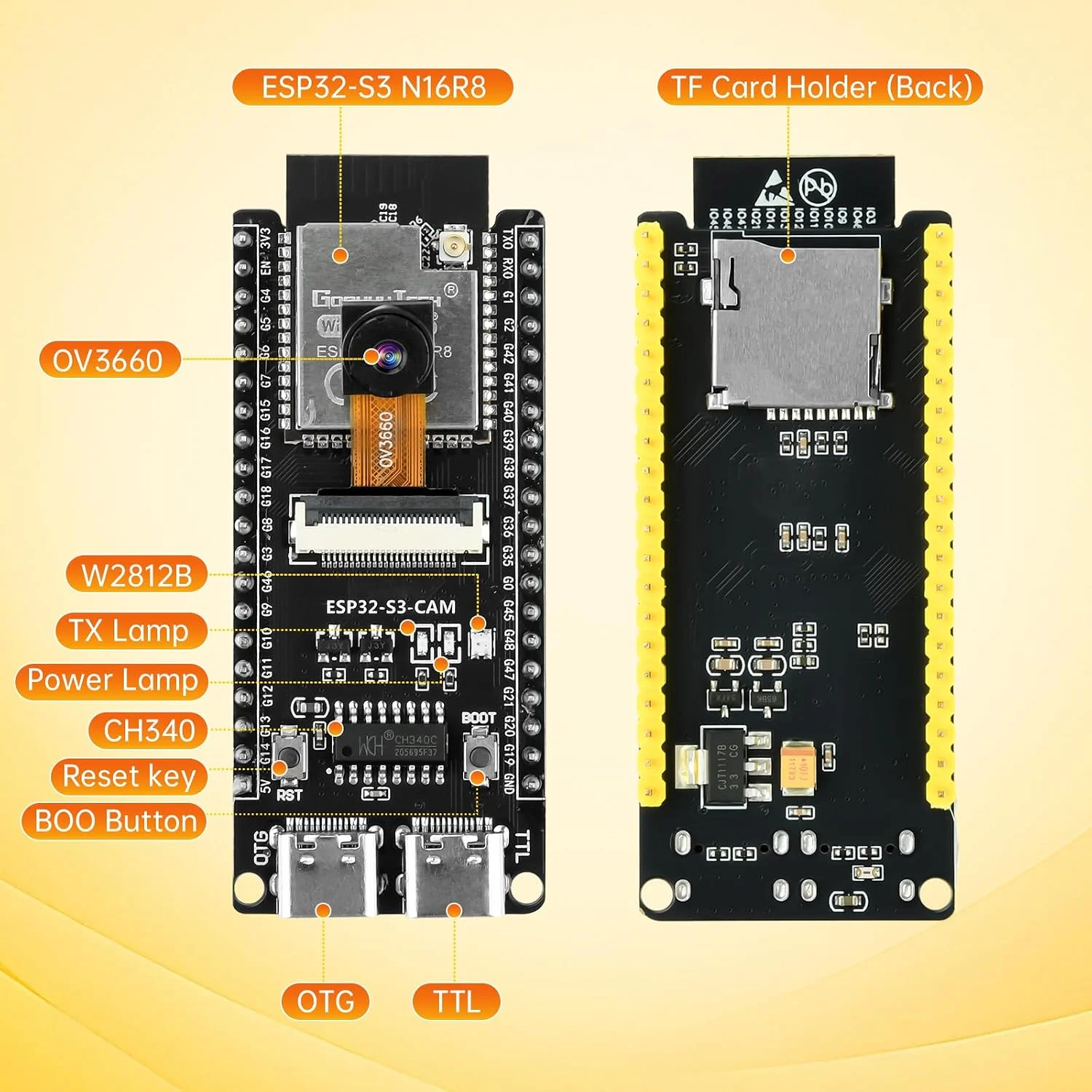

Specifications:
- Microcontroller: Xtensa 32-bit dual-core LX7 CPU (up to 240 MHz)
- Wireless: 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 / BLE
- Memory: 16MB Flash memory and 8MB PSRAM
- Camera Sensor: OV3660 (3 Megapixels, max resolution 2048 × 1536)
- USB Interface: Dual USB Type-C ports (one for native USB OTG, one for USB-to-UART serial debugging/programming)
- Storage: MicroSD / TF card slot (SD_MMC interface) for local image and video logging

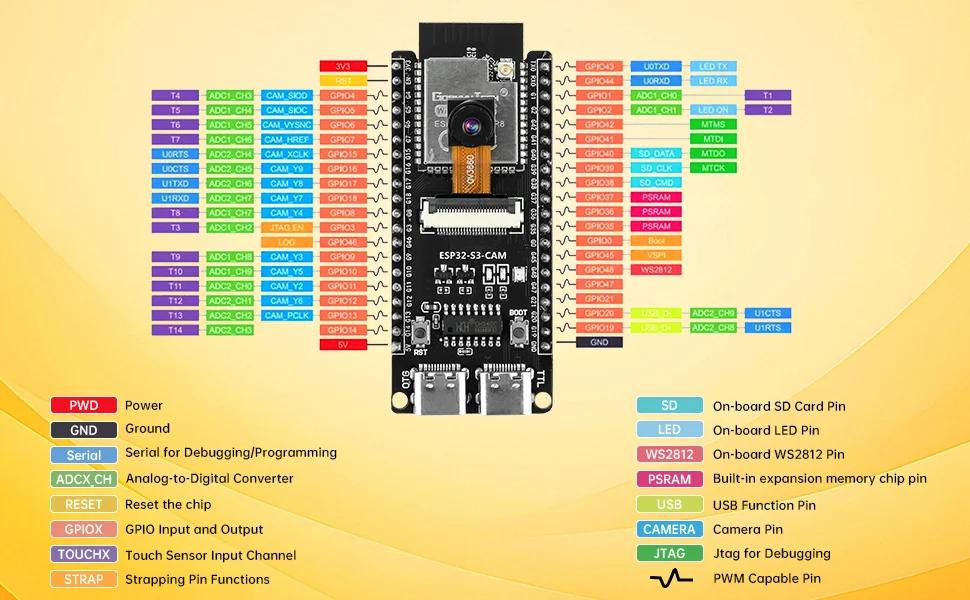

- Peripherals: Rich GPIO layout supporting I2C, SPI, UART, PWM, and ADC channel
Applications:
- IoT and AIoT prototyping.
- Smart surveillance systems with real-time image capture.
- Robotics projects requiring vision and wireless communication.
- AI-based image processing and recognition.
- Wireless automation and control devices.
- DIY electronics and educational development projects.
Package Includes:
1 x ESP32-S3 CAM Development Board WiFi Bluetooth Module N16R8 High Quality Camera
- Microcontroller: Xtensa 32-bit dual-core LX7 CPU (up to 240 MHz)
- Wireless: 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0 / BLE
- Memory: 16MB Flash memory and 8MB PSRAM
- Camera Sensor: OV3660 (3 Megapixels, max resolution 2048 × 1536)
- USB Interface: Dual USB Type-C ports (one for native USB OTG, one for USB-to-UART serial debugging/programming)
- Storage: MicroSD / TF card slot (SD_MMC interface) for local image and video logging
- Peripherals: Rich GPIO layout supporting I2C, SPI, UART, PWM, and ADC channel
