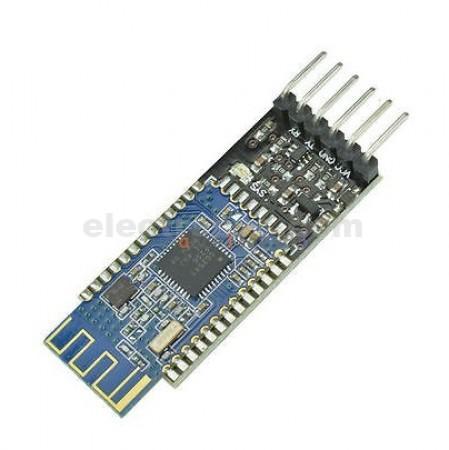

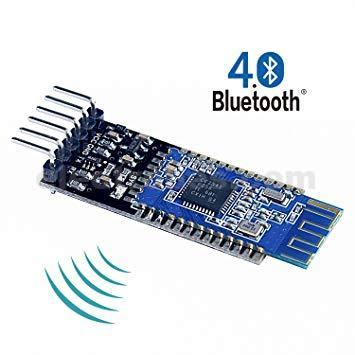

HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module
- The HM-10 Bluetooth module combines the powerful and programmable Texas Instruments CC2541 Chipset with the required components to start right away with your BLE development.
- The module offers an on-board voltage regulator and is TTL-level and 5 V tolerant.
- The Bluetooth-SoC can be accessed via UART interface and supports AT-Commands for setup.
- It supports full Bluetooth 4.0 standard and can be used for your Arduino or microcontroller to Android or iOS communication projects.
- This module can be used to replace HC-05, HC-06 and HC-07 devices.
- This module can also be configured and used as an iBeacon for used with Apple devices.
Availability:
In stock
₨ 1,050
In stock

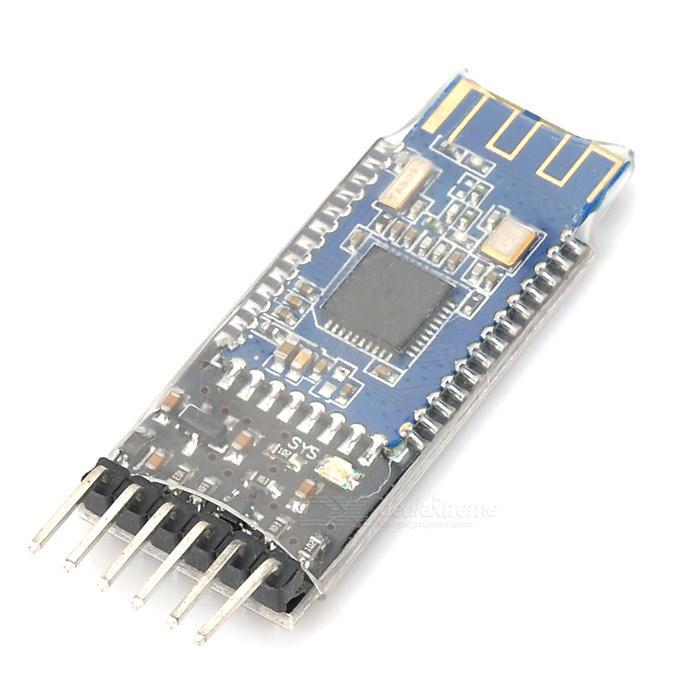

- The HM10 is a Bluetooth 4.0 module based on the SoC (System on Chip).
- The firmware and design of the module is made and managed by Jinan Huamao Technology.
Features:
- Industrial remote control, remote sensing
- POS system, and Bluetooth keyboard, mouse, and joystick
- Automobile testing equipment
- Portable, battery-powered medical equipment
- Automation data acquisition
- Bluetooth remote control toys
- Wireless LED display system
- Bluetooth printer
- Smart Home and Industrial Control
- The HM10 is a serial BLE module (Bluetooth-Low-Energy) which is intended to use for the low power consumption applications and can last long even with a coin-sized battery.
- The module comes with serial/UART layer which makes the device to be able to interface with different microcontrollers.
- Bluetooth Protocol: Bluetooth Specification V4.0 BLE
- USB Protocol: USB V2.0
- Operating Frequency: 2.4GHz ISM band
- Modulation Mode: GFSK (Gaussian Frequency Shift Keying)
- Transmitting Power: ≤4dBm
- Sensitivity: ≤-84dBm at 0.1% BER
- Transmission Rate: Asynchronous: 6 kbps
- Synchronous: 6 kbps
- Security Feature: Authentication and encryption
- Support Service: Central & Peripheral UUID FFE0, FFE1
- Power Supply: +3.3VDC 50mA
- Operating Temperature: -5 ~ +65 Centigrade .
