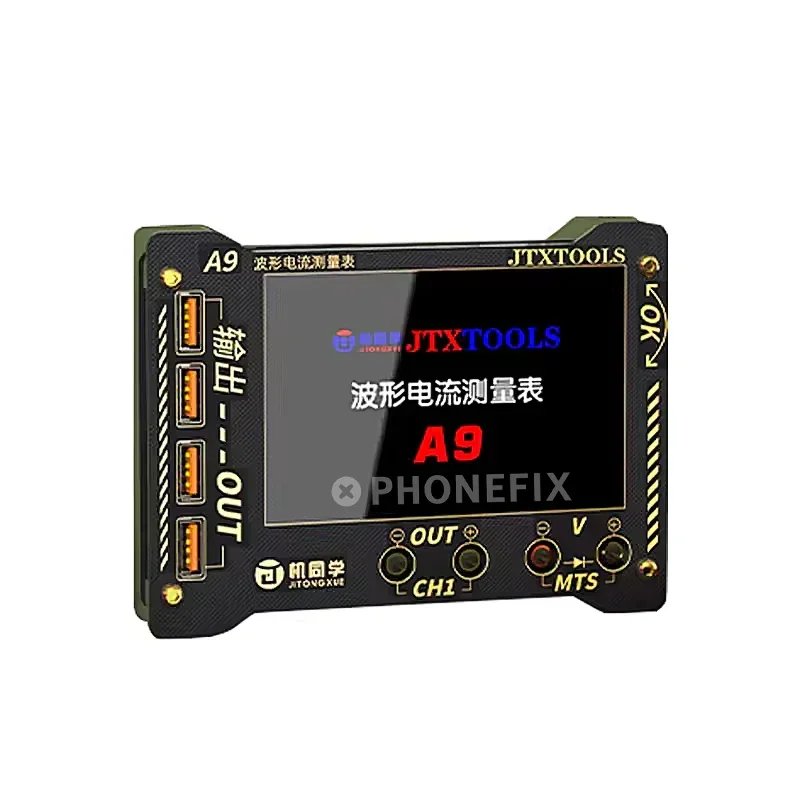

JTX A9 Curve Waveform Measuring Meter Phone Current Voltage Tester

Product Description:

The JTX A9 Curve Waveform Measuring Meter is a high-precision multifunction diagnostic tool designed for mobile phone repair and electronic circuit testing.

It combines current, voltage, diode testing, and waveform analysis into one compact device, allowing technicians to monitor real-time electrical behavior and quickly diagnose faults in smartphones, batteries, and electronic boards.

With its 4.0-inch IPS HD display and curve waveform visualization, the JTX A9 provides a clear and intuitive way to analyze current fluctuations, voltage changes, and circuit behavior—making it far more advanced than traditional multimeters.

Specifications:

Key Features:

 Curve Waveform Analysis:

• Displays real-time current & voltage waveforms
• Helps visualize circuit behavior for accurate fault detection

 High-Speed Dynamic Measurement:

• Millisecond-level sampling with up to 470% faster capture speed than traditional testers

 Multi-Display Modes:

• Supports curve, pointer, and digital modes
• Allows flexible monitoring depending on testing needs

 High-Precision Testing:

• Accurate voltage and current measurement with fine resolution (1mV / 0.1mA)

 Ultra-Fast Diode Detection:

• 0.01-second diode scanning for quick leakage detection and troubleshooting

 Charging Power Monitoring:

• Displays voltage, current, power, time, and battery capacity (mAh) in real-time

 PC Connectivity (Host Projection):

• Supports real-time data display on computer
• Ideal for workstation-based repair environments

 Intelligent Fault Detection:

• Quickly identifies issues such as:
  • Short circuits
  • Voltage drops
  • Current abnormalities
• Can locate faults within seconds

 Large IPS HD Display:

• 4.0” screen with wide viewing angle (178°)
• Clear waveform visualization even under bright light

 Firmware Upgrade Support:

• Cloud upgrade capability for future improvements and features

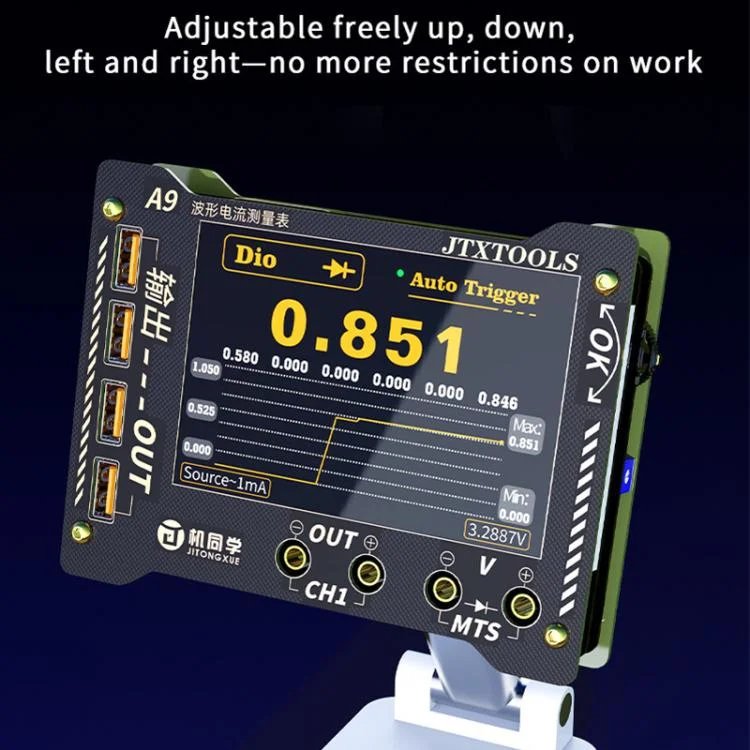

 Flexible Mounting Design:

• Can be mounted on a bracket with adjustable viewing angles
