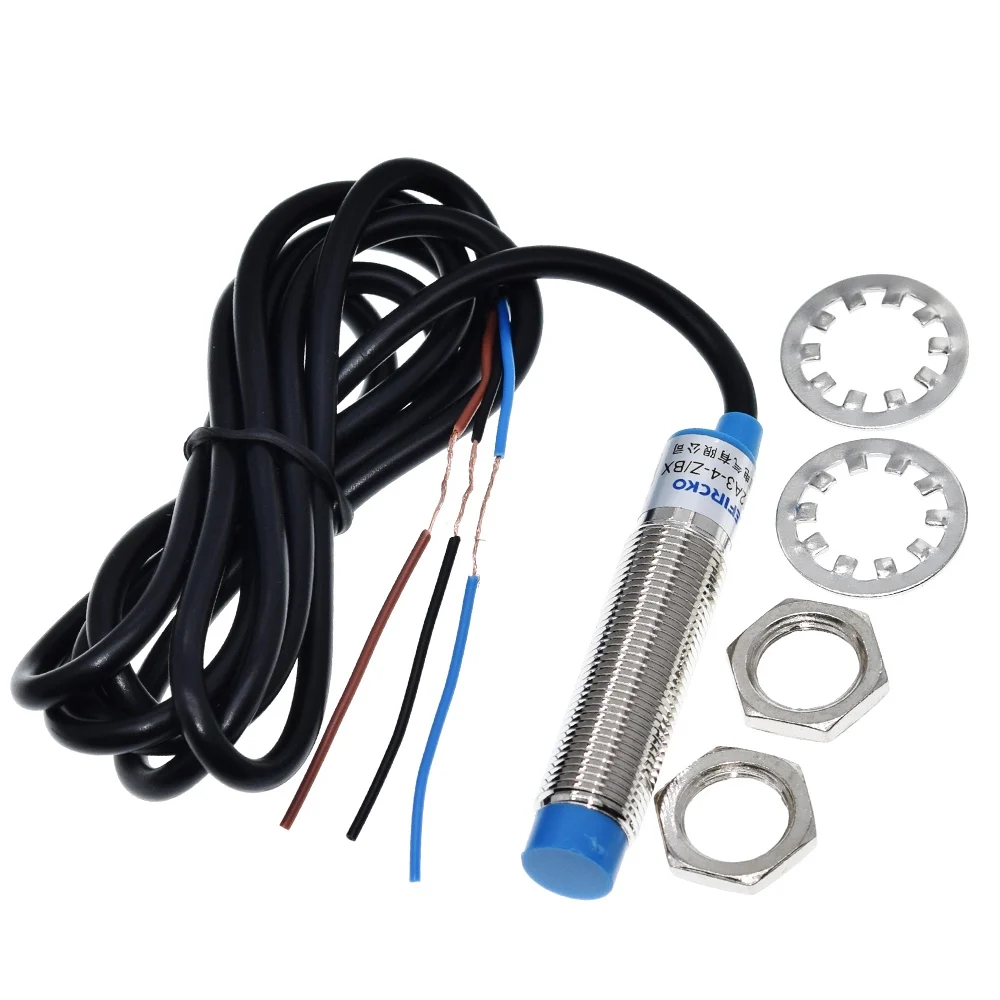

LJ12A3-4-Z/BX NPN NO Inductive Proximity Sensor Switch DC 6V-36V
- Mounting hole diameter: 12mm
- Detecting distance: 4mm
- Working voltage: 10-30 VDC
- Current output: 200mA
- Output type: NPN, NO(Normally Open)
- Set distance: 0-3.6mm
- Detect Object: Magnetic Metal
Availability:
In stock
₨ 600
In stock
LJ12A3-4-Z/BX NPN Inductive Proximity Sensor Switch DC 6V-36V NO 3-Wire 4mm
Description:
- Power supply reversal connection protection; short-circuit protection can directly connect with PLC
- Used in common places with Medium environment resistance
- Red LED indicates that it’s available to detect the sensor operation state
- Economical and simple operation
- Widely used, it can be a substitution for min-type switch and limit switch
- IP 67 Water protection
Features:
- Theory: Inductive Sensor.
- High Repeated Positioning Accuracy.

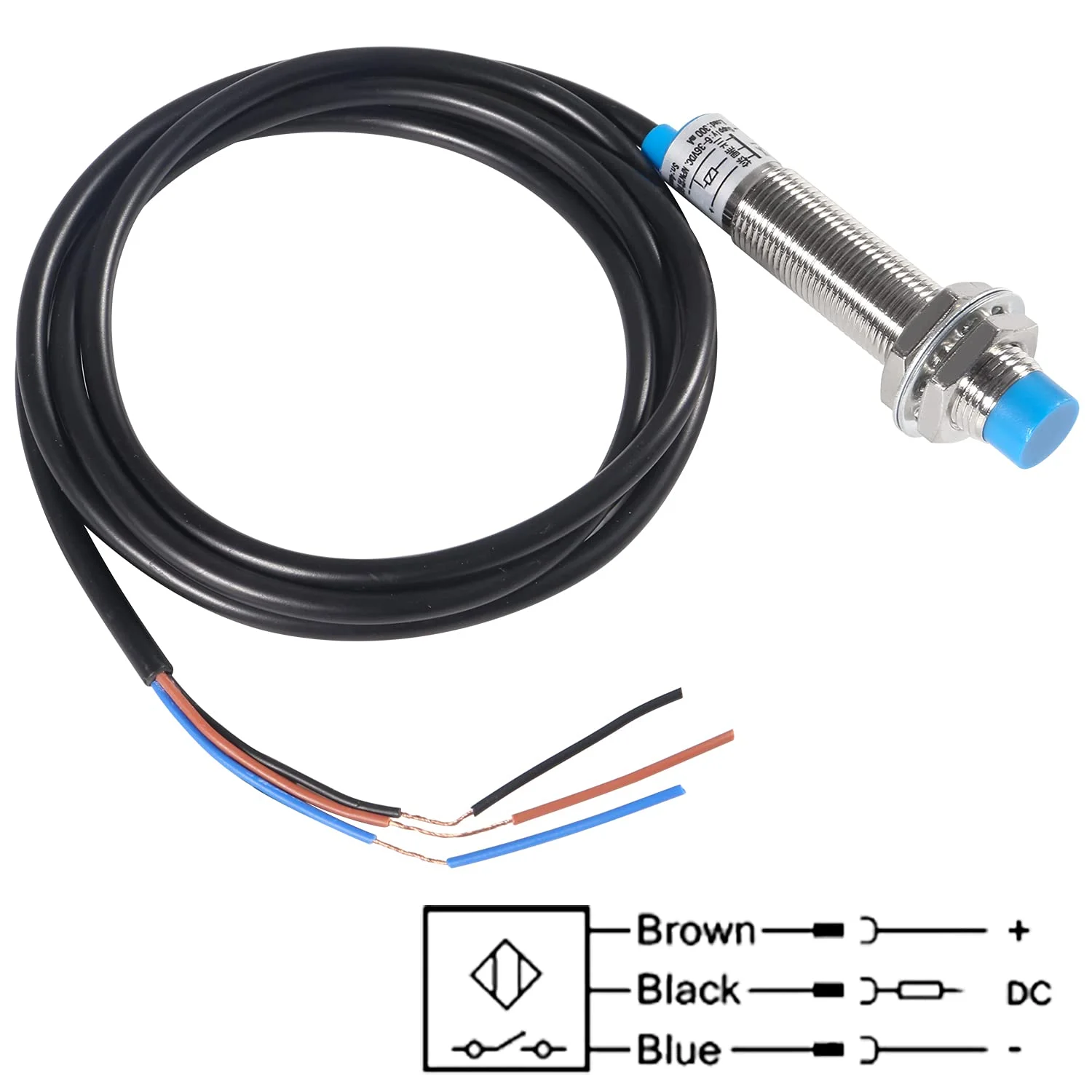

- Wire type and power: DC 3-wire type 6-36VDC
- Sensing side diameter : M12
- Sensing distance: 4mm
- Installation: Non-Shield(non-flush)
- Control output: NPN Normally Open
Specifications:
- Types: LJ12A3-4-Z/BX
- Mounting Hole Diameter: 12 mm
- Detecting Distance: 4 mm
- Working Voltage: 6-36V DC,
- Current Output: 300mA
- Output type: NPN, NO(Normally Open)
- Weight: 40.8 g
- Types: LJ12A3-4-Z/BX
- Mounting Hole Diameter: 12 mm
- Detecting Distance: 4 mm
- Working Voltage: 6-36V DC,
- Current Output: 300mA
- Output type: NPN, NO(Normally Open)
- Weight: 40.8 g
