Long Shaft Precision Electronic Lock Motor N20 Geared Motor CW CCW Micro DC 3V-3.7V 73rpm-88rpm Slow Speed with Feedback Linear

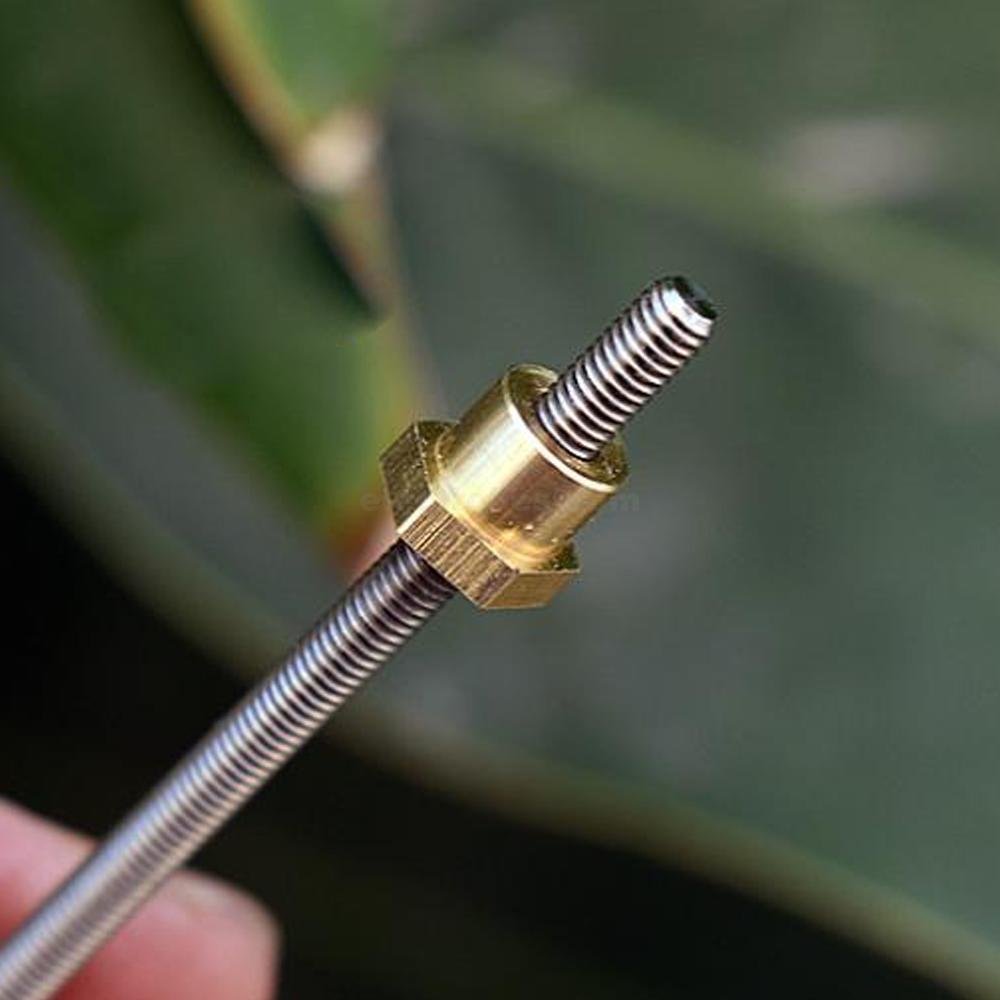

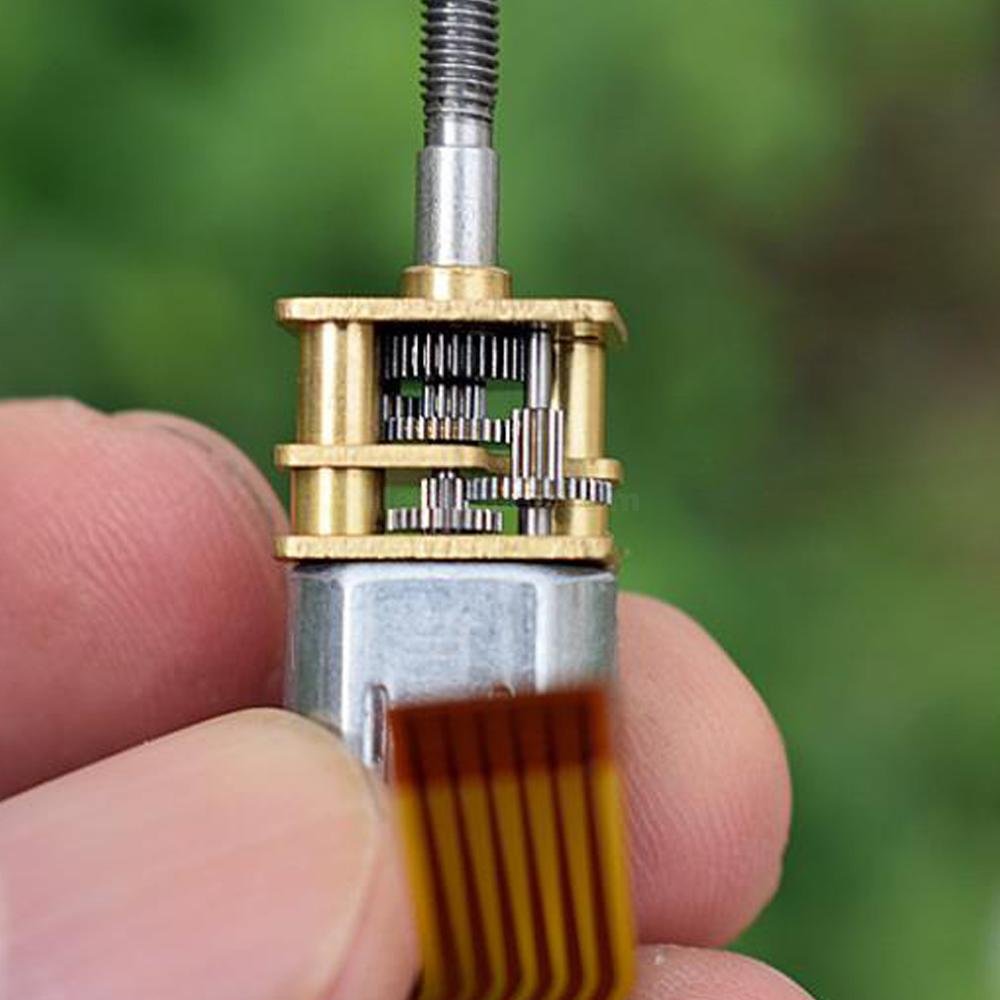

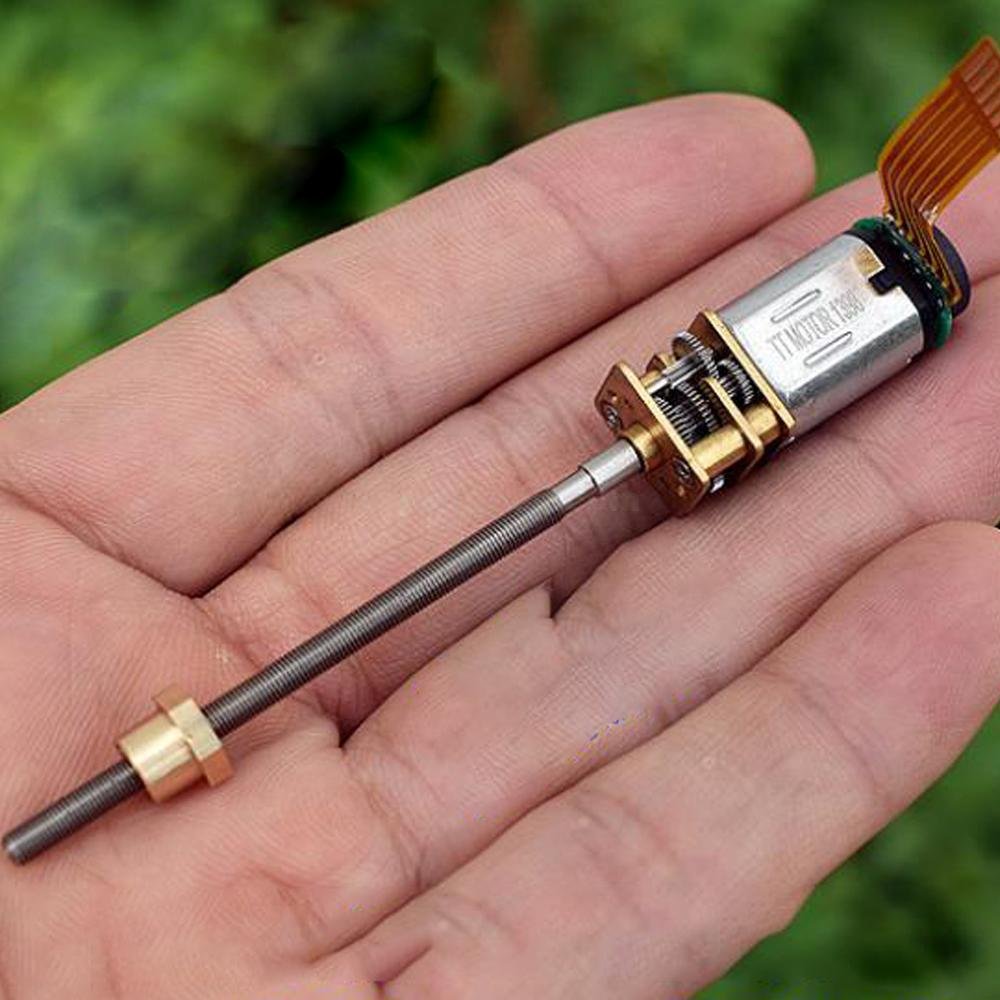

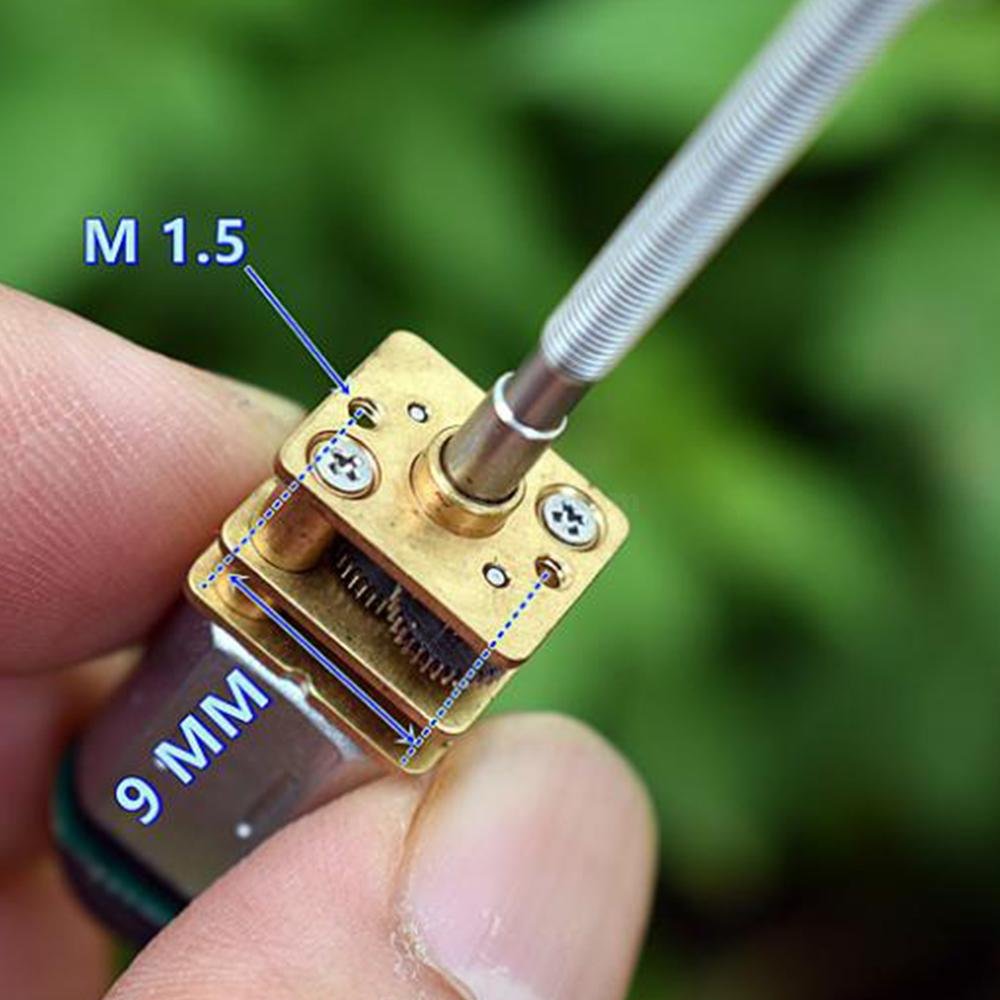

Precision N20 reduction motor with long pole, all metal gear reduction box, N20 motor tail with the feedback of revolution measurement, the length of the long pole reaches 50MM

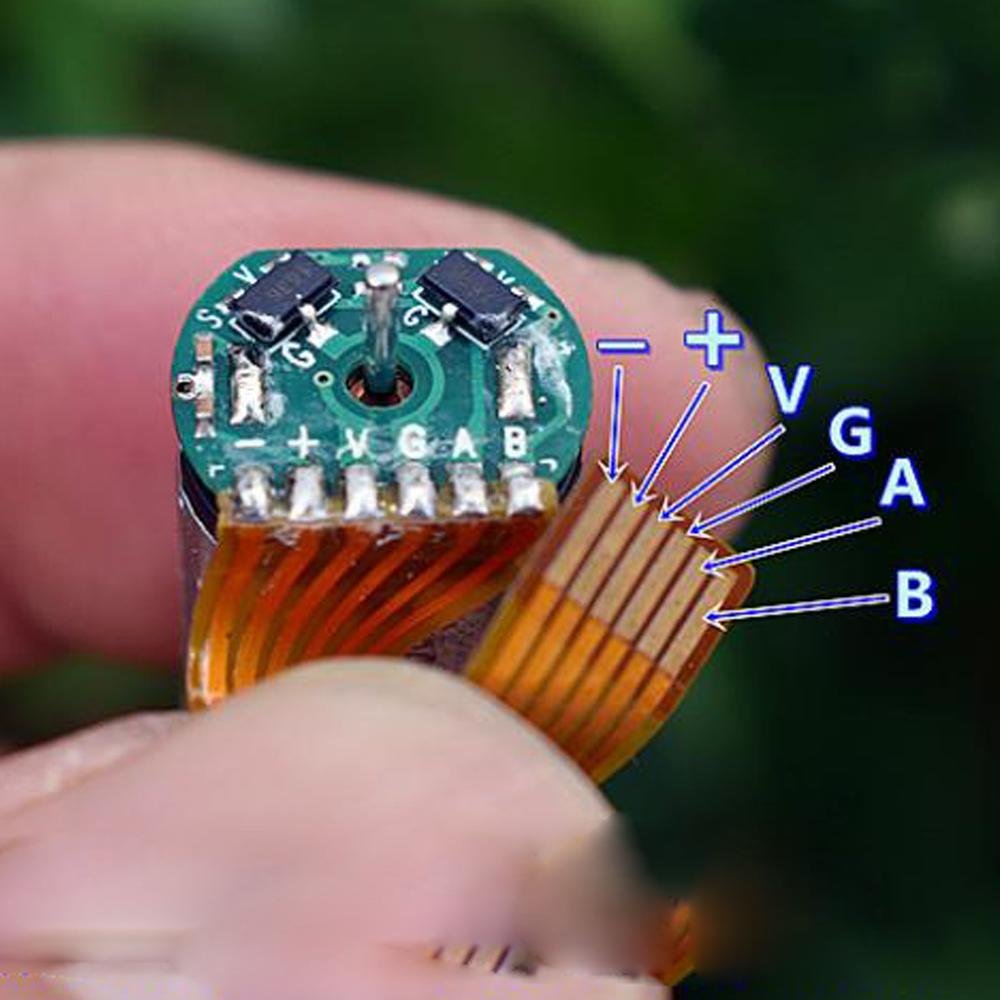

It itself is used in the precision electronic lock in the precision deceleration motor, it needs precision control, so the motor tail with the feedback of revolution measurement

Type A geared motor: The stem is reversed (left-handed), and the pitch P:  0.5MM, reduction ratio:  1: 306
Type B geared motor: The shaft is orthodontic (right-handed), and the pitch P:  0.35MM,    reduction ratio:   1: 240

Model A geared motor parameters:

DC3V: The shaft speed is 58 revolutions, and the nut travels from beginning to end for about 90 seconds.
DC3.4V: The stem rotates at 66 revolutions, and the nut runs from the beginning to the end for about 80 seconds.
DC3.7V: The stem rotates at 73 revolutions, and the nut runs from the beginning to the end for about 75 seconds.

Model B geared motor:

DC3V: The stem rotates at 73 revolutions, and the nut travels from start to end for about 110 seconds.
DC3.4V: The stem rotates at 81 revolutions, and the nut travels from start to end for about 98 seconds.
DC3.7V: The stem rotates at 88 revolutions, and the nut travels from beginning to end for about 88 seconds.

Features:

• N20 motors: the geared motor is equipped with high-speed variable speed sensor, which can be adjusted according to your needs.
• Electronic lock motor: equipped with intelligent lcd motor, the electronic lock motor can be automatically locked by turning on the power switch. when you press the button, the motor will open automatically.
• Durable materials: this geared motor is made of high-quality materials, which is durable and has a long service life.
• Brushless motor: the brushless motor is equipped with a brushless motor, which makes it easier for you to control the direction of the motor.
• Exceptional quality: better products are made from the highest quality materials to ensure outstanding performance & long-lasting value. we offer you the best possible service for any questions and concerns.
• Small small size: this geared motor is small in size and does not take up too much space, which is very convenient to carry.

Advantages:

• Light weight geared Electric Motor, Benefiting from high torque and low noise, Small volume, big torsion.

• Good toughness, impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable.

Package Includes:

1pc Long Shaft Precision Electronic Lock Motor N20 Geared Motor
