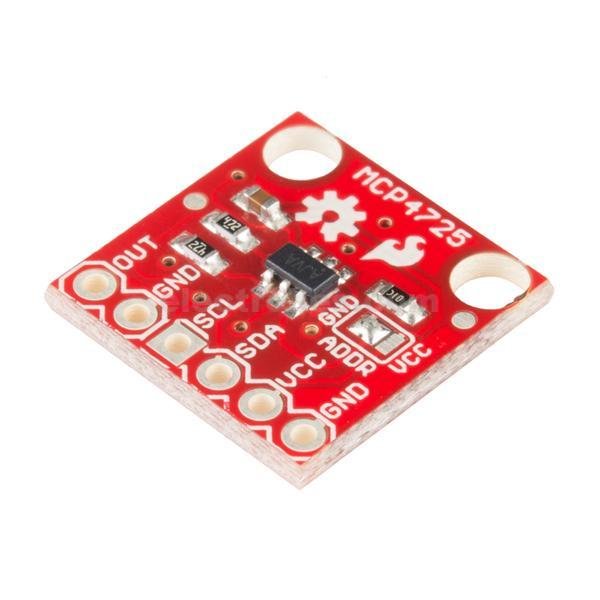

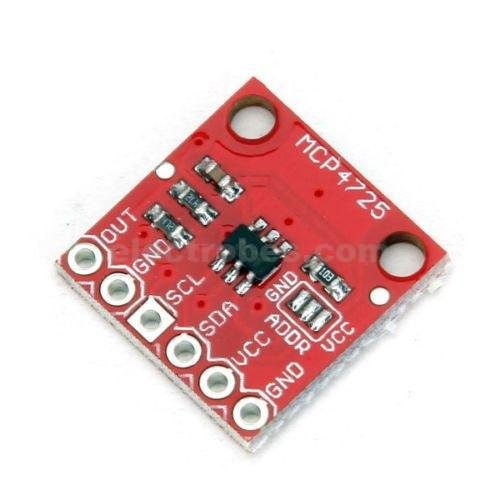

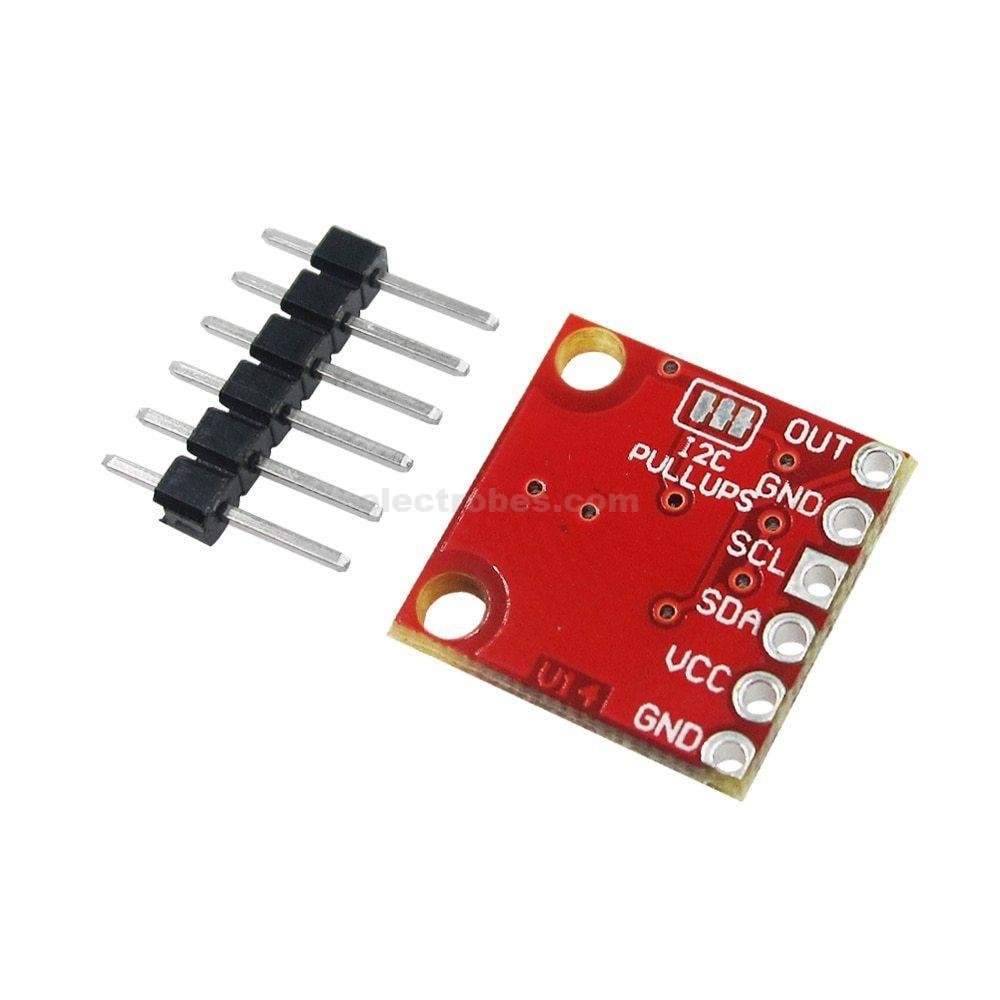

MCP4725 I2C DAC Digital to Analog Converter Module Board

The MCP4725 is a 12-channel buffered voltage output DAC with a non-volatile memory (EEPROM) of. The user can configure the recording bit (2) and the DAC input data (12) stored in the non-volatile EEPROM memory (14 bits). By setting the configuration register bits, the DAC can be configured in normal mode or in power save stop mode. The device uses a two-wire I2C-compatible serial interface and a voltage range of 2.7 V to 5.5 V single supply.

The MCP4725 is an I2C controlled Digital-to-Analog converter (DAC). A DAC allows a digital device like a microcontroller to output analog values like a sine wave. Digital to analog converters are great for sound generation, musical instruments, and many other creative projects!

MCP4725 I2C DAC Module gives output analog voltages from a microcontroller. it is a digital to analog converter. MCP4725 I2C is an ADC. it I2C module control Digital to Analog converter. it allows the user to send analog signals like a sine wave. it provides an interface on the Arduino microcontroller. this MCP4725  good to generate sound. it is also used in musical instruments. it uses many other creative projects. I2C module fixes a few issues with the board including the IC footprint. it resolves the issue of I2C pinout snd changes the overall board dimensions. I2C module development board breaks out each pin you need to access. it uses the MCP4725 including GND and Signal OUT pins for connecting to an oscilloscope. you can attach any other device you need to hook up to the board. SCL, SDA, VCC, and another GND for your basic I2C pinout.

Features:

Pinout:

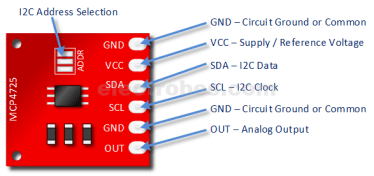

The first thing to point out is the pinout on this breakout now conforms to the standard I²C pinout we’ve started using on most devices that use the two-wire interface. Thus, it is easy to solder some headers on the breakout and plug it directly into an Arduino with the same pinout for the I²C pins. There is also the signal out and a GND pin grouped together to connect to an oscilloscope or whatever other device you’re hooking up to the breakout.
