Nema17 17HS4023 12-24V 1A Stepper motor 1.8/step 6 Wire (New)

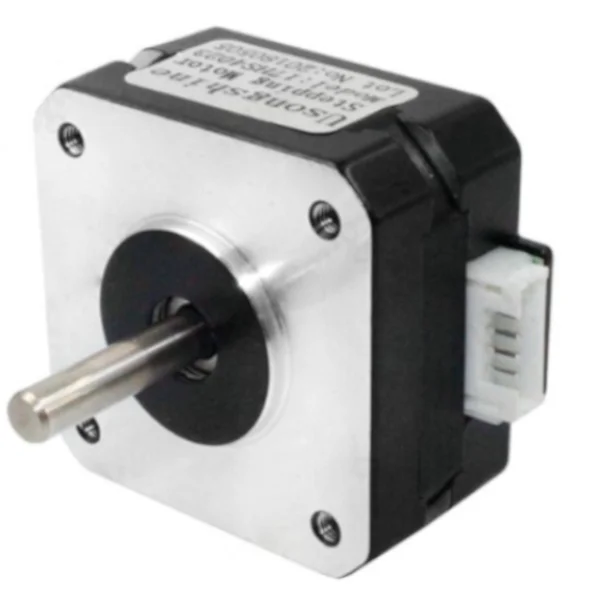

The Nema 17 6-wire stepper motor (42x42x23mm, 1A, 1.8° per step) is a versatile, high-torque unipolar/bipolar motor commonly used in 3D printers, CNC machines, and robotics. Its 6-wire configuration allows it to operate in unipolar mode (using the center taps) or bipolar mode (ignoring the center taps for maximum torque).

Key Specifications

• Condition: Brnad New
• Frame Size: NEMA 17 (42x42x23 mm faceplate).
• Body Length: 23mm (often referred to as a 42-23 motor).
• Step Angle: 1.8 degree (200 steps per revolution).
• Rated Current: 1A per phase.
• Voltage Range: Typically driven at 12-24V DC using a constant-current driver.
• Holding Torque: Generally between 13 Ncm and 15Ncm.
• Shaft Diameter: 5mm (standard “D” shape)
• Holding Torque: (13-14Ncm).
• Phase Resistance: 3.5 ohm.
• Weight: 130g

Core Applications

• 3D Printers: Ideal for Y-axes, dual Z-axes, X axis or heavy direct-drive extruders.
• CNC Routers & Laser Cutters: Provides precise linear positioning for small-scale desktop engraving machines.
• Automation & Robotics: Excellent for precise speed and position control in custom DIY projects.

Typical Wiring (4-Wire Bipolar Setup)

If you are converting it to a 4-wire setup for a 3D printer:

• Phase A: Often Black (A+) and Green (A-).
• Phase B: Often Red (B+) and Blue (B-).
• Center Taps: Usually White and Yellow (these should be taped off and ignored if using a 4-wire driver).

For reliable operation, ensure your motor driver current limit is set to match the 1.7A rating to prevent overheating or missed steps.

How to Connect to standard 4-Pin Drivers (A4988, DRV8825, TMC2209):

1. Identify the Pairs: Use a multimeter to check resistance. The two wires with the highest resistance between them are the outer ends of a coil phase. The center tap will show half of that resistance to either end.
2. 4-Wire Bipolar Mode: Connect only the four outer wires (Line 1, Line 2 to Phase A; Line 4, Line 5 to Phase B). This delivers the highest possible torque for your application.
