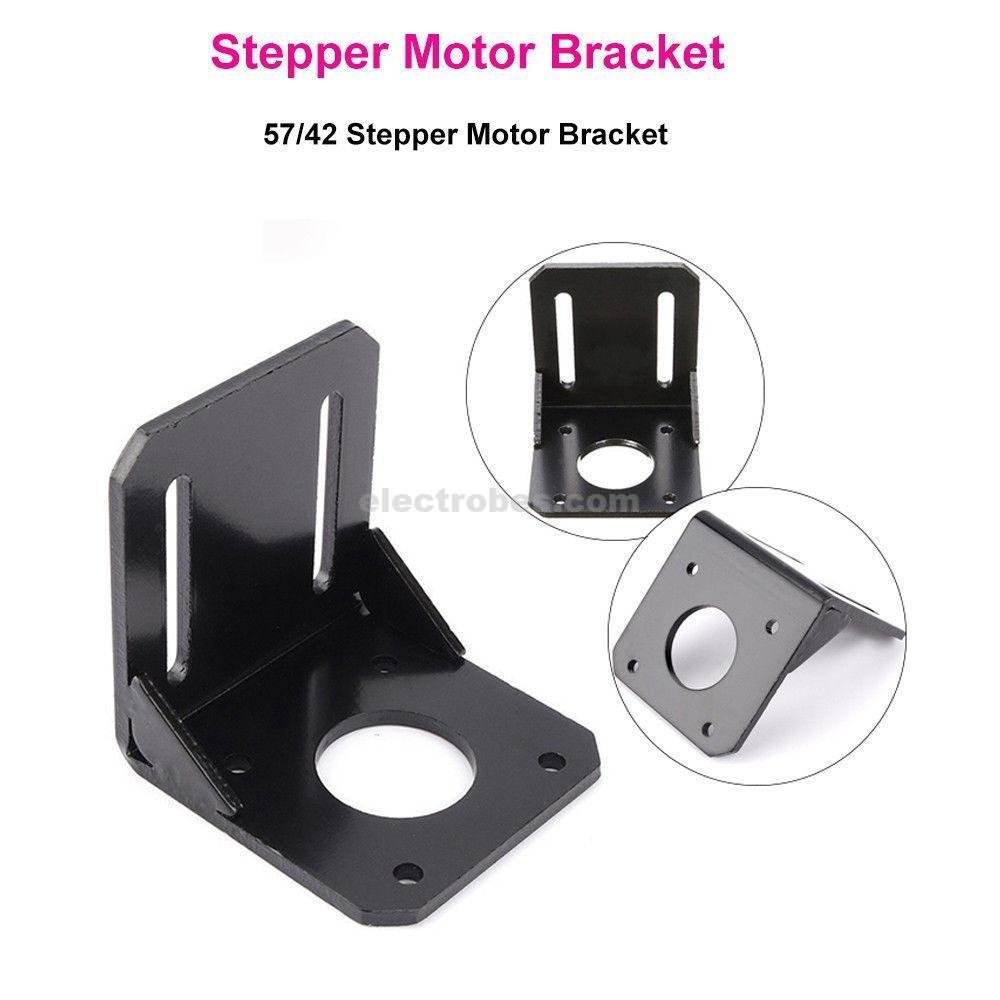

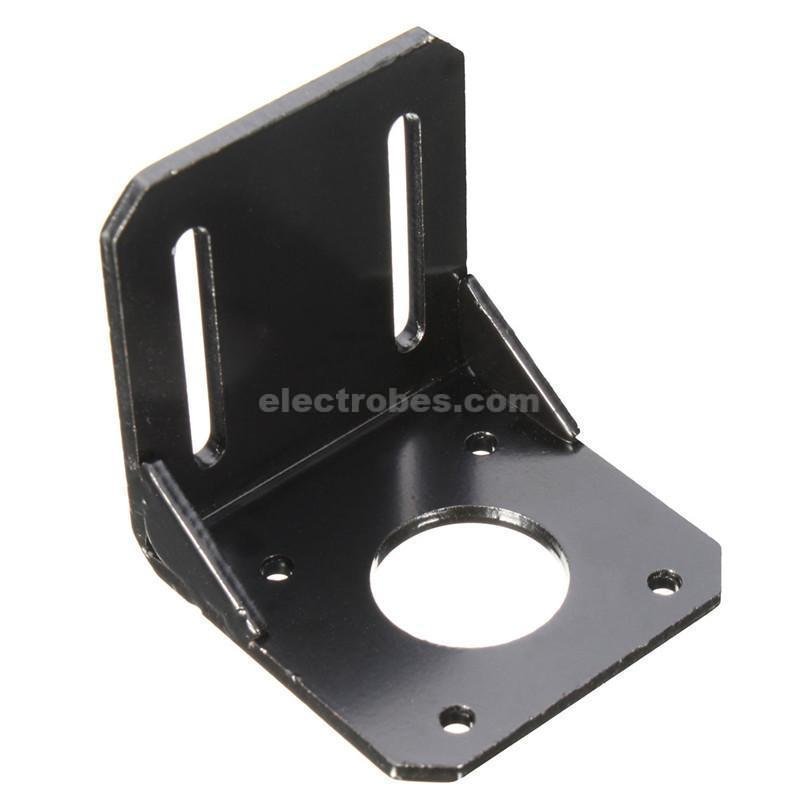

Nema17 Stepper Motor Angle Mount Bracket for CNC & 3D Printer
CompareIn stock
₨ 250
In stock
Description
- Stepper motor mounting bracket (NEMA 17)
- Made with coated mild steel material
- RoHS compliant

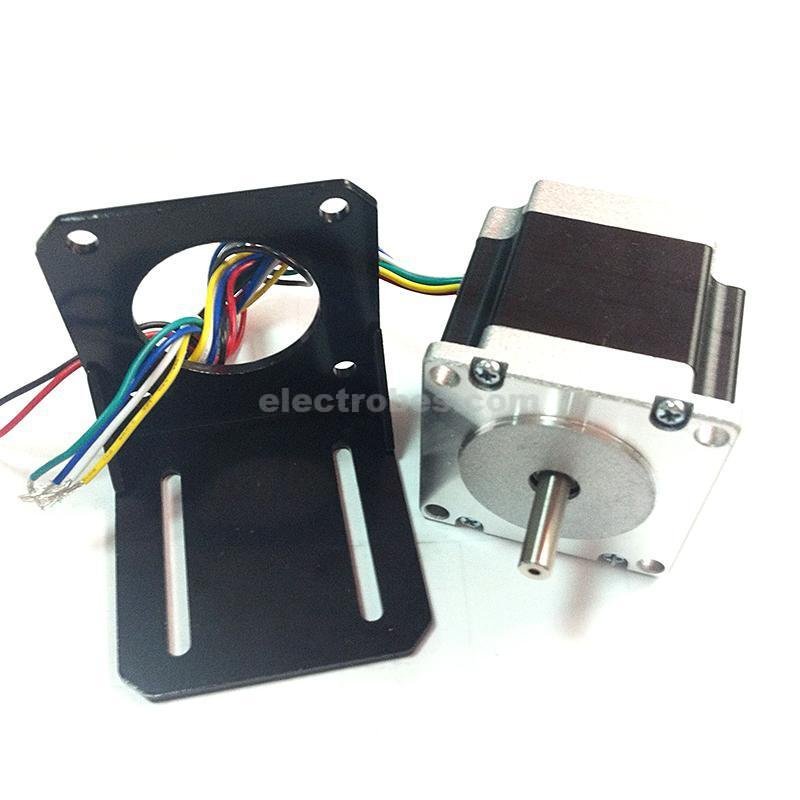

The Stepper Motor Mounting Bracket (NEMA 17) is a coated steel mounting bracket providing a simple means of attaching a NEMA-17 sized stepper motor to a flat surface. It has two sets of mounting holes, so it can be attached to 36mm planetary gearboxes or mounted directly to the motor. Fix a NEMA-17 sized motor or 36mm gearbox to a flat surface with this steel mounting bracket.
Note: Motor, Nuts and screws are not included.
- Mounting plate size: NEMA 17
- Material: Mild steel (Coated)
- Condition: New
- Color: black
- Thickness: 3mm
- Gross weight: 95g
- Type: L type
- Material: stainless steel
