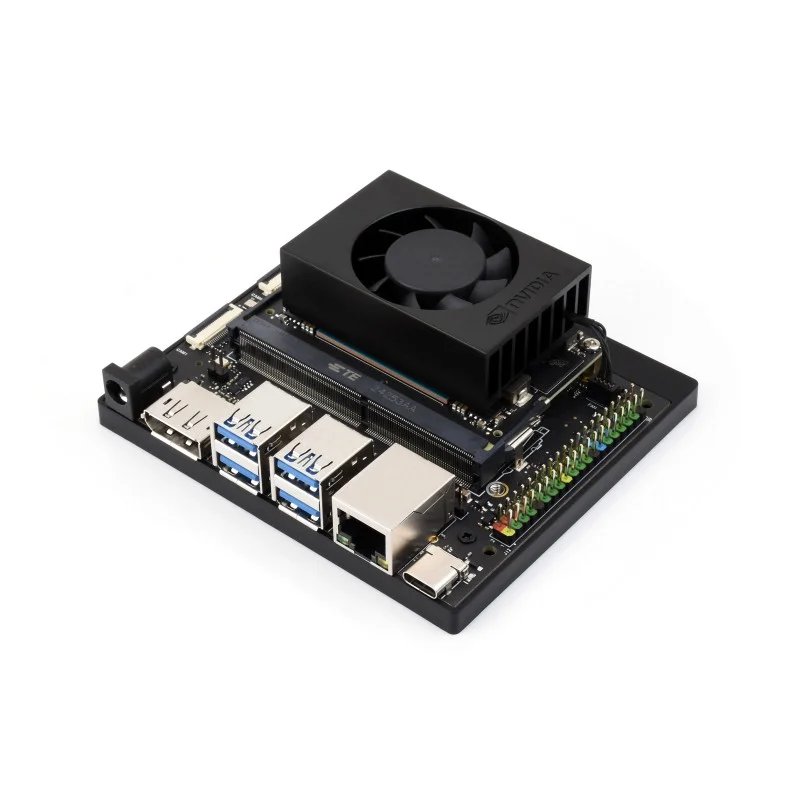

NVIDIA Jetson Orin NX 16GB Super Developer Kit
The developer kit consists of a Jetson Orin Nano 16GB module mounted on a reference carrier board. It is specifically optimized for running modern Transformer-based models, including Large Language Models (LLMs), Vision Transformers, and Vision-Language Models (VLMs) directly at the edge.
Availability:
Available on backorder
₨ 380,000
Available on backorder
NVIDIA Jetson Orin NX 16GB 157 TOPS Super Developer Kit
The Jetson Orin NX SUPER developer kit consists of NVIDIA’s Jetson Orin NX core module and Jetson Orin NX carrier board. RAM has 16GB for choice. The computing power can reach 157 TOPS respectively. With built-in 256GB M.2 SSD that has been written into the system, as well as installed WiFi network card, power supply and other accessories. Users can enjoy Orin NX quickly without complex environment setup steps.
Key Features
- Performance Boost: Delivers a 1.7X improvement in AI performance compared to the original 15W configuration.
- Software-Driven Upgrade: Existing owners of the standard Orin Nano 8GB Developer Kit can unlock these “Super” specs simply by updating to the latest JetPack SDK.
- Rich Connectivity:
- Video: 1x DisplayPort 1.2 (+MST) and support for 1x 4K60 (H.265) video decode.
- Camera: 2x MIPI CSI-2 22-pin connectors.
- USB: 4x USB 3.2 Gen 2 Type-A ports and 1x USB Type-C for UFP.
- Expansion: 40-pin GPIO header (Raspberry Pi compatible layout), M.2 Key E (pre-installed Wi-Fi/BT), and 2x M.2 Key M slots for SSDs.
- Comprehensive Software Stack: Fully supports the NVIDIA AI software stack, including CUDA, TensorRT, and specific frameworks like NVIDIA Isaac for robotics and NVIDIA Metropolis for vision AI.
Specifications
- GPU: 128-core Maxwell
- CPU:Quad-core ARM A57 @ 1.43 GHz
- Memory: 16 GB 64-bit LPDDR4
- Storage: 256gb
- Video Encoder: 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
- Video Decoder: 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30|(H.264/H.265)
- Camera: 2x MIPI CSI-2 DPHY lanes
- Connectivity: Gigabit Ethernet, M.2 Key E
- Display: HDMI 2.0 and eDP 1.4
- USB: 4x USB 3.0, USB 2.0 Micro-B
- Others: GPIO, I2C, I2S, SPI, UART
- Mechanical: 100 mm x 80 mm x 29 mm
Package Include:
- Type B (US, JP) Power Cable
- Type I (CN) Power Cable
- Quick Start and Support Guide
- AI Performance: Up to 157 TOPS (INT8)
- GPU: NVIDIA Ampere architecture with 1,024 CUDA cores and 32 Tensor Cores.
- CPU: 6-core Arm Cortex-A78AE v8.2 64-bit with a max frequency of 1.7 GHz.
- Memory: 16GB 128-bit LPDDR5 with an enhanced bandwidth of 102 GB/s.
- Power Modes: Configurable from 7W to 25W; the new “Super” mode allows for higher performance at 25W.
- Connectivity:
- 1x Gigabit Ethernet port.
- 4x USB 3.2 Gen 2 Type-A ports.
- 1x DisplayPort 1.2 (+MST).
- 2x MIPI CSI-2 22-pin camera connectors.
- 40-pin expansion header (UART, SPI, I2S, I2C, GPIO).
