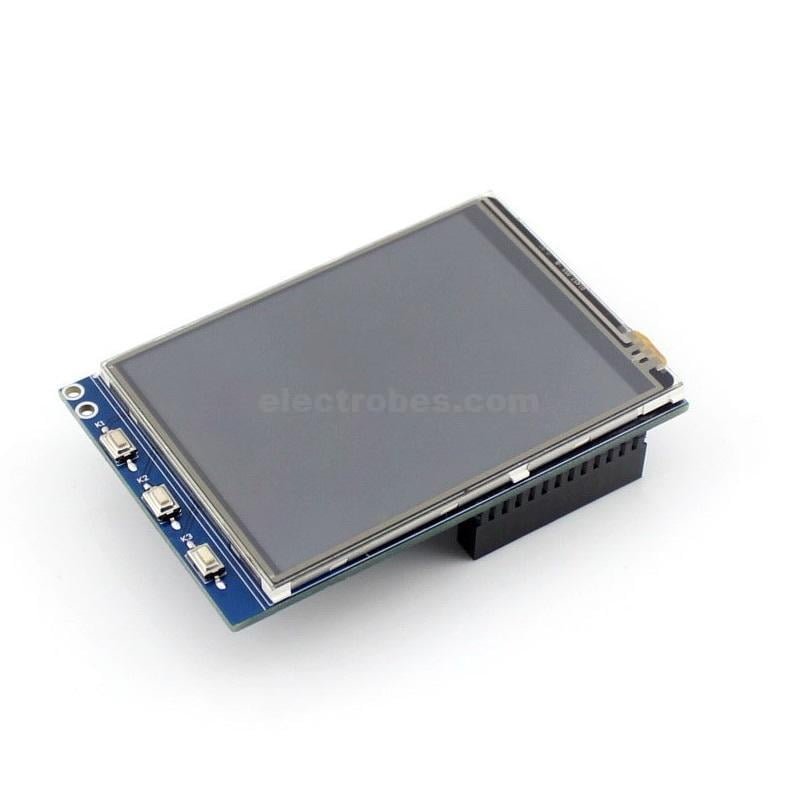

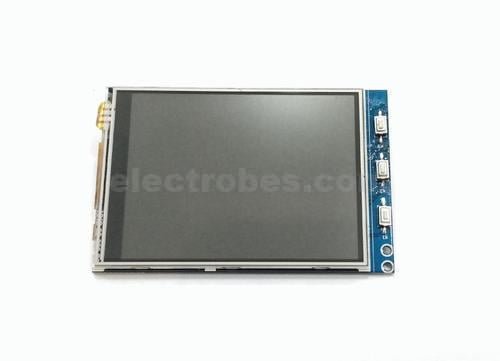

Raspberry Pi 3.2 inch Touch Screen TFT LCD Display 320×240

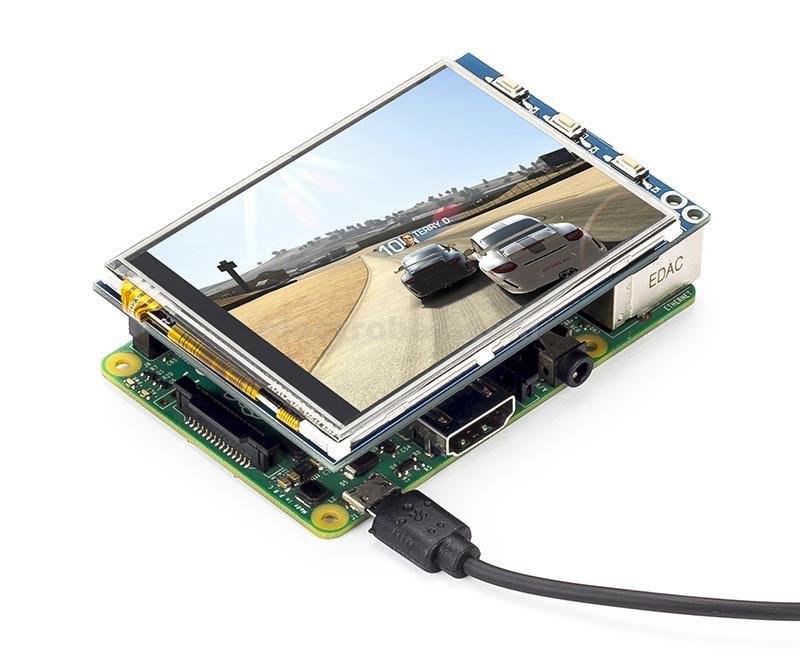

This is a small TFT display designed for Raspberry Pi, it integrates a 3.2 inch with 320×240 16 bit color pixels display and a resistive touch. It is suitable for the Raspberry Pi B+/2B/3B. You can use it to display video play or create smart home monitoring, with your Pi easily now.
In stock
₨ 3,700
In stock
Features
- 320×240 hardware resolution

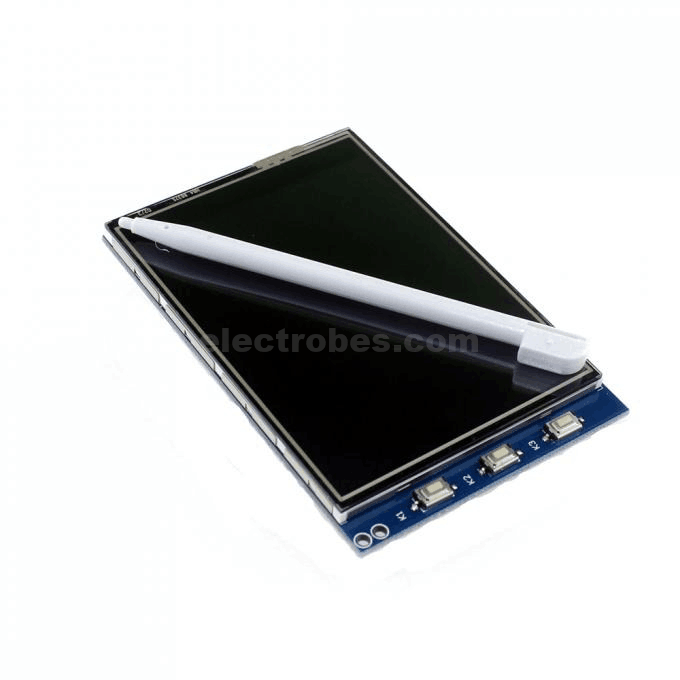

- Resistive touch control
- Supports any revision of Raspberry Pi (directly-pluggable)
- 125MHz High-Speed SPI signal transmission, clear & stable display effect
- Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
- Supports FBCP software driver as well, allows to config software resolution and set up dual-display

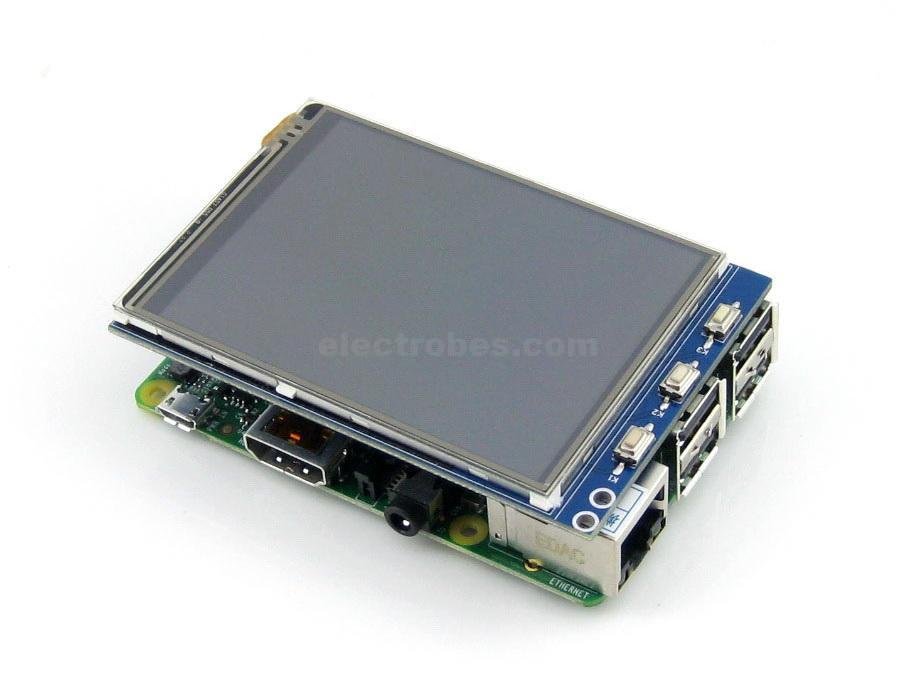

- Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)

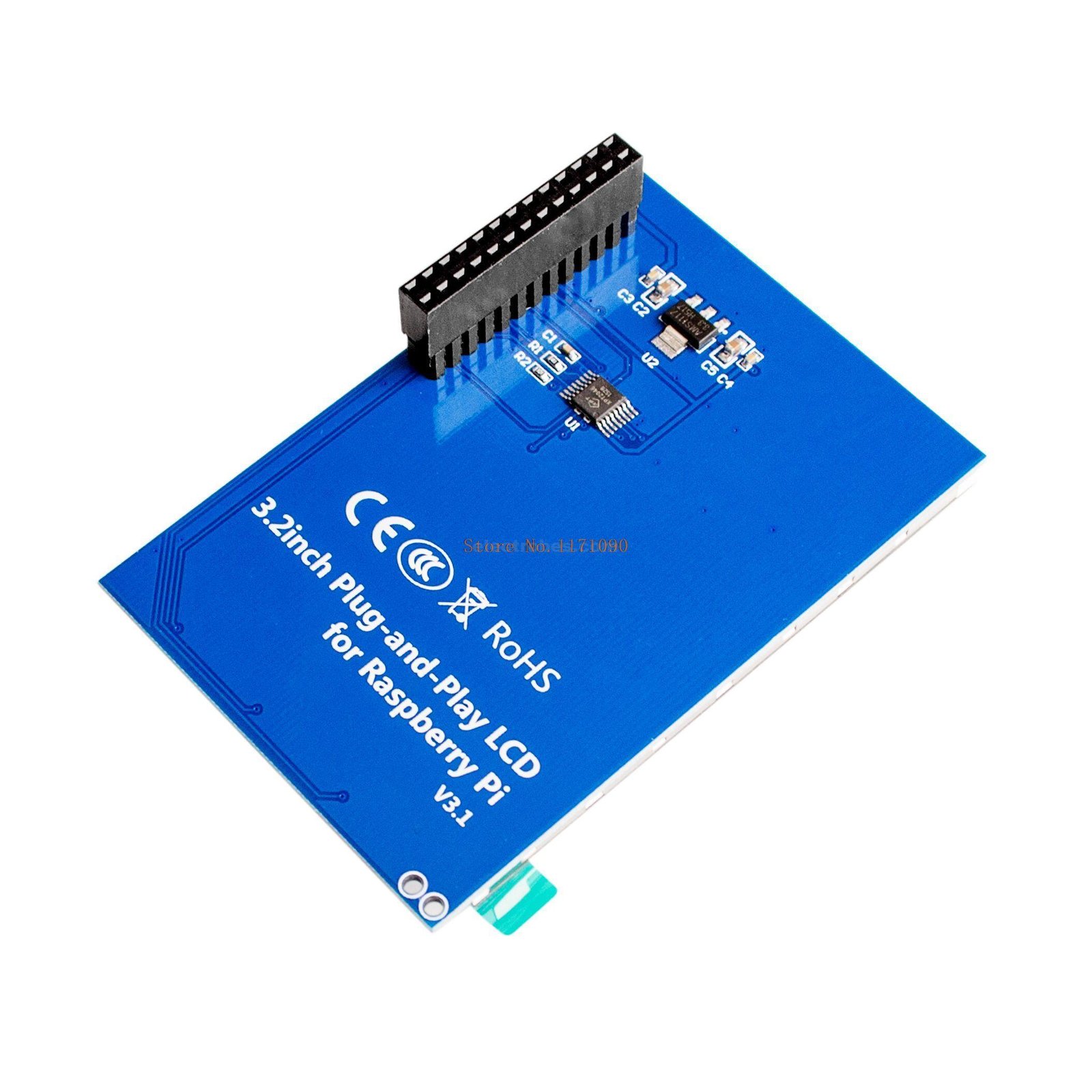

- High quality immersion gold surface plating
- Combined with the Raspberry Pi (refresh rate up to 50Hz), allows you to:
- Watch videos (multi formats like MP4)
- Play video games (RetroPie, take a bite)
- Take photos by touching (up to 17 camera modes)
- Use software keyboard (system interaction without keyboard/mouse)
Interface
| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1, 17 | 3.3V | Power positive (3.3V power input) |
| 2, 4 | 5V | Power positive (5V power input) |
| 3, 5, 7, 8, 10, 12, 13, 15, 16 | NC | NC |
| 6, 9, 14, 20, 25 | GND | Ground |
| 11 | TP_IRQ | Touch Panel interrupt, low level while the Touch Panel detects touching |
| 18 | LCD_RS | Instruction/Data Register selection |
| 19 | LCD_SI / TP_SI | SPI data input of LCD/Touch Panel |
| 21 | TP_SO | SPI data output of Touch Panel |
| 22 | RST | Reset |
| 23 | LCD_SCK / TP_SCK | SPI clock of LCD/Touch Panel |
| 24 | LCD_CS | LCD chip selection, low active |
| 26 | TP_CS | Touch Panel chip selection, low active |
External Dimension
- Backlight: LED
- LCD Type: TFT
- Aspect Ratio: 8:5
- LCD Interface: SPI
- Resolution: 320*480 Pixels
- Touch Screen Type: Resistive

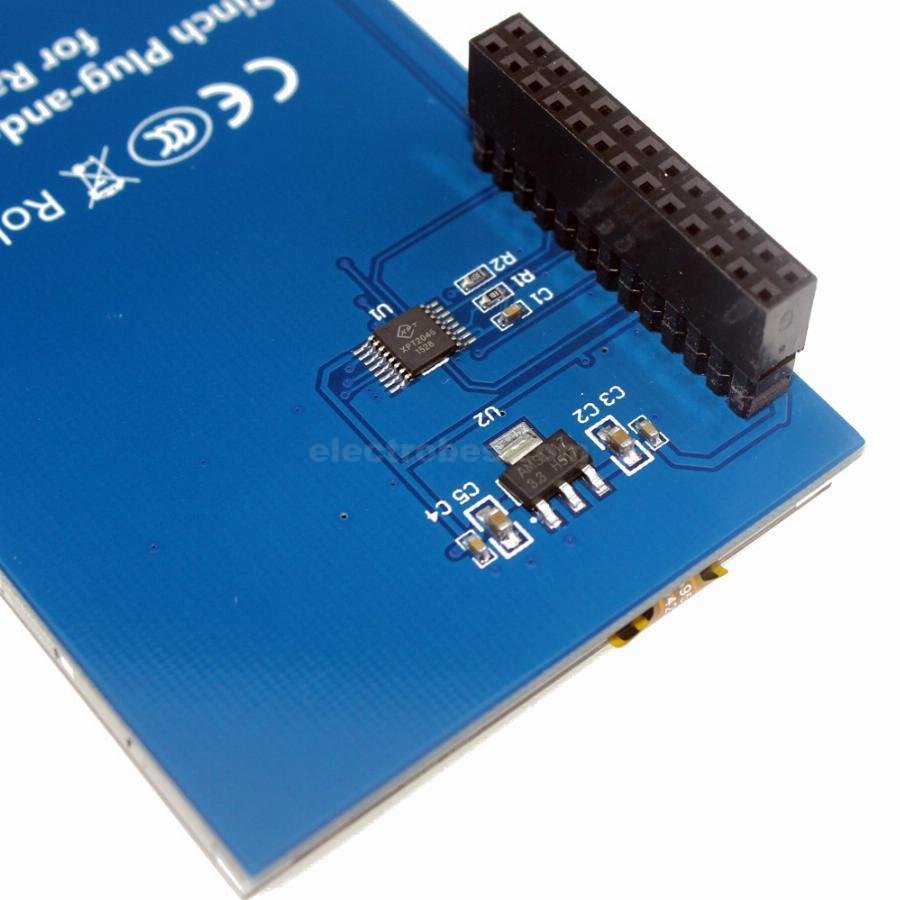

- Touch Screen Controller: XPT2046
- Colors: 65536
- Power Consumption: TBD
- Backlight Current: TBD
- Operating Temp. (℃): TBD
