SK8 8mm RepRap Rod Holder Linear Rail Support Shaft
SK8 8mm Bore Linear Rail Shaft Optical Axis Clamping Guide End Support For Xyz Axis. We also have other parts for CNC and 3D printers in Pakistan.

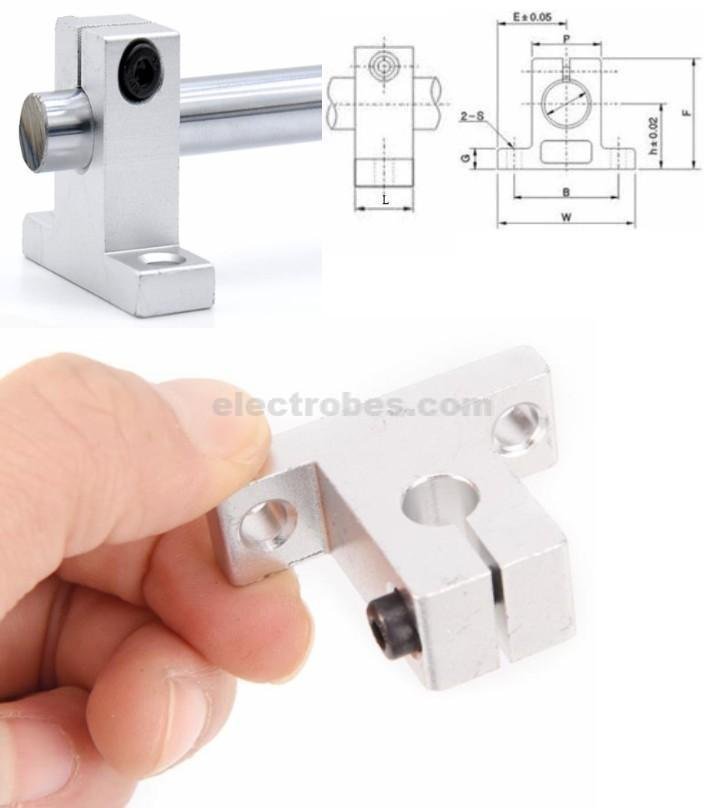

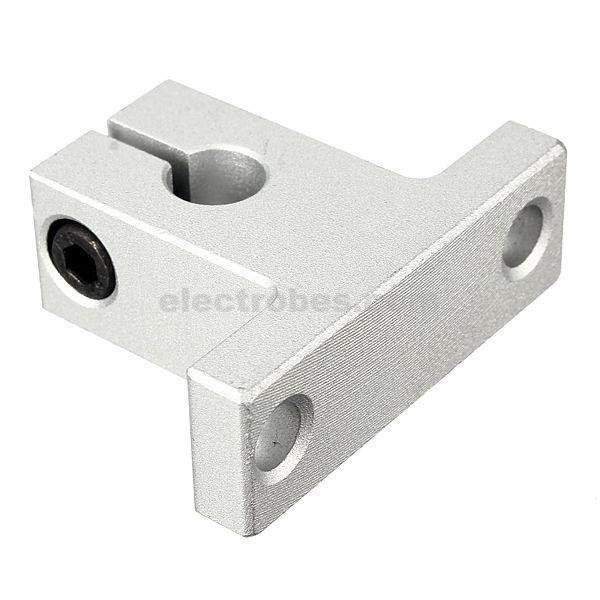

SK8 8mm RepRap Rod Holder Linear Rail Support Shaft
Usable with any 8mm linear guide, you can simply slide the rail through, then tighten the clamp screw at the top to fix it in place. Then use up to 6mm diameter bolts to attach them. If you need to disassemble or otherwise repair your machine, its easy to open up the clamp and remove the rail.
Features:
- SK8 8MM linear bearing rail support XYZ Shaft Table CNC Router SH8A design End Support is used mainly to support Hard Chrome Plated Rods
- Material : Aluminum Alloy,
- Color : Silver
- Bore : 8mm”(Applicable to the optical axis diameter 8mm).
- Clamping Bolt : M3
- Recommended Mounting Bolt : M5(not included here).
- Mounting Hole Distance : 32mm (from center to center)
- Size : 42 x 14 x 33mm (L*W*H).
Package Included :
1x SK8 8mm Linear Rail Support Shaft
SKU: CNC-023
Categories: 3D Printer Parts, CNC & 3D Printers
Tags: 3D printer, 3d printers, 8mm, Bracket, Bushing, CNC, holder, linear, linear guide, Linear Motion, Machinery, pcb, Rail, Rod, shaft, SK8, slide, Support, T8
- Model: SK8
- Shaft OD: 8mm
- Size: 42x14x33mm
- Mounting hole diameter: 5.5mm
- Mounting holes center distance: 32mm
- Weight: 25g
