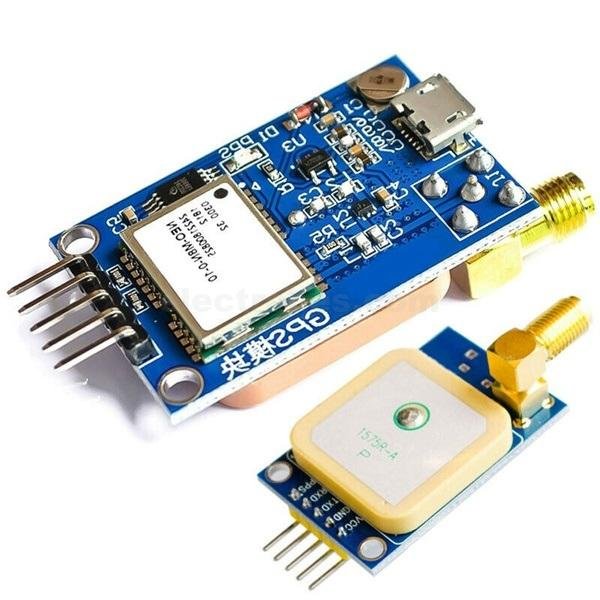

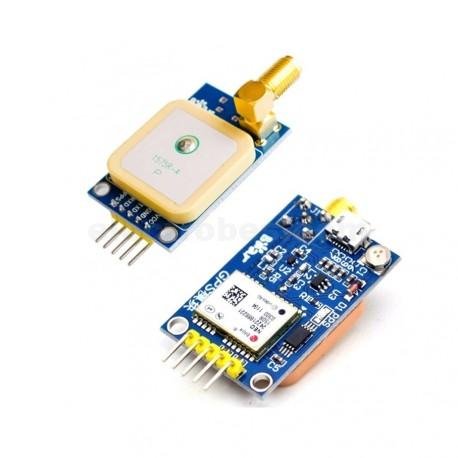

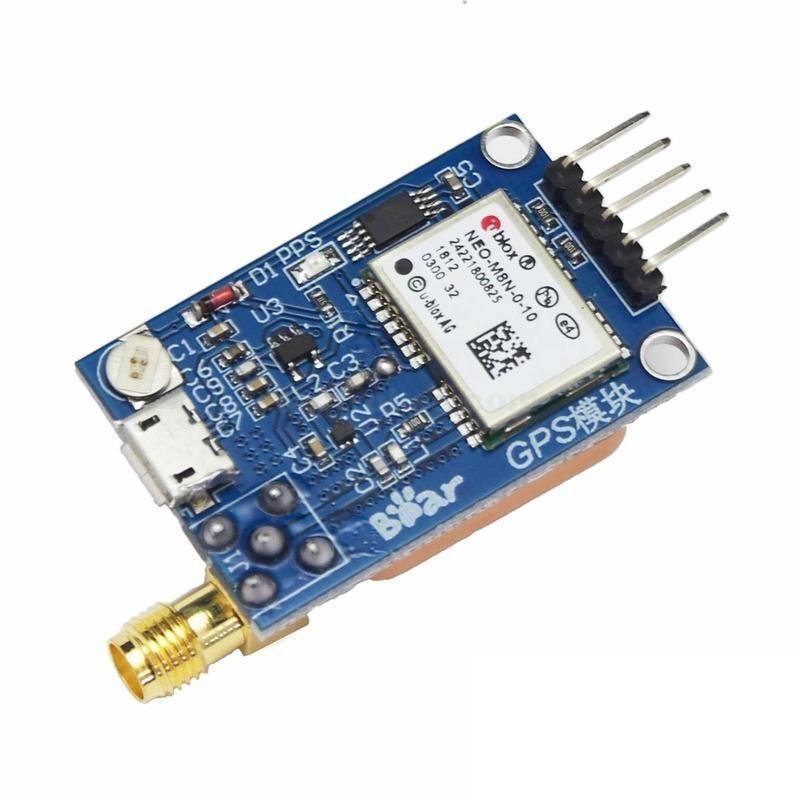

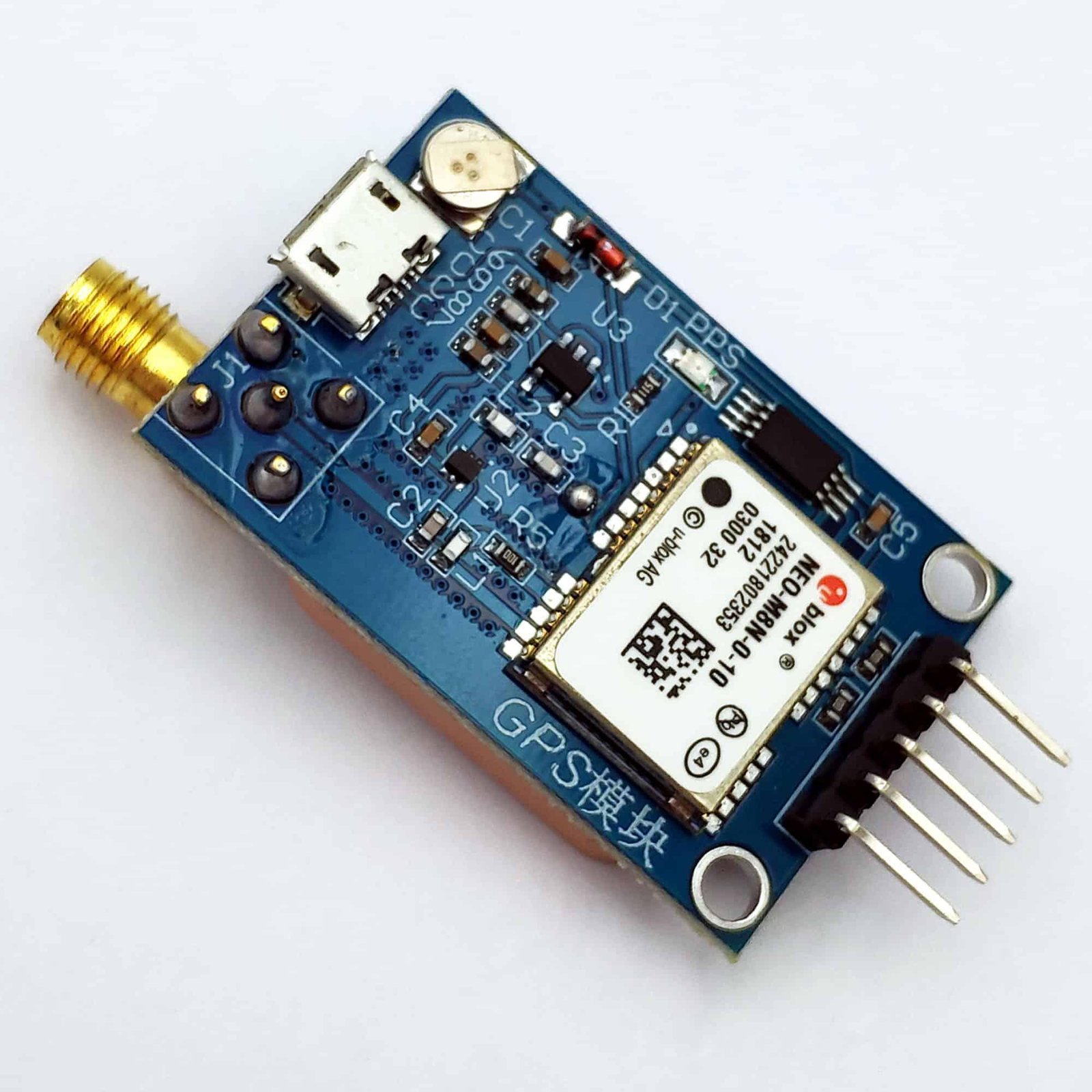

Ublox-NEO-M8M GPS Positioning Module GPS Navigation Module UBLOX High Precision
Ublox-NEO-M8N GPS Positioning Module GPS Navigation Module UBLOX High Precision
Ublox-NEO-M8M GPS Positioning Module GPS Navigation Module UBLOX High Precision
Features:

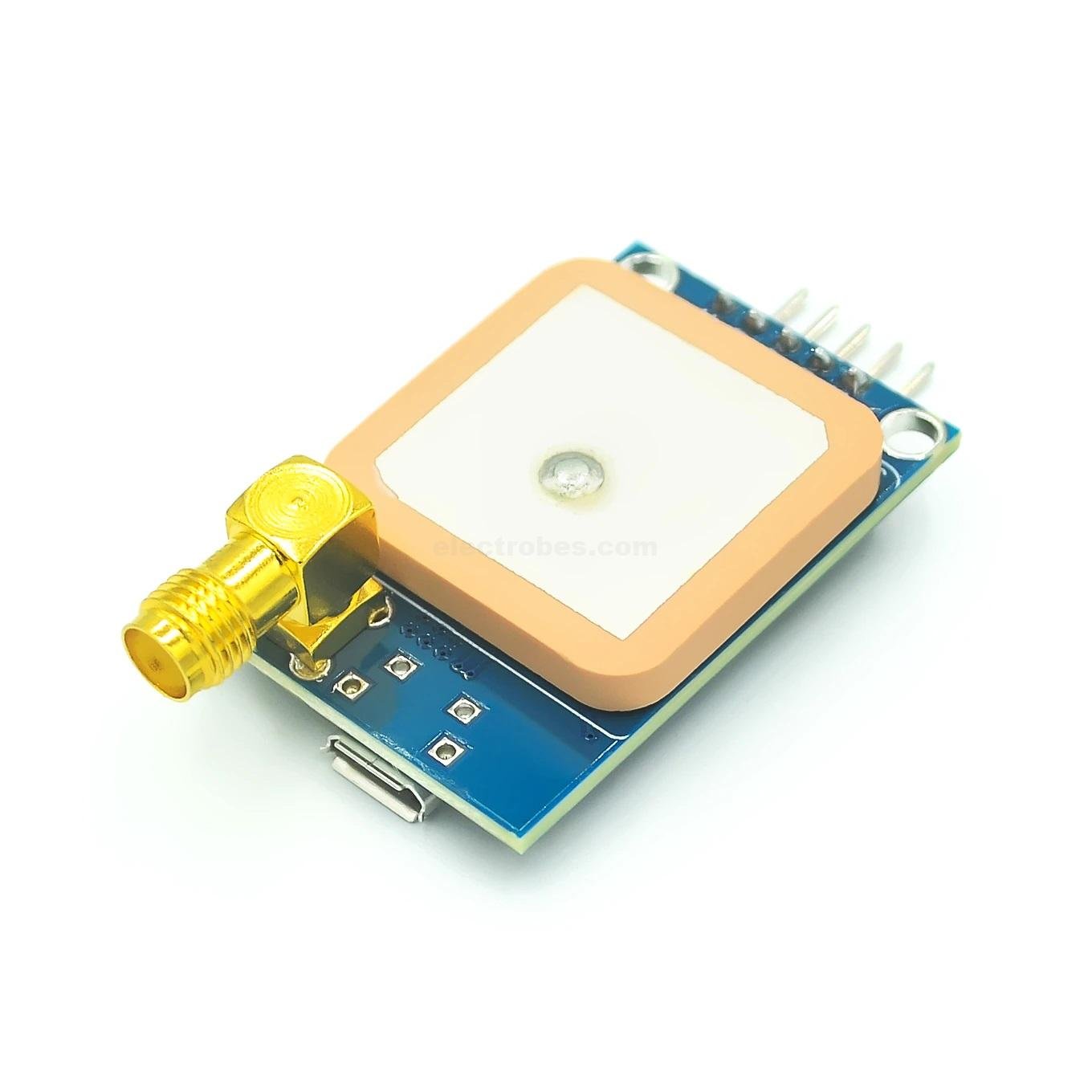

- with SMA antenna interface, can be connected to a variety of active antennas
- comes with EEPROM, can save configuration information
- comes with a rechargeable backup battery, you can power down to maintain ephemeris data
- Micro USB interface, only need a USB cable to connect to the computer, you can use the host computer software, self-supplied serial port function, no need to purchase other serial port module
- compatible with 5V/3.3V voltage, adapt to various types of single-chip
- support Raspberry Pi, plug in USB use, no need to drive
- exclusive with GPS modification configuration method, illustrated
- support firmware upgrade
- self-contained signal amplifier

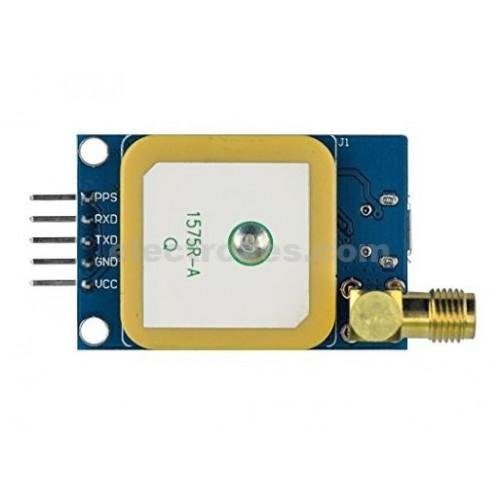

Functions of the pins:
- VCC: Power supply (3.3-5V)
- GND: connect Mass
- TXD: module serial port transmission pin (TTL level, cannot be directly connected to RS232 level), can be connected to the microcontroller’s RXD
- RXD: serial port of the pin receiving port (TTL level, can not be directly connected to RS232 level), can be connected to the TXD of single chip microcomputer
- PPX: pulse output angle
SKU: 0173
Categories: Modules and Breakout Boards, Wireless Communication
Tags: Antenna, GPS, GPS Navigation Module, GPS Positioning Module, GPS Tracking device, tracking module, Ublox, Ublox-NEO-M8N
- Supply voltage: 3.3V – 5V DC
- Operating current: 45mA
- baud rate: 9600 (configurable from 4800 to 115200)
- Navigation update rate: up to 5Hz (1HZ by default)
- Warm-up time: 27 seconds (fastest) hot start start: 1 second
- Operating temperature range: -40 to +85°C
- Separate GPS antenna 18 x 18 mm
- Dimensions: 22 x 30 x 13 mm
- Weight: 19g
