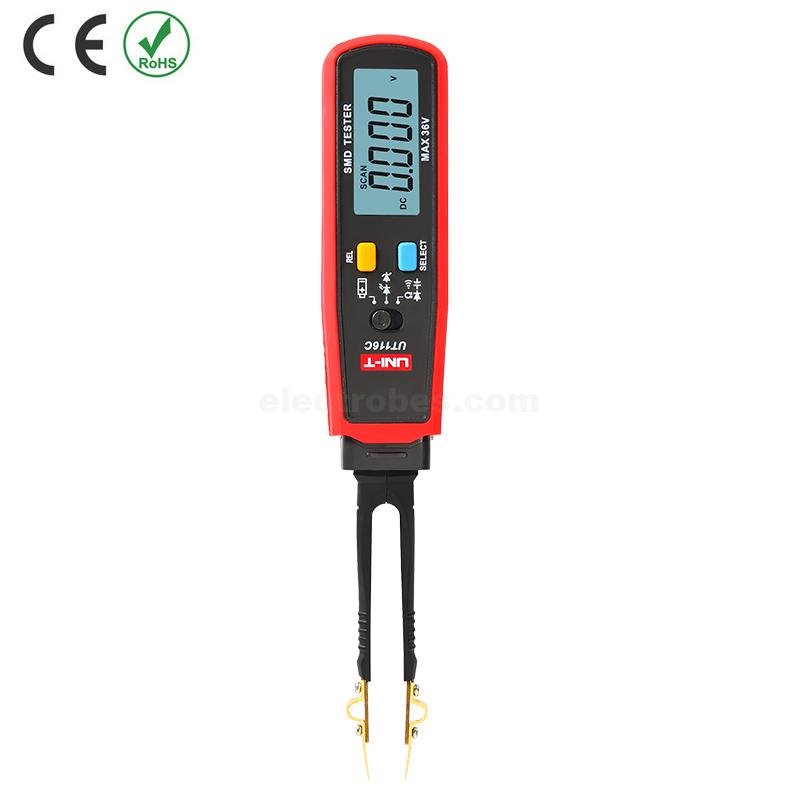

UNI-T UT116C LED Digital Continuity Resistance Capacitance SMD Tester Auto Range RCD
UNI-T UT116C LED Digital Continuity Resistance Capacitance Tester Auto Range RCD
Available on backorder
₨ 5,250
Available on backorder
UNI-T UT116C LED Digital Continuity Resistance Capacitance Tester Auto Range RCD
This multimeter is designed to safely and accurately troubleshoot a variety of automotive and household electrical problems. It is provided with a LCD display for clear reading. It can be used to measure DC/AC voltage/current, resistance, capacitance, frequency, diode, triode and continuity test, etc.
Features:
- 36V DC voltage measurement
- Battery measurement (10mA)
- Resistance, capacitance ( up to 100mF), continuity, diode measurement
- The pen can be rotated by 180°, which is convenient for reading and diode/LED
- Zener diode polarity test
Document
| Model | UT116C |
| Display count | 6000 |
| Resistance | 60MΩ |
| Capacitance | 100mF |
| Diode test | 3.2V |
| LED/stabilivolt | About 21V/1mA |
| Continuity Test | ＜50Ω |
| Battery test | Load current ≈ 10mA |
| Auto range | √ |
| Auto power off | √ |
| General Characteristics | |
| Power | 1.5V battery (R03) x 2 |
| Display | 39mm x 20mm |
| Product color | Red and grey |
| Product net weight | About 80g |
| Product size | 204mm x 33mm x 25mm |
