UNI-T UT325F Industrial Grade 4-Channel Contact Type Digital Thermometer
- 4-channel temperature measurement
- The channel is compatible with seven thermocouple types: J, K, T, E, R, S and N.
- Calculation of maximum/minimum/average/difference.
- Support 72000 data storage.
- Supports Type-C connection to PC software and Bluetooth connection to mobile apps to control devices or data transfer.
- Supports USB power supply to meet long-term measurement requirements.
Available on backorder
₨ 22,500
Available on backorder

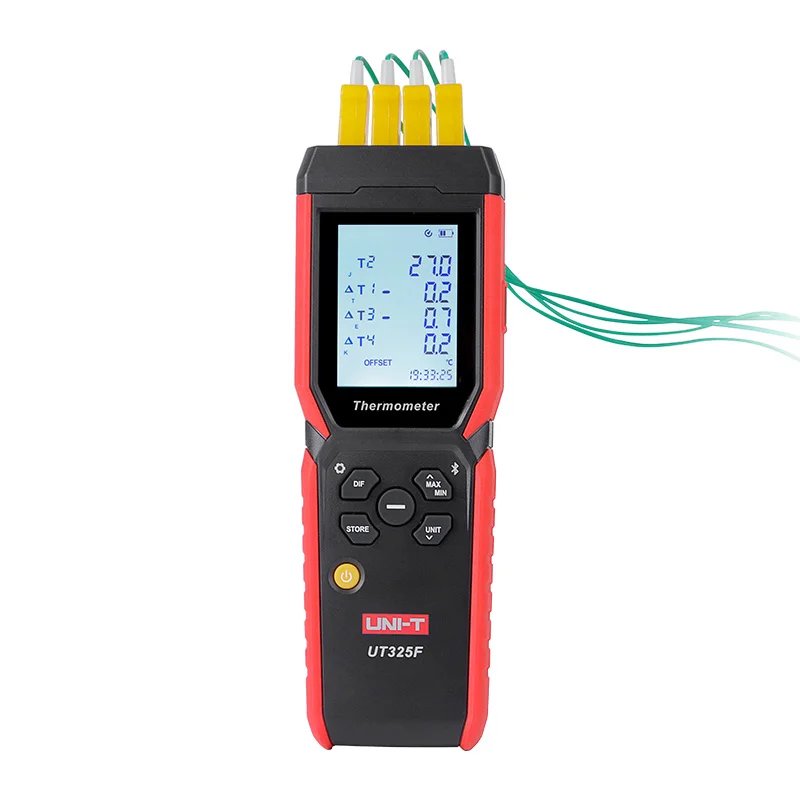

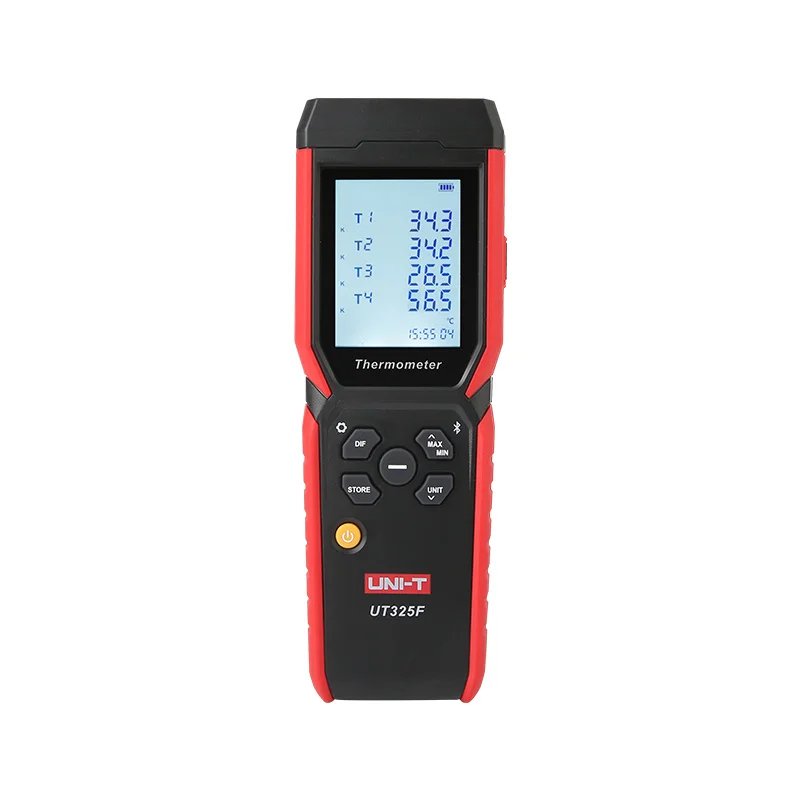

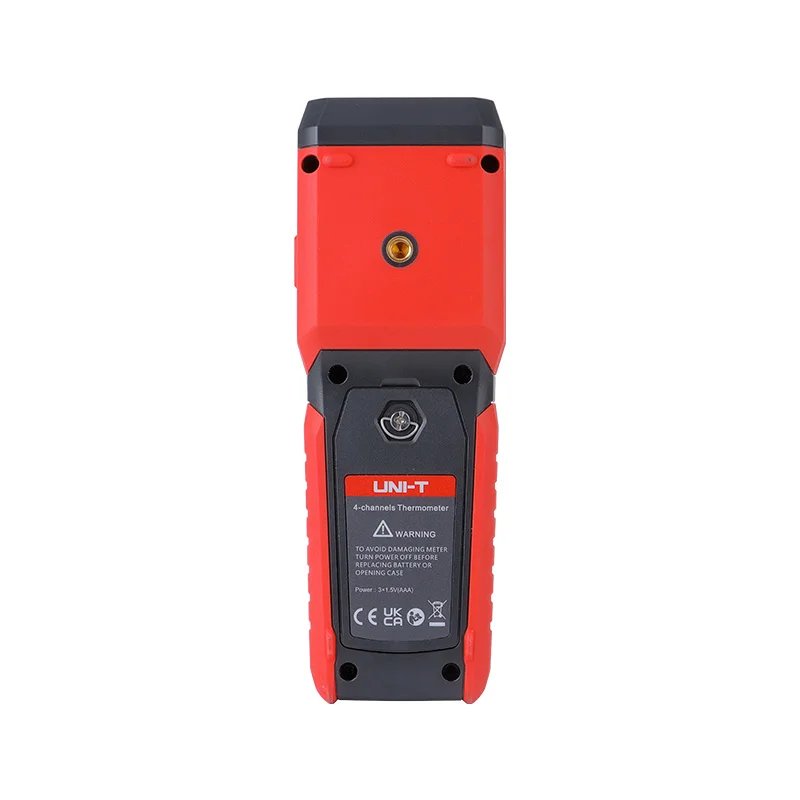

UNI-T UT325F Industrial Grade 4-Channel Contact Type Digital Thermometer
Product Description:
UT325F 4-Channel Thermometer is a high- accuracy digital thermometer that uses a thermocouple as the temperature probe.It widely used in electronic and mechanical device monitoring, laboratory test, hardware processing, concrete placing.
Specifications:
-
Model: UNI-T UT325F
-
Product Type: Contact Type Digital Thermometer
-

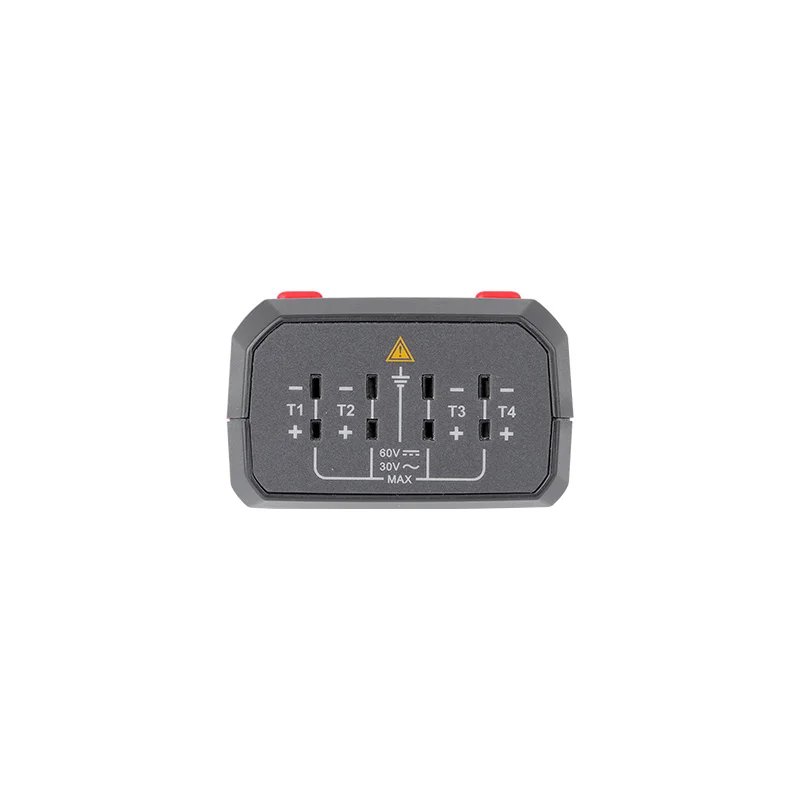

Input Channels: 4 (T1, T2, T3, T4)
-
Thermocouple Type: Type-K
-
Temperature Measurement Range: −50°C to 1300°C
-
Accuracy: ±(0.5% + 1°C)
-
Resolution: 0.1°C / 0.1°F
-
Display: Large LCD with backlight
-
Temperature Units: °C / °F selectable
-
Measurement Functions: T1/T2/T3/T4, MAX, MIN, AVG, Differential
-
Sampling Rate: Fast response time
-
Power Supply: Battery operated
-
Operating Environment: 0°C to 40°C
-
Housing: Rugged industrial-grade casing
Applications:
-
HVAC system testing & balancing
-
Industrial process monitoring
-
Electrical and electronics testing
-
Laboratories & R&D
-
Food processing & safety checks
Package includes:
4 x thermocouple
1 x user manual
1 x USB Cable
| Specification | UT325F | |
| Thermocouple types | Type K, J, T, E, R, S and N | |
| Measuring range | Type K thermocouple | -200.0℃~1372℃ (-328.0℉~2501℉) |
| Type J thermocouple | -210.0℃~1200℃(-346.0℉~2192℉) | |
| Type T thermocouple | -250.0℃~400.0℃(-418.0℉~752.0℉) | |
| Type E thermocouple | -150.0℃~1000℃(-238.0℉~1832℉) | |
| Type R thermocouple | 0℃~1767℃(32℉~3212℉) | |
| Type S thermocouple | 0℃~1767℃ (32℉~3212℉) | |
| Type N thermocouple | -200.0℃~1300℃(-328.0℉～2372℉) | |
| Display resolution | 0.1℃/℉/K (<1000) | |
| 1.0℃/℉/K (≥1000) | ||
| Accuracy | ±(0.2%+0.5℃) | Below -10℃: The original basis + 0.5℃; Below -200℃: The original basis + 2℃; Type T below -200℃: For reference only |
| ±(0.2%+0.9℉) | ||
| The accuracy is applicable to the ambient temperature of 18℃ to 28℃, and it does not include the error of the thermocouple | ||
| Repeatability accuracy | ±0.1%+0.3℃ | |
| Response time | About 500ms | |
| Measurement functions | Unit selection | ℃/℉/K |
| Data hold | √ | |
| Auto power off | √ | |
| Measurement modes | MIN/MAX/AVG | |
| Difference | View temperature difference between any two channels | |
| Timing measurement | The recording interval can be set for 1s-24h to record the measurement data periodically | |
| System functions | Data recording | 72000 |
| Backlight | Turn on/off | |
| Data transmission | Type-C USB, Bluetooth | |
| Battery status | √ | |
| Power frequency anti-interference | 50/60Hz | |
| Drop proof | 1m | |
| Operating time | ﹥30h | |
| Operating temperature | -10℃~50℃ (14℉~122℉) | |
| Storage temperature | 20℃~60.0℃ (-4℉~140℉) | |
| Operating humidity | 90%RH (non-condensing) | |
| Characteristic | ||
| Standard accessories | 3*AAA battery, 4*thermocouples, product,user manual,safety instructions, gift box | |
| Power | 3*AAA alkaline zinc-manganese battery | |
| Product size | 178×63×38mm | |
| Product net weight | ||
| Standard quantity per carton | 10pcs | |
| Standard carton size | 395×330×330mm | |
