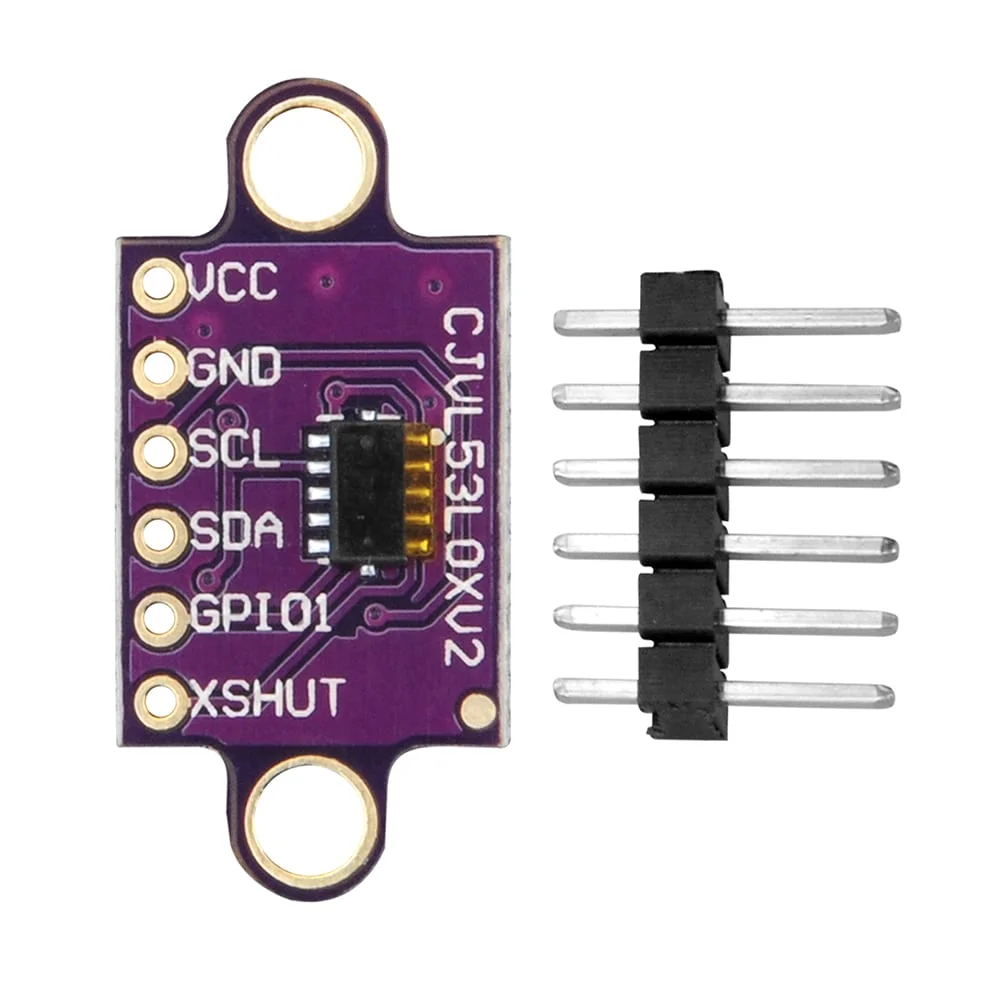

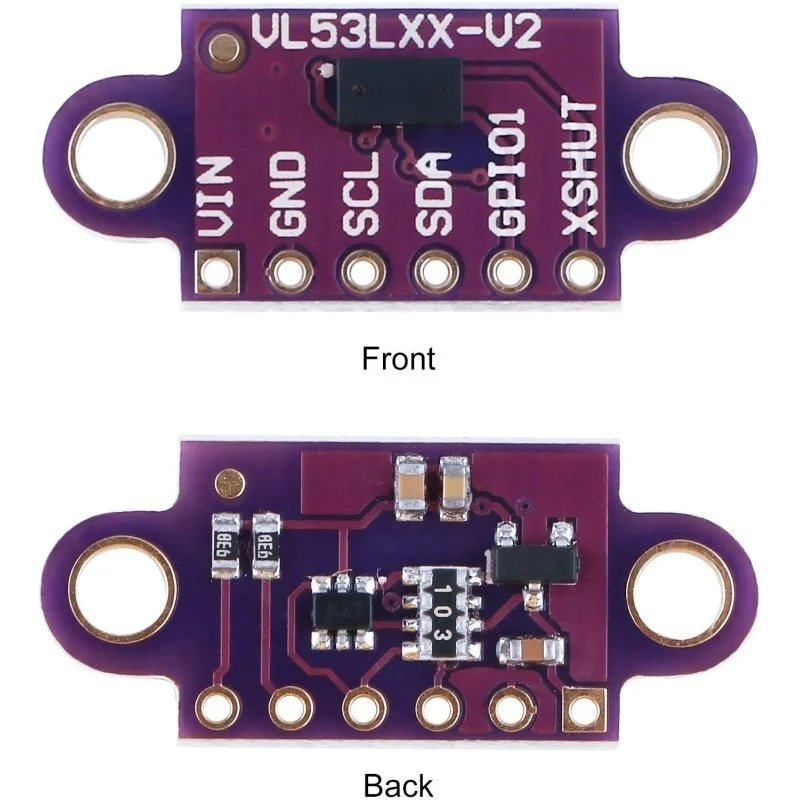

VL53L0X Time-of-Flight Distance Sensor Flight Measurement ToF Laser Range Finder 940nm Laser Detect Module for Arduino

Product Description:

The VL53L0X Time of Flight Distance Sensor is a compact and high-precision laser ranging module capable of measuring distances using advanced Time-of-Flight (ToF) technology. Unlike traditional infrared sensors, the VL53L0X accurately measures distance by calculating the time taken for a laser pulse to reflect back from an object.

This sensor provides fast, accurate, and reliable distance measurements with excellent ambient light immunity. It communicates via the I2C interface, making it easy to integrate with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers.

Its small size, low power consumption, and precise ranging capability make it ideal for robotics, obstacle detection, gesture recognition, automation systems, drones, and smart devices.

 Specifications:

• Sensor Model: VL53L0X
• Measurement Technology: Time-of-Flight (ToF) Laser Ranging
• Communication Interface: I2C
• Operating Voltage: 2.6V – 5V DC
• Logic Level: 3.3V / 5V compatible
• Measurement Range: Up to 2 meters (typical)
• Resolution: Millimeter-level accuracy
• Laser Type: VCSEL (Vertical Cavity Surface Emitting Laser)
• Field of View (FoV): Approx. 25°
• Operating Temperature: -20°C to +70°C
• Power Consumption: Low power operation
• Board Type: Compact breakout module

 Key Features:

•  Accurate Distance Measurement
  Uses laser Time-of-Flight technology for precise ranging.
•  Fast Response Time
  Provides quick and stable distance readings.
•  Ambient Light Immunity
  Performs better than traditional IR sensors in varying lighting conditions.
•  I2C Communication Interface
  Easy integration with popular microcontrollers and development boards.
•  Compact & Lightweight Design
  Suitable for portable and embedded applications.
•  Low Power Consumption
  Ideal for battery-powered projects.
•  Perfect for Robotics & Automation
  Useful for obstacle avoidance, gesture sensing, and smart systems.
•  Easy to Program
  Compatible with Arduino and Raspberry Pi libraries.
