180 Degree AC 85-265V Human Infrared Sensor Switch Light Sensor Monitoring Spotlights PIR Switch
This is a 220V AC human infrared sensors, pyroelectric infrared technology, the use of industrial district-level chip, intelligent control, set energy saving, convenient and environmentally friendly one, very convenient. This module also comes in 12V DC variant.
Availability:
In stock
₨ 980
In stock

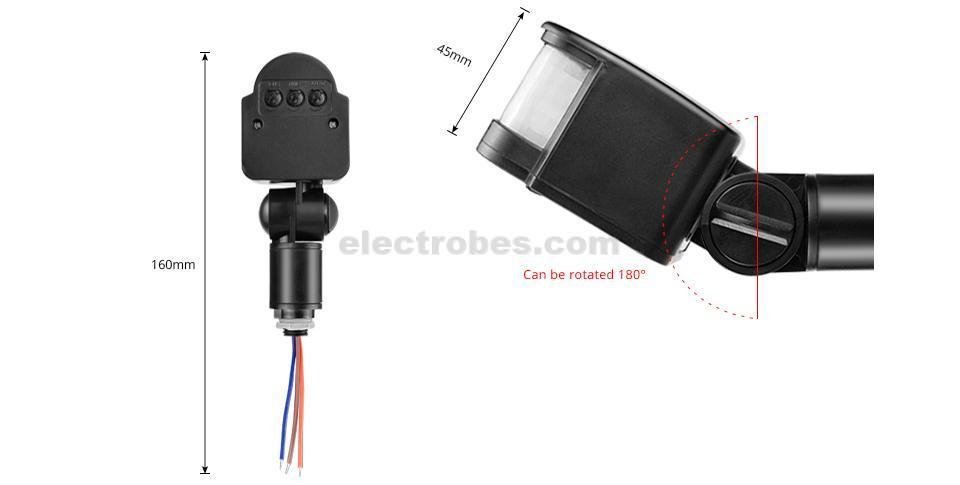

180 Degree AC 85-265V Human Infrared Sensor Switch Light Sensor Monitoring Spotlights PIR Switch
This is a 220V AC human infrared sensors, pyroelectric infrared technology, the use of industrial district-level chip, intelligent control, set energy saving, convenient and environmentally friendly one, very convenient. This module also comes in 12V DC variant.
Features :
- Built-human infrared sensor module, sensor module light effects, delay switch module.
- load capacity, strong anti-jamming capability.
- people into the sensing range, can be automatically opened, after leaving the automatic delay off,
- can automatically identify day and night, and the external environment illuminance can freely choose the starting job,
- Automatic work to do in the evening, during the day and closed. Users can adjust;
- Light time is adjustable and can be adjusted by the user according to local conditions.
Adjustment
LUX
Regulate the work day or night.
A : When transferred to the position of the sun, the sensor-day work;
B : When transferred to the position of the moon,
the sensor does not work during the day, at night automatically enter the working state.
Time
Is to adjust the sensor delay time (10 ± 2sec – 7 ± 1min)
Delay time is the sensor sensitive to the people, the people left the sensing area, the sensor delay off time.
Sense
Is to adjust the sensor sensitivity. Generally do not need adjustment.
- Working Voltage: AC 85-265V
- Sensing angle: 180 degree
- Sensing distance: Max 12m (25℃) (Adjustable)
- Sensor delay: 5s – 6min (Adjustable)
- LUX Setting: 2 – 2000LUX (Adjustable)
- Material: ABS
- IP rating: IP65
- Installation Height: 1.8m – 2.5m
- Lifespan: 50,000 hours
- Working temperature: –10℃ ~ +40℃
- Working humidity: less than 93% RH
- Item size: 15.6 * 6.0 * 4.7cm / 6.1 * 2.4 * 1.9in (L * W * H)
- Item weight: 118g / 4.2oz
- Package size: 20 * 14 * 4.7cm / 7.9 * 5.5 * 1.9in (L * W * H)
- Package weight: 128g / 4.5oz
