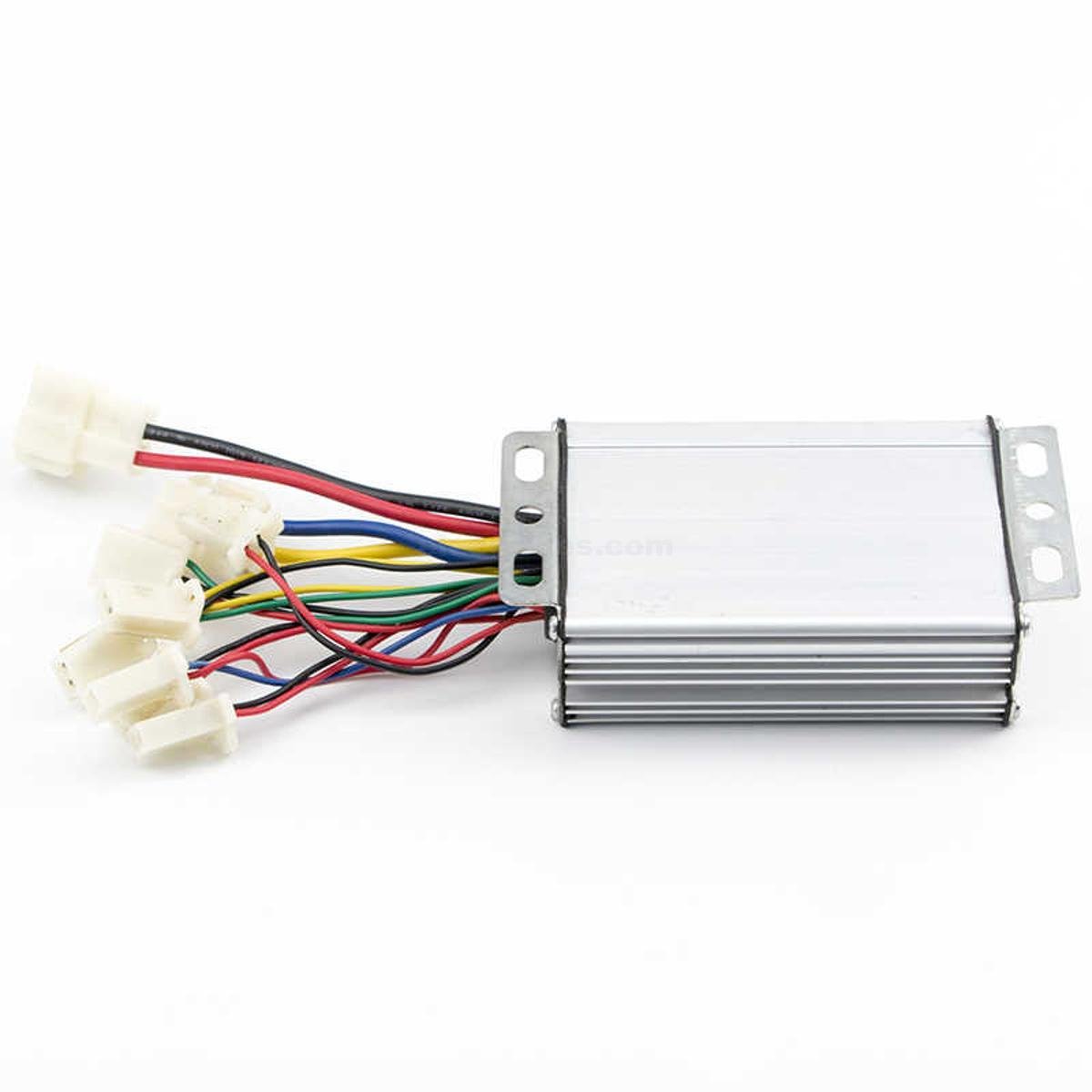

24V 500W Brushed Motor Speed Controller for E-bike bicycle

Products Details:

• Voltage:  48V /36V
• Power: 500W
• Controller Style: Brushed DC
• Match Motor: 500W Brush DC Motor / 350w Brush DC Motor
• Under-voltage protection: 31.5+-0.5V / 42+-0.5V
• Used for: Electric Motorcycle, E-bike, Electric Scooter, EV car ,DIY motor parts etc.

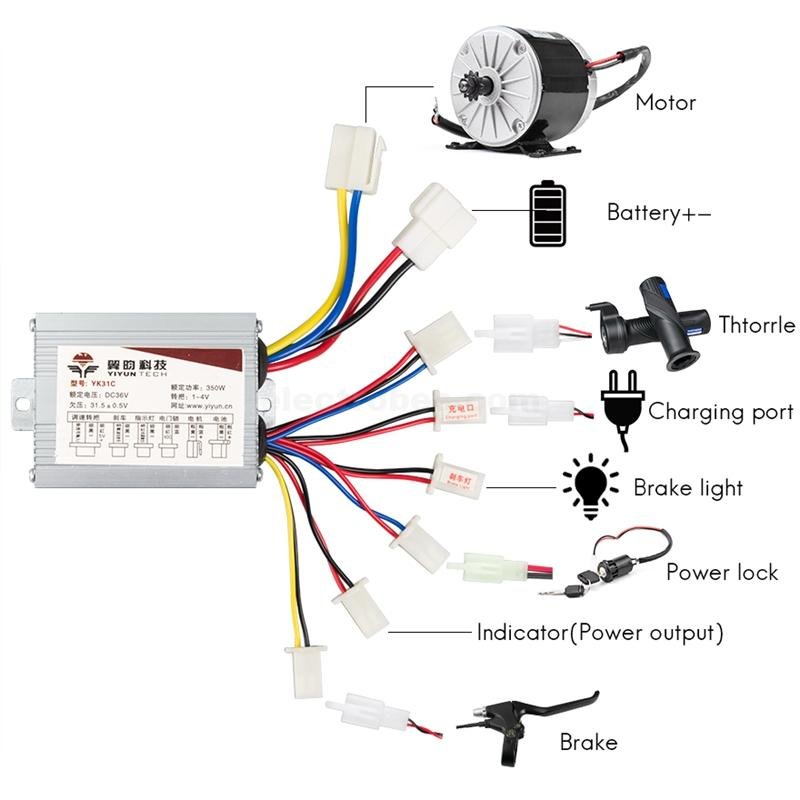

Installation Information:

• Power ( rough red connect the positive pole ,rough black connect the negative )
• Motor ( rough blue connect the positive pole ,rough yellow connect the negative )
• Indicator light (thin black connect the negative , thin red connect the power output )
• Brake light
• Brake (thin black connect the negative , think yellow connect brake signal )
• Charging port
• Electric lock
• Speed handle ( thin red connect +5V , thin black connect negative , green connect signal )

Package Included:

• 1 x 500w Motor Brush Controller
