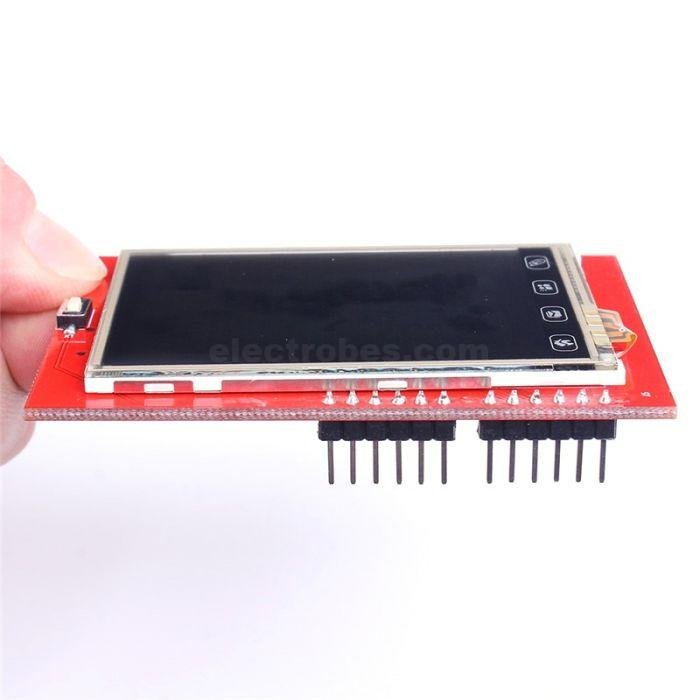

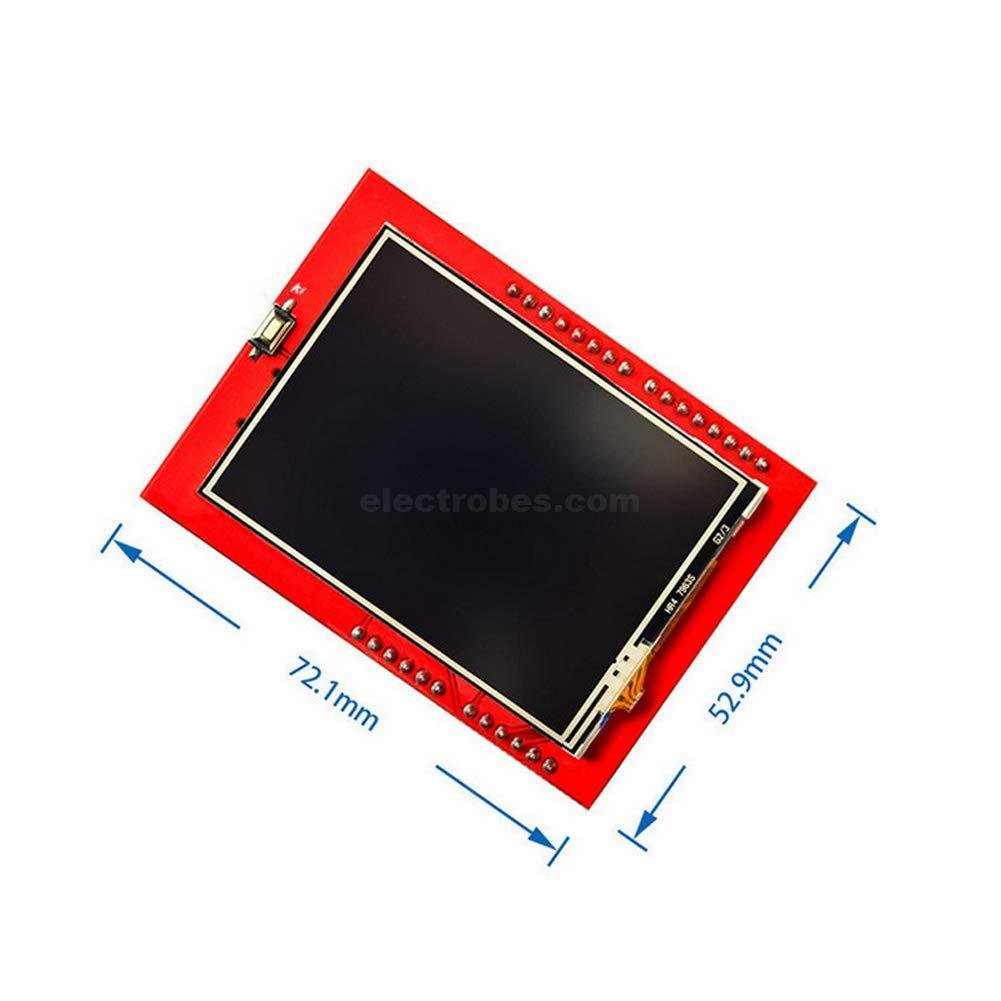

2.4 Inch Touchscreen TFT LCD Display Screen Shield Module For Arduino UNO R3 Mega2560 DUE Boards

Specification:

• LCD Type: TFT TRANSMISSIVE
• Display Interface: Touch
• Driver IC: ILI9341
• Display size: 2.4 inch
• Resolution (dots): 240RGB x 320Dots
• Backlight: White LED
• Color Depth: 262K/65K
• Only need 4 IO ports to use or SPI directly

Features:

• Bright, 4 white-LED backlight (You can connect the transistor to a digital pin for backlight control.)
• Uses digital pins 5-13 and analog 0-3, which means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD.
• Colorful, 18-bit 262,000 different shades.
• 4-wire resistive touchscreen.
• spfd5408 controller with built in video RAM buffer.
• 8 bit digital interface, plus 4 control lines.
• 5V compatible, use with 3.3V or 5V logic.

Note: The pins must be left in the right state after touch screen operations. Otherwise, the screen won’t function correctly.

Package included:

1 x 2.4 inch TFT LCD Display Touch Screen Module
1 x Touch Pen
