48/60/72V 3000W Brushless Electric Bike Hub Motor E-bike BLDC Motor with Disc Braking System

48-72V 3000W Electric Bike Hub Motor E-bike Brushless Motor Rear Wheel Drive with Disc Braking System

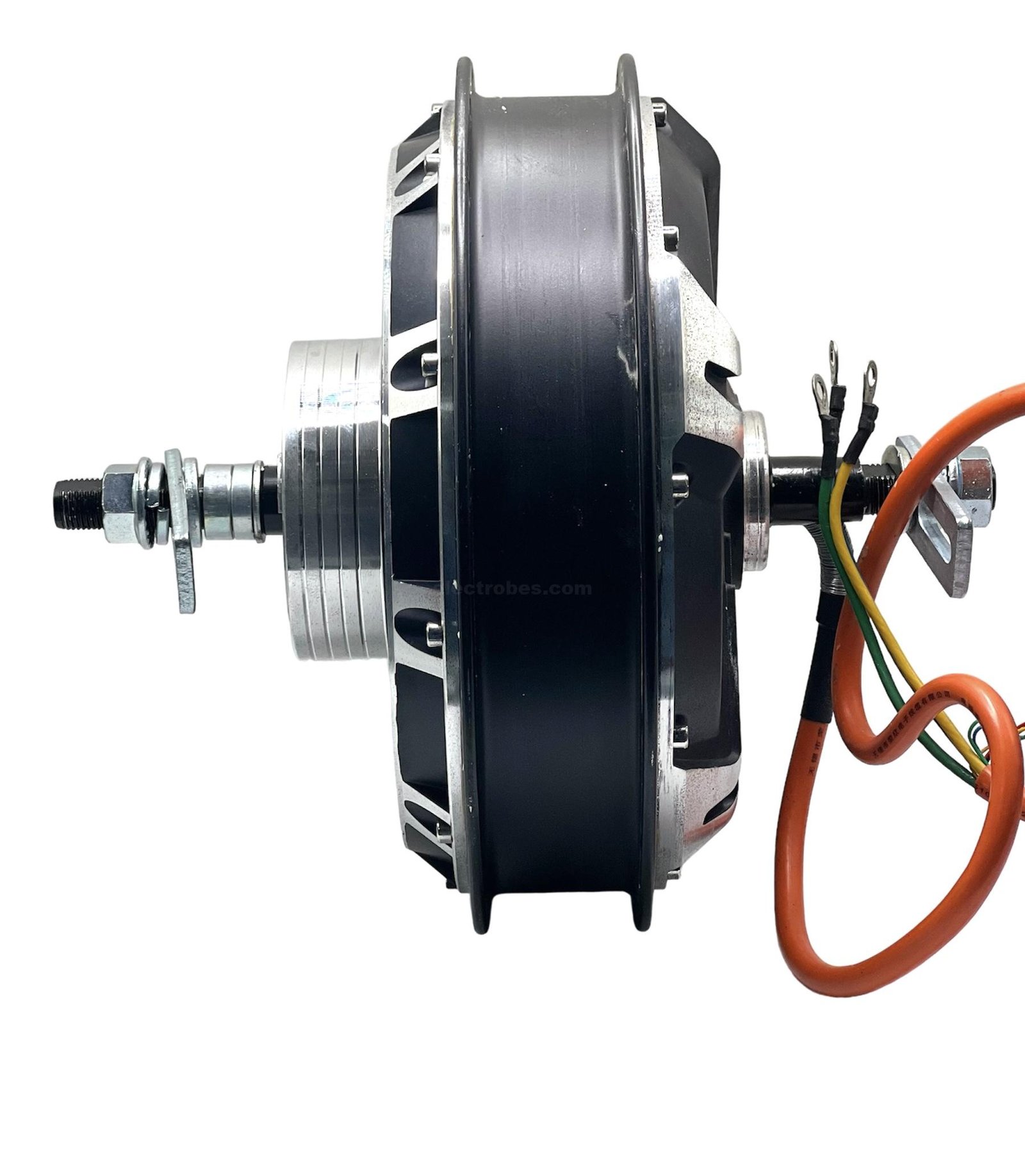

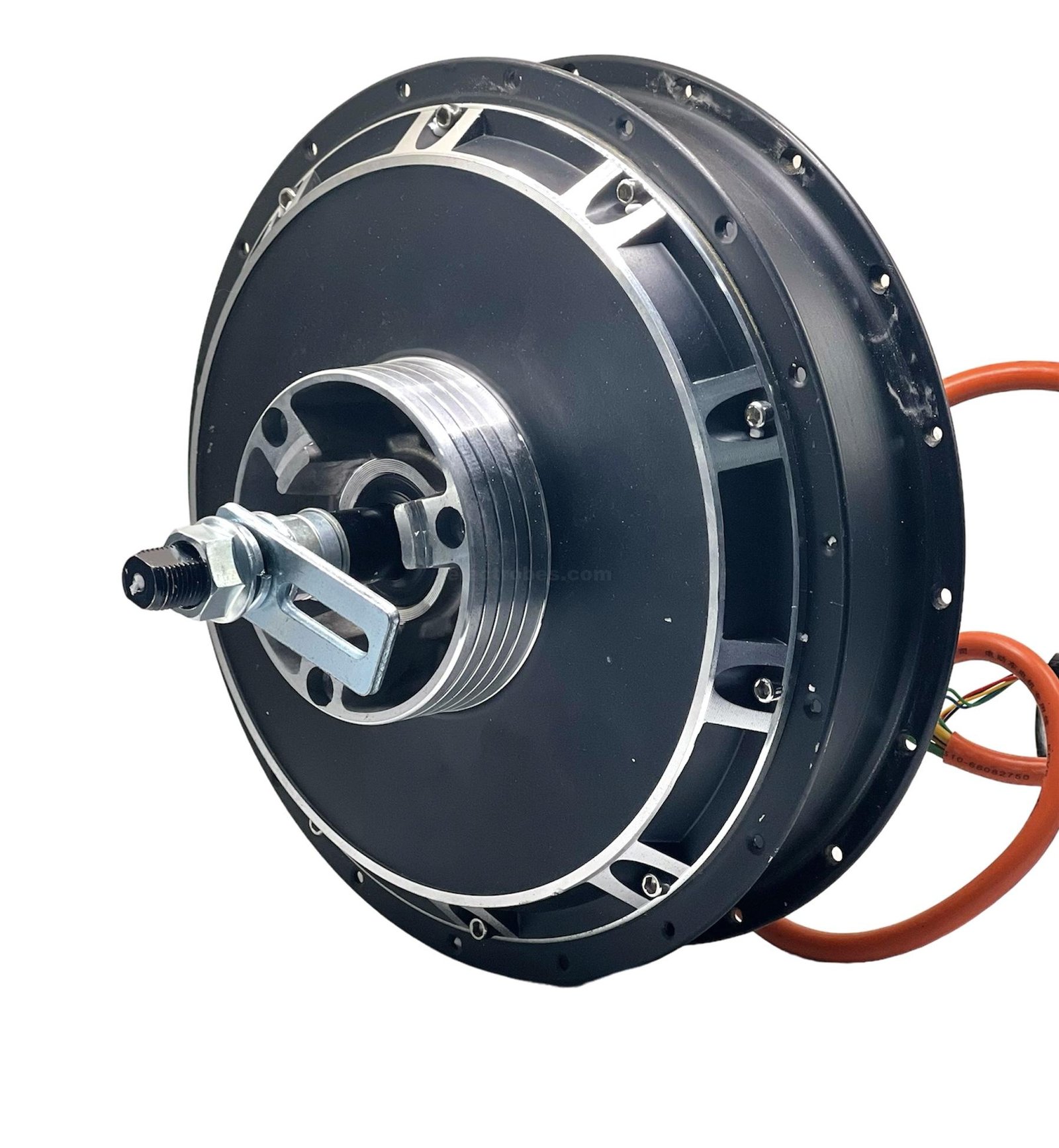

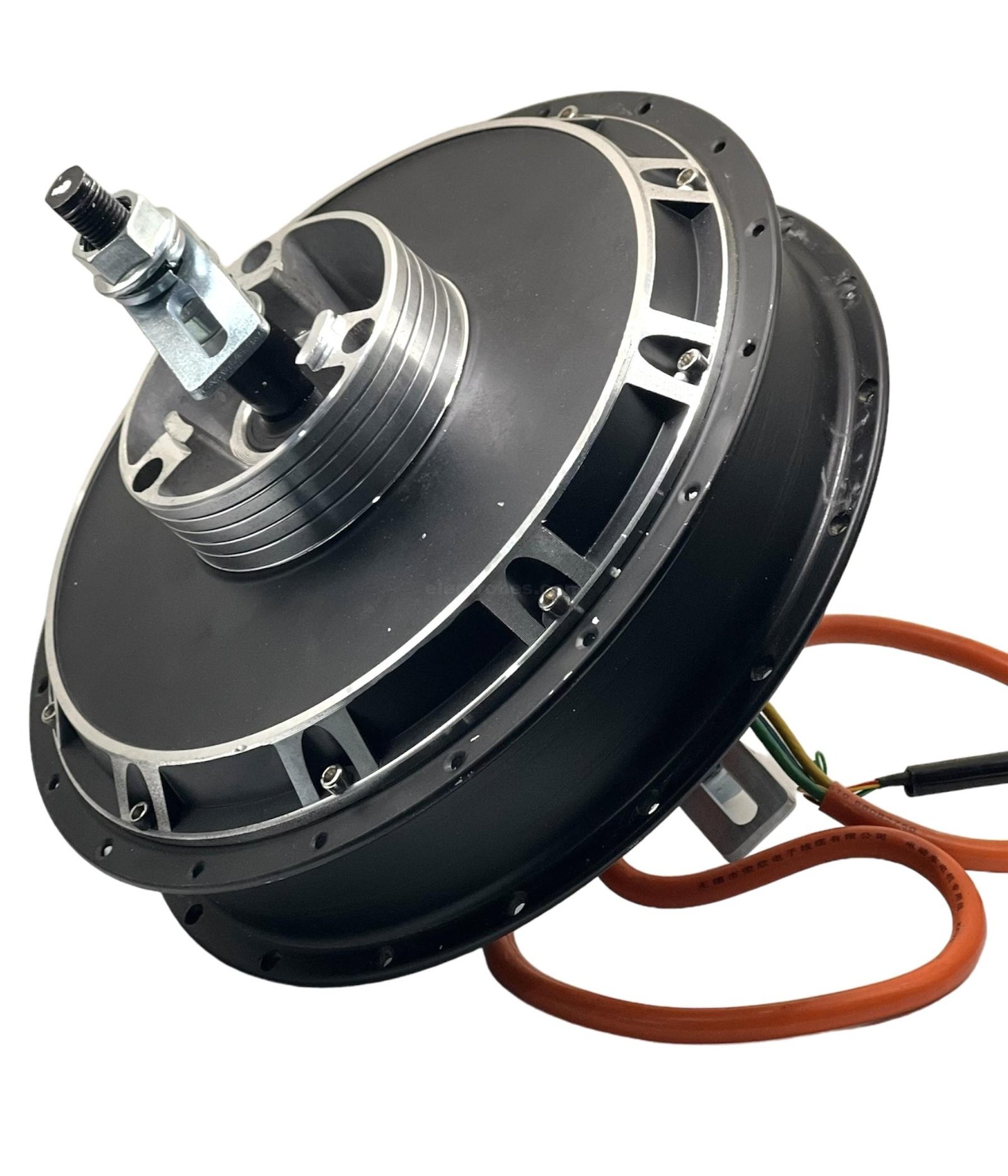

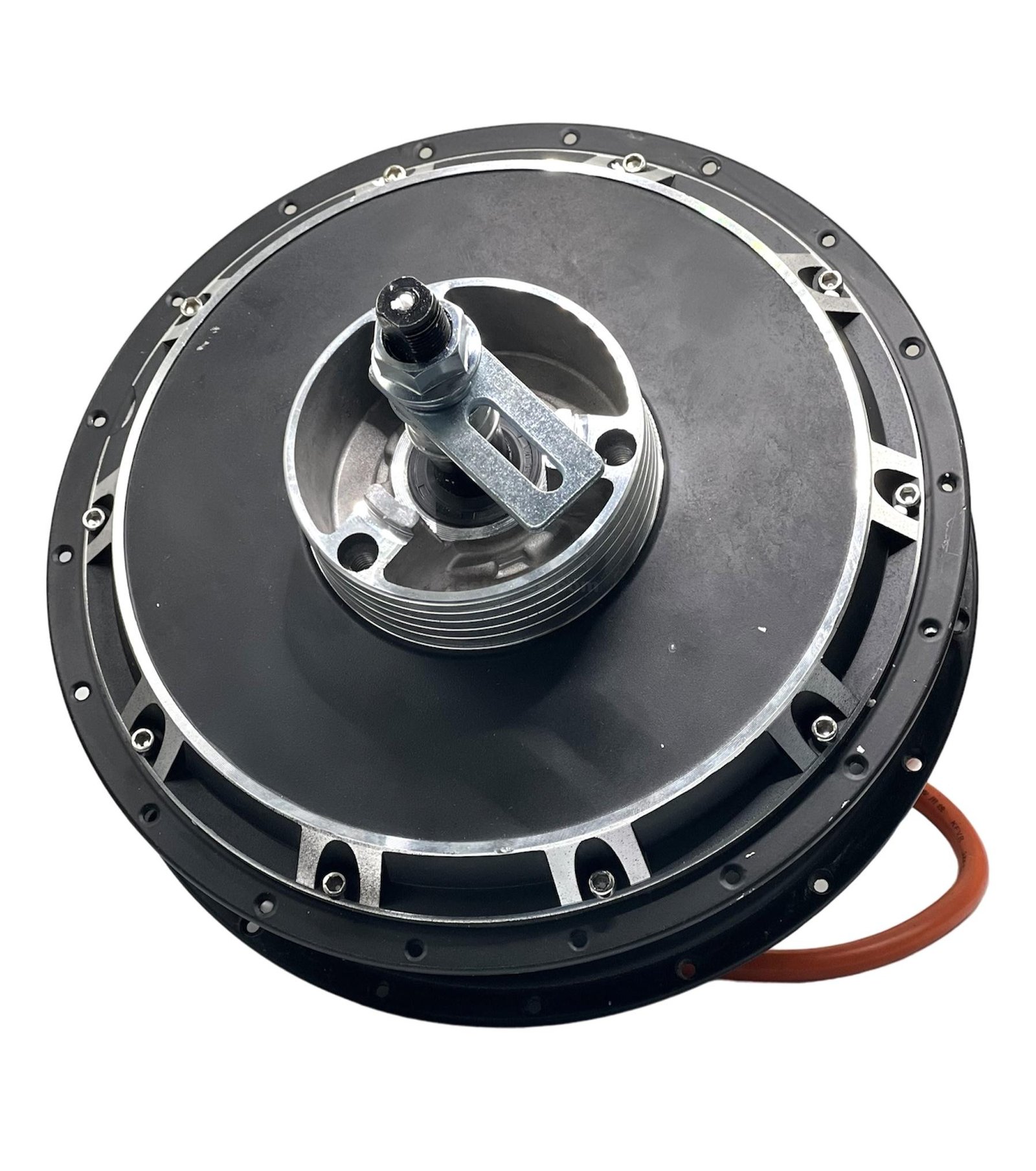

This is a 3000W 48-72V Brushless Hub Motor for E-bike used with various types of bikes in Pakistan like CD-70, CG-125, GS-150, YBR, YBZ, RP-100 etc.

The motor has the connection wires for the hall sensor and temperature controller making it more easy to control. One can use this Hub motor in Self-balancing Car, Electric Scooter, Skateboard, E-bike, ATV, Electric Roller, DIY Conversion Kit, E-Scooter, etc.

This is an easy to install hub motor with plug and drive wiring to controller, that makes it convenient to install. The elegant design and black color of the motor gives you bike a beautiful look. The copper winding of the motor makes it energy-efficient

With a wide input voltage range of 48-72V, make it compatible with all types of lithium ion and lifePo4 battery packs.

Features of 3000W Brushless Hub DC Motor:

• Elegant Black color with silver lining
• Wide range of operating voltage 48-72V
• Provides high speed of upto 80km/h
• Copper winding for energy efficiency
• Compatible with almost all bikes
• Spoke design makes it compatible with both front and rear wheel application
• Slim design that can fit in all kind of bikes
• With more secure disc braking system
• Compatibility with 16-28 inch wheels that covers almost all types of bikes available in Pakistan
• Highly efficient, for more mileage
• 10in wheel hub motor can be used for electric motorcycle, electric off-road vehicle, electric bicycle, scooter, go kart, etc.
• Powerful Motor: If your scooter can’t climb and drive slowly, replace this motor and accelerate immediately to provide more power to solve the problem.
• High Strength: The hub motor is made of aluminum alloy, which is strong, light weight and rust proof for long term use in high speed rotating environment.
• 3300W Maximum Power: High power motor up to 3300W, with a maximum speed of 80KM/h, to meet the needs of various scenarios.
• Optimum Performance: With professional technology, the performance of the hub motor is 30% higher than the traditional motor, giving you a better riding experience.

Specification:

• Nominal Voltage (V): 48-72 V
• Nominal Power (W): 3000 W
• Wheel size (inch): 16-28 inch
• Nominal Speed (km / h): 80-90 km/h
• Weight (KG): 10kg
• Spoke: 36 hole spoke 12G / 13G
• Position: Rear
• Build: Gear
• Dropout / Open Size (mm): 26cm / 10 inches
• Thickness: 8cm
• Spokes gap: 3.4cm
• Magnet Poles (2 p): 10
• Type of brake: Disc brake
• Cabling Route: Center
• Operating temperature (ºC): -20-45 ºC
• Efficiency (%): 82%
• Max, Efficiency (%): 86%
• Noise Grade (DB) <55
• IP Grade: IP65
• Salt Spray Test Standard (h) 96
• Surface Color: Black

Package Includes:

1 x  3000W 48V-72V Brushless Hub Motor for E-bike
