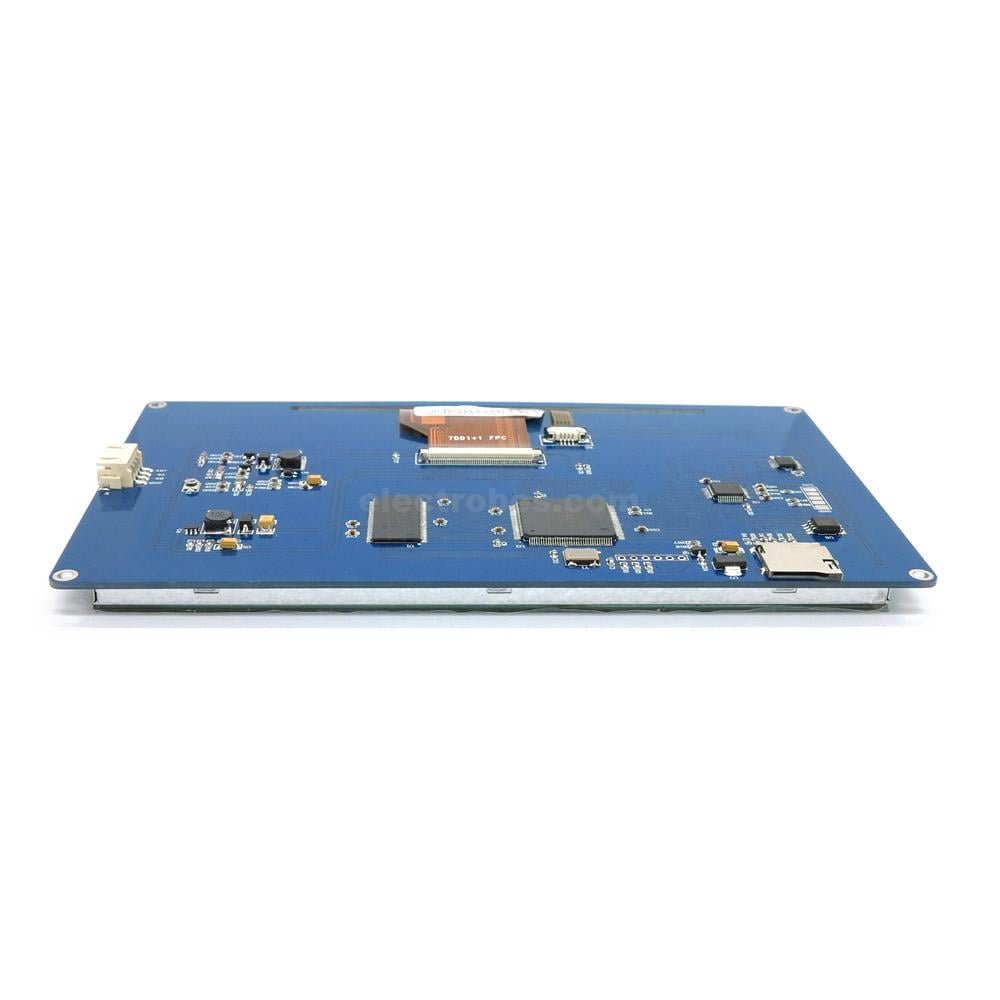

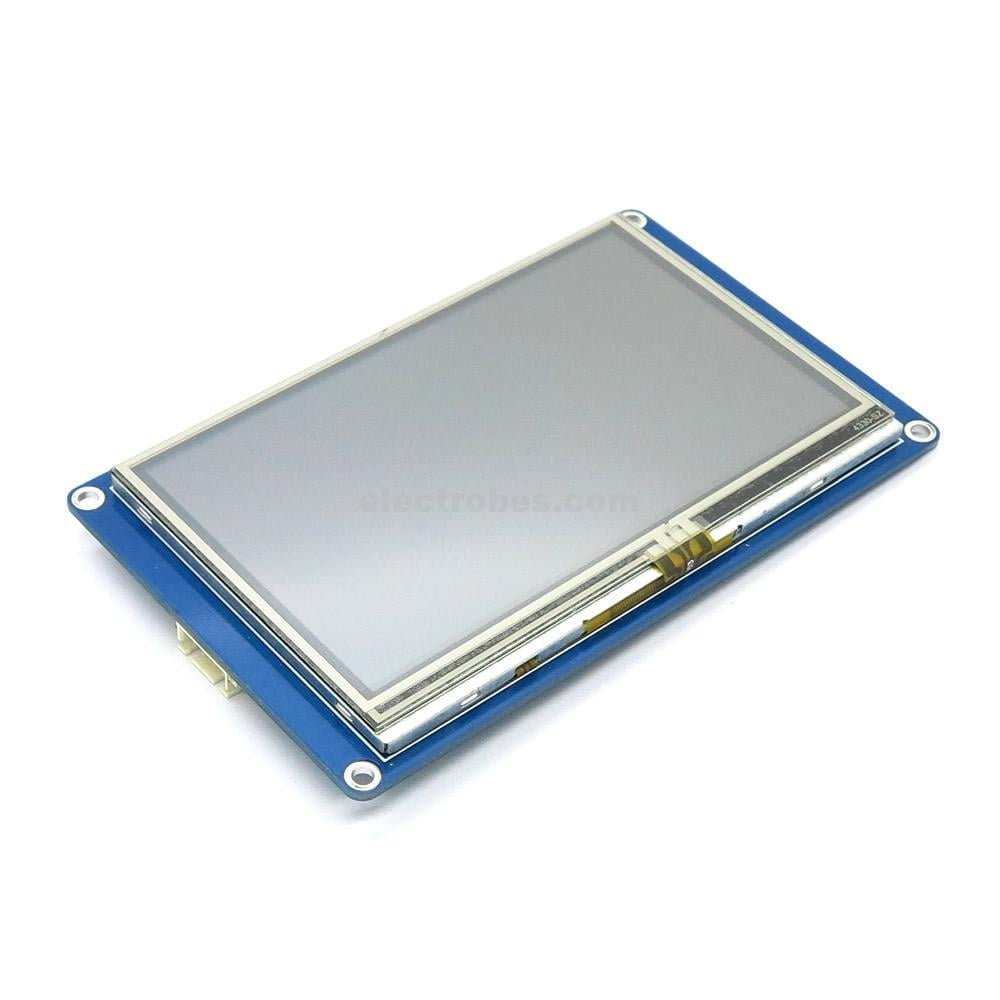

7 Inch Nextion HMI Serial Touch Display Board Module NX8048T070 Multifunction HMI Resistive Touch
The 7″ Nextion HMI LCD Capacitive Touch Display is a Seamless Human Machine Interface (HMI) display module solution that provides a control and visualization interface for any Raspberry Pi and Arduino kits. Nextion is mainly applied to lot or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube, and, it is best intelligent display module in the market.
In stock
₨ 25,500
In stock
7 Inch Nextion HMI Serial Touch Display Board Module NX8048T070 Multifunction HMI Resistive Touch for Arduino and Raspberry Pi

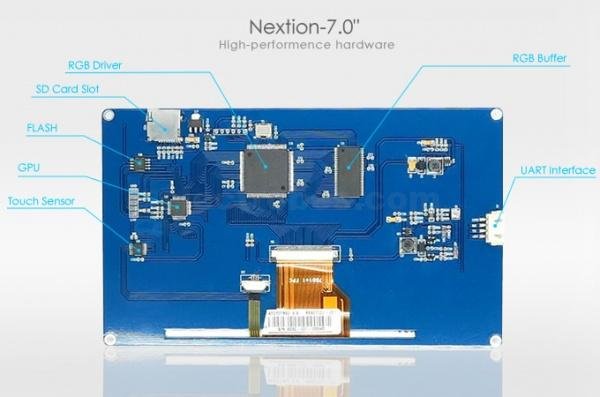

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. With the Nextion Editor software (Official Download), users are able to create and design their own interfaces for Nextion display.
Features:
- Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino
- 800 x 480 Resolution
- RGB 65K true to life colors
- TFT Screen with integrated 4-wire Resistive Touch Panel
- 4 pin TTL serial interface
- 16M Flash memory for User Application Code and Data
- Onboard micro-SD card slot for firmware upgradation
- Visual Area: 154.08mm(L)×85.92mm(W)
- Adjustable Brightness: 0~230 nit, the interval of adjustment is 1%
- Recommended Power Supply: 5V, 2A, DC
- Certificates: CE/EMC, RoHS (certificates)
Package includes:
- Nextion Display
- connecting wire
- a power supply test board
- Display Type: Nextion
- Model: NX8048T070
- Screen Type: Touch screen
- Touch characteristic: Capacitive
- Internal Storage: 16M flash
- Brightness: 0~230 nit
- Voltage: 5V
- Display Size: 7.0”
- Display Resolution: 800 x 480
- Display Interface: Serial
- Display Controller: No
- SD Card Socket
- Touch Screen
- Board Size: 181mm*108mm
- Weight: 337.0000
