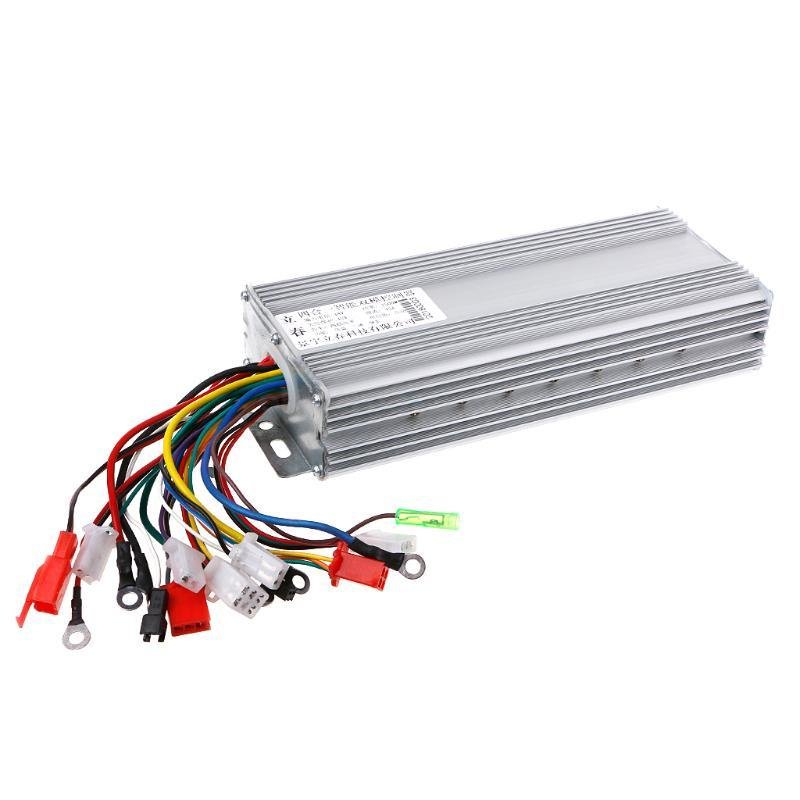

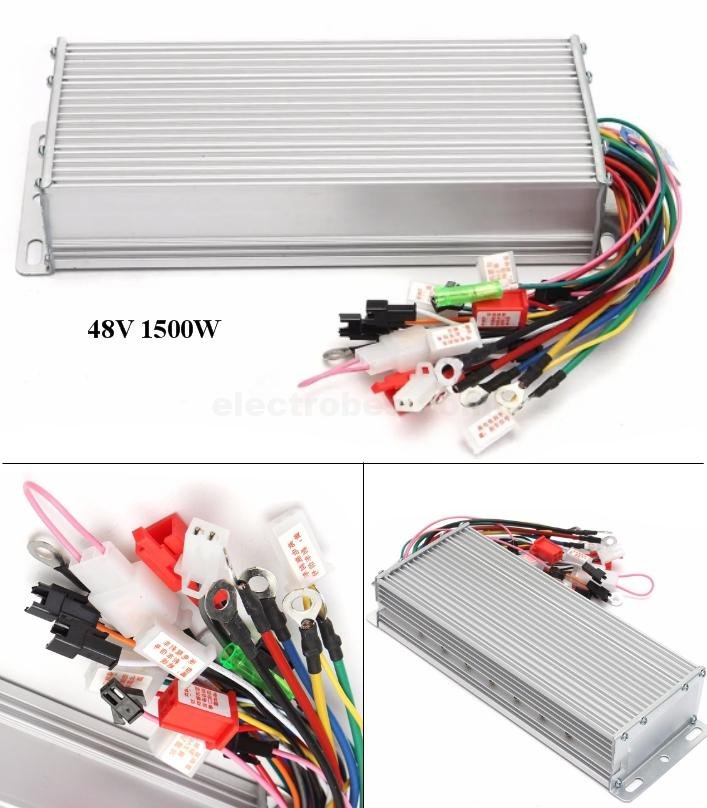

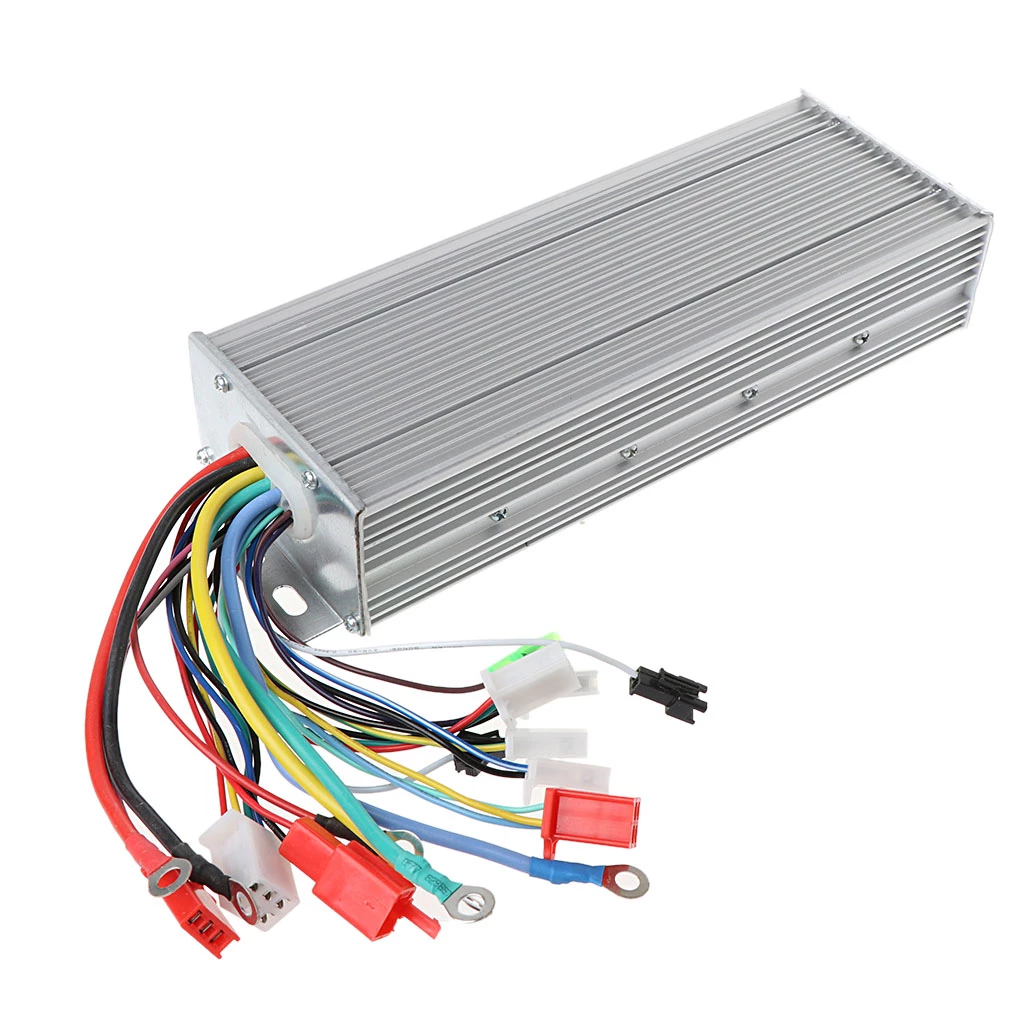

DC 48V 1500W Brushless Motor Controller for E-bike Scooter Electric Bicycle

Description:

Waterproof designed brush-less motor controller for outdoor application

Only those 8 wires(3 phase-cables & 5 hall-cables) DC brushless motor that can work with this controller, other brushless motors are not compatible.

It has 4 groups necessary cables(power cables, E-lock cables, Throttle-cables & Motor-phase cables), when hook up these 4 groups cables, the E-bike can run normally. Besides, these controllers have other optional functions, users can hook them up according to your applications.

Three-speed Anti- theft; EBS, Cruise.

Fitment:

Suitable for: Electric bicycle & scooter, Mechanical or electric forklift etc.

Note:

Compatible Motors: Only those 8 wires(3 phase-cables & 5 hall-cables) DC brushless motor that can work with this controller, other brushless motors are not compatible.

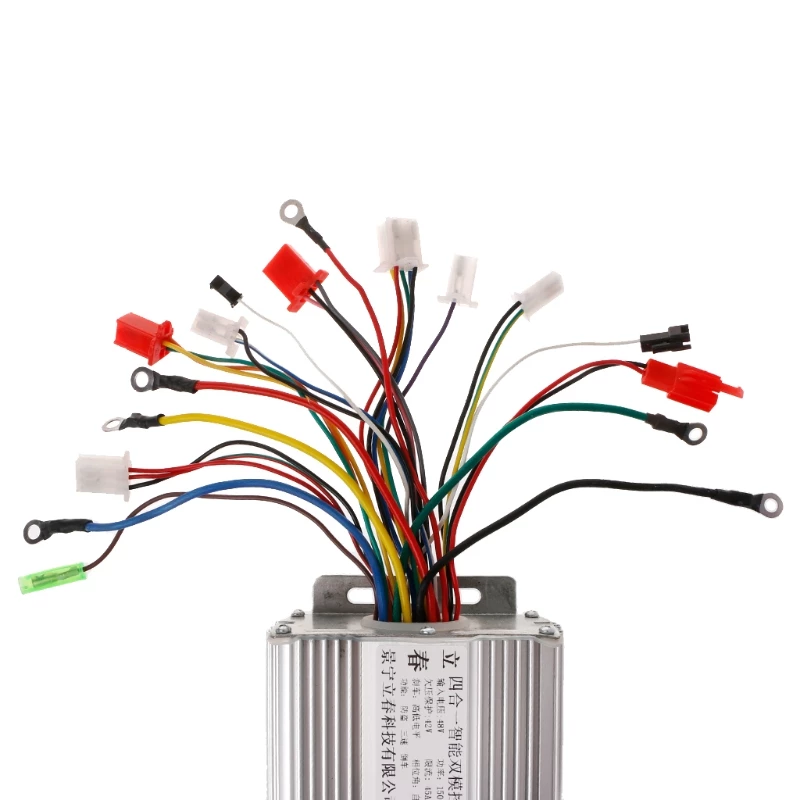

Connection Table:

1.)Power Cables: big red + big black
2.)Motor Cables: big yellow + big green + big blue
3.)Electric Door Lock Cable: The middle-red cable with 6.3mm plug
4.)Hall Cables: small red, small black, small yellow, small green, small blue
5.)Throttle Cables: Small Red(5v) + Small Blue(signal) + Small Black(Negative)
6.)Speed Cables: Blue(high speed) + Black(normal speed) + Yellow(low speed)
7.)High E-level Brake: Yellow( for 12v braking bike)
8.)Low E level Brake: Brown(braking signal) + Black(connecting the 2 cables together will realize the power cutting off braking function)
9.)Anti-theft Alarm Cables: Red + Black(power) + Red(E-start) + Blue(Motor Signal) + Green(Motor Lock)
10.)Self-Study cable: Self-study(Phase Learning)
Function: White cables connecting together
11.)Cruise(Optical):Cruise Function: Gray Cables(Two plugs connecting together will be auto cruise function;
if connecting the 2 cables to a switch, it will be switching cruise function)
12.)LCD Display Cables: Blue(speed shift button) + Green(speed cable to LCD)
13)Speed Meter Cable: Green( Not suitable for LCD Speed Meter)

Installation:

1.These controllers have 4 groups necessary cables(power cables, E-lock cables, Reversing-cables & Motor-phase cables),
when hook up these 4 groups cables, the E-bike can run normally.
2.Besides, these controllers have other optional functions, users can hook them up according to your applications.

Package Included:

1 X 48V 1500W Brushless Motor Controller
