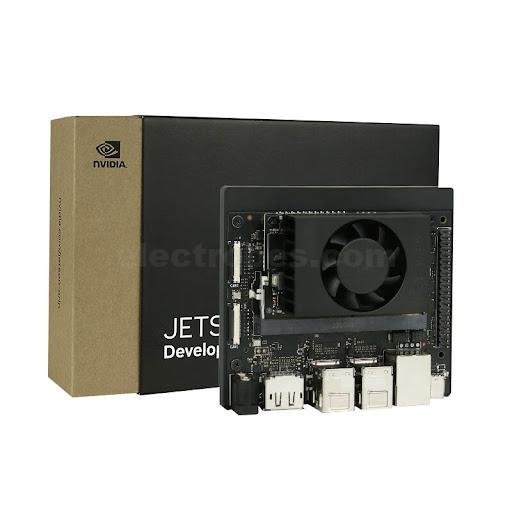

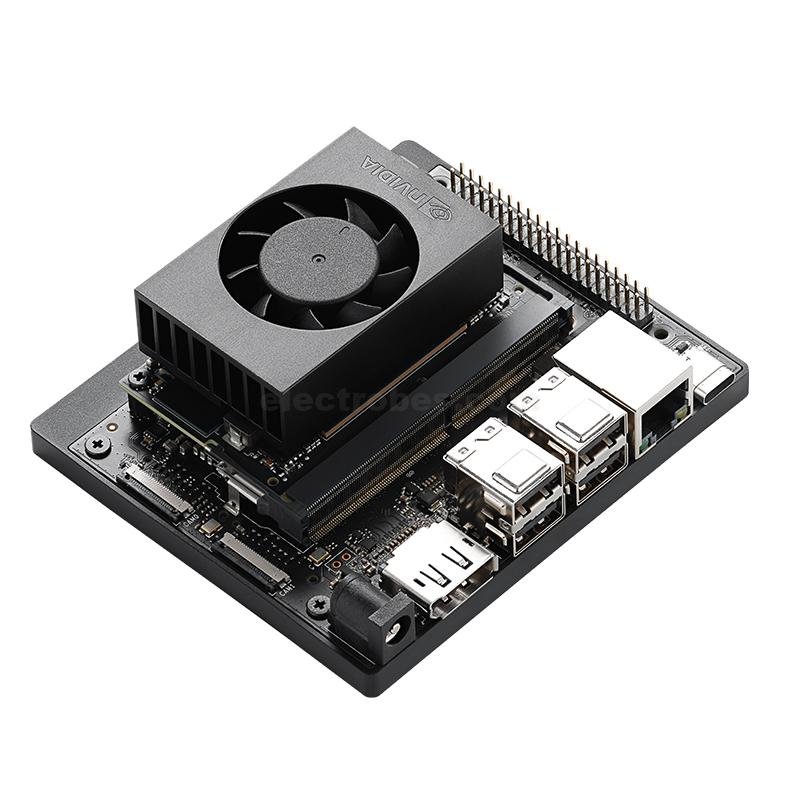

NVIDIA Jetson Orin Nano Super Developer Kit

The developer kit consists of a Jetson Orin Nano 8GB module mounted on a reference carrier board. It is specifically optimized for running modern Transformer-based models, including Large Language Models (LLMs), Vision Transformers, and Vision-Language Models (VLMs) directly at the edge.
Availability:

Out of stock

 135,000  165,000

Out of stock

Stay updated!

NVIDIA Jetson Orin Nano 8GB Super Developer Kit

The developer kit consists of a Jetson Orin Nano 8GB module mounted on a reference carrier board. It is specifically optimized for running modern Transformer-based models, including Large Language Models (LLMs), Vision Transformers, and Vision-Language Models (VLMs) directly at the edge.

Key Features

  • Performance Boost: Delivers a 1.7X improvement in AI performance compared to the original 15W configuration.
  • Software-Driven Upgrade: Existing owners of the standard Orin Nano 8GB Developer Kit can unlock these “Super” specs simply by updating to the latest JetPack SDK.
  • Rich Connectivity:
    • Video: 1x DisplayPort 1.2 (+MST) and support for 1x 4K60 (H.265) video decode.
    • Camera: 2x MIPI CSI-2 22-pin connectors.
    • USB: 4x USB 3.2 Gen 2 Type-A ports and 1x USB Type-C for UFP.
    • Expansion: 40-pin GPIO header (Raspberry Pi compatible layout), M.2 Key E (pre-installed Wi-Fi/BT), and 2x M.2 Key M slots for SSDs.
  • Comprehensive Software Stack: Fully supports the NVIDIA AI software stack, including CUDATensorRT, and specific frameworks like NVIDIA Isaac for robotics and NVIDIA Metropolis for vision AI.

Specifications

  • GPU: 128-core Maxwell
  • CPU:Quad-core ARM A57 @ 1.43 GHz
  • Memory: 8 GB 64-bit LPDDR4 25.6 GB/s
  • Storage: microSD (not included)
  • Video Encoder: 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
  • Video Decoder: 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30|(H.264/H.265)
  • Camera: 2x MIPI CSI-2 DPHY lanes
  • Connectivity: Gigabit Ethernet, M.2 Key E
  • Display: HDMI 2.0 and eDP 1.4
  • USB: 4x USB 3.0, USB 2.0 Micro-B
  • Others: GPIO, I2C, I2S, SPI, UART
  • Mechanical: 100 mm x 80 mm x 29 mm

Package Include:

  • Type B (US, JP) Power Cable
  • Type I (CN) Power Cable
  • Quick Start and Support Guide

  • AI Performance: Up to 67 TOPS (INT8), a 1.7x increase over the original 40 TOPS.
  • GPU: NVIDIA Ampere architecture with 1,024 CUDA cores and 32 Tensor Cores.
  • CPU: 6-core Arm Cortex-A78AE v8.2 64-bit with a max frequency of 1.7 GHz.
  • Memory8 GB 128-bit LPDDR5 with an enhanced bandwidth of 102 GB/s.
  • Power Modes: Configurable from 7W to 25W; the new “Super” mode allows for higher performance at 25W.
  • Connectivity:
  • 1x Gigabit Ethernet port.
  • 4x USB 3.2 Gen 2 Type-A ports.
  • 1x DisplayPort 1.2 (+MST).
  • 2x MIPI CSI-2 22-pin camera connectors.
  • 40-pin expansion header (UART, SPI, I2S, I2C, GPIO).
