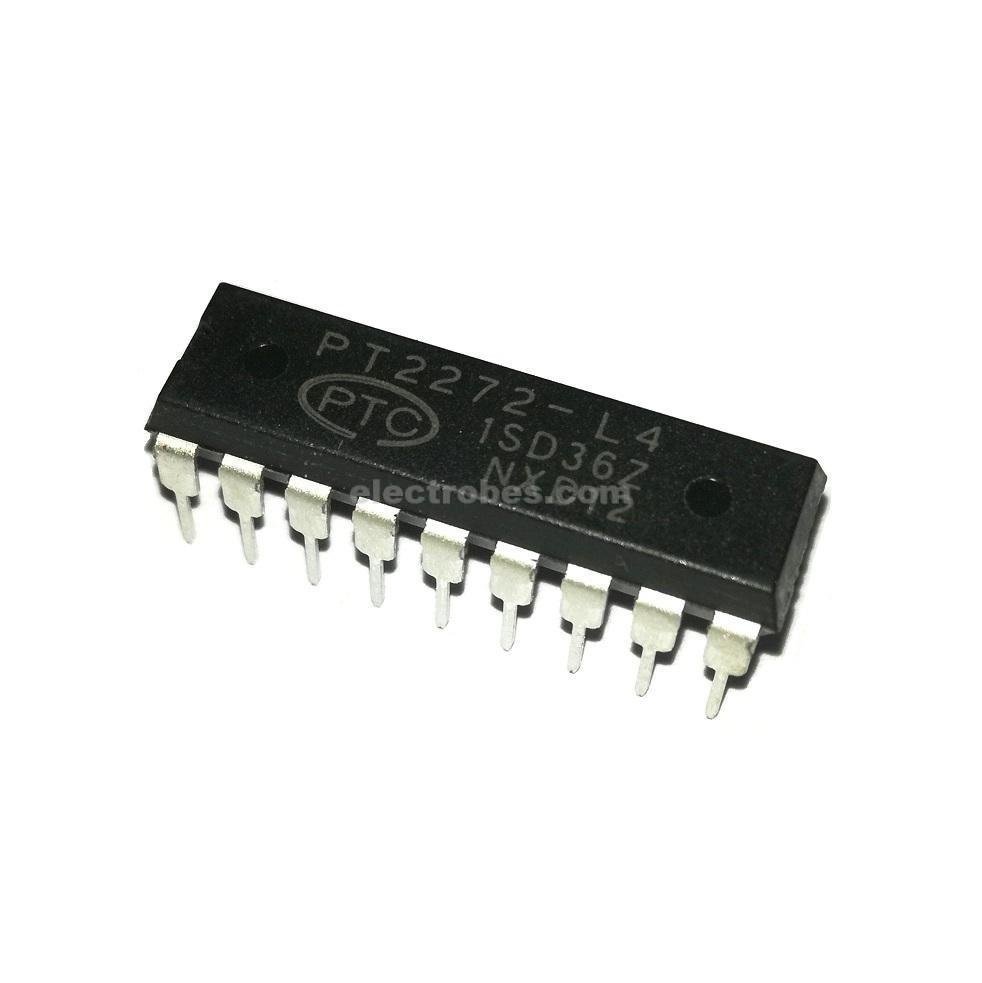

PT2272 L4 RF REMOTE DECODER DIP-18 IC
- Family: CMOS
- Case: DIP-18 | SOP-20;
- Input Voltage: Vcc: 4-15 VDC;
- Icc: <1 µA (Stand-by)
- Pd: __ mW
- Operational Temperature: -40…+85 °C
- Data Bits: 4
- Max. Outputs: 4
- Output Type: Digital / Binary
- Commonly used for RF and IR wireless transmission
- Available in 16-pin DIP, 20-pin SOP
Availability:
Out of stock
₨ 90
Out of stock
PT2272 is a remote control decoder paired with PT2262 utilizing CMOS Technology. It has 12-bit of tri-state address pins providing a maximum of 531,441 (or 312) address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities. PT2272 is available in several options to suit every application need: variable number of data output pins, latch or momentary output type.
FEATURES:
- CMOS Technology
- Low Power Consumption
- Very High Noise Immunity
- Up to 12 Tri-State Code Address Pins
- Up to 6 Data Pins
- Wide Range of Operating Voltage: VCC=4~15V
- Single Resistor Oscillator
- Latch or Momentary Output Type
For further details about PT-2272 Decoder IC refer to Datasheet.
APPLICATIONS:
- Car Security System
- Garage Door Controller
- Remote Control Fan
- Home Security/Automation System
- Remote Control Toys
- Remote Control for Industrial Use
