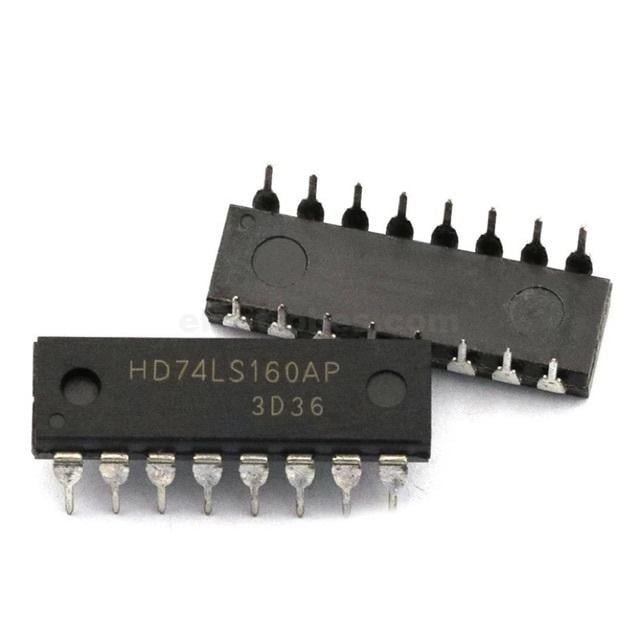

74LS160 74160 74HC160 4-Bit Synchronous Decade Counter
The 74LS160 IC package, consisting of 16 pins, contains a single 4 bit synchronous counter circuit which can be wired for decade counting mod, without external logic chips. By wiring more than one 74LS160 together (cascading), it is possible to make higher count lengths (powers of ten). For example, two 74LS160s cascaded together would yield a counter capable of decimally counting the range 00 – 99.
In stock
₨ 70
In stock
74LS160 Dual 4-Bit Decade/Binary Counter IC is a part of 74XXYY IC series. The 74LS160 IC has a wide range of working voltage, a wide range of working conditions, and directly interfaces with CMOS, NMOS, and TTL. The output of the IC always comes in TTL which makes it easy to work with other TTL devices and microcontrollers. The IC 74LS160 is smaller in size and it has a much faster speed which makes it reliable in every kind of device.
What is a Decade/Binary Counter?
A Binary Counter is a serial digital counter that counts ten digits. it resets for every new clock input. As it can go through 10 unique combinations of output, it is also called as “Decade counter”. A binary counter can count 0000, 0001, 0010, 1000, 1001, 1010, 1011, 1110, 1111, 0000, and 0001 and so on. A 4 bit binary counter will act as a decade counter by skipping any six outputs out of the 16 (24) outputs.
74LS160 Pinout

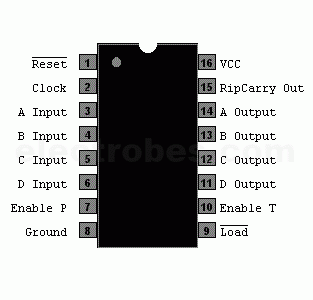

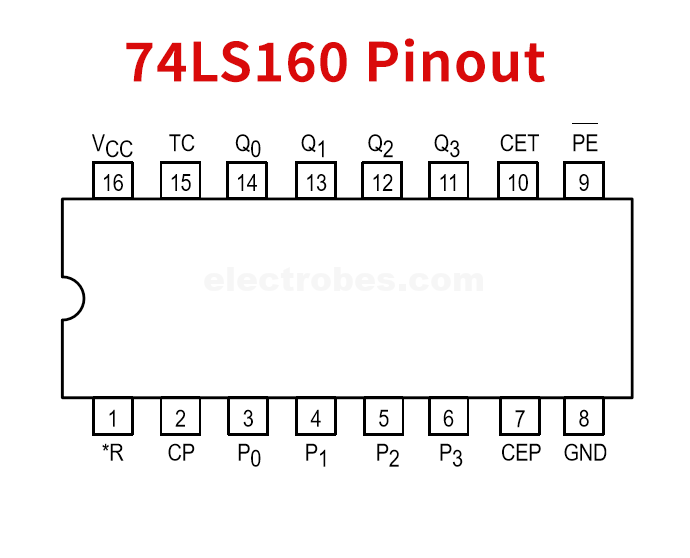

74LS160 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | R’ | Active low synchronous input |
| 2 | CP | Clock Pulse Input |
| 3 | P0 | Parallel Input Pin P0 |
| 4 | P1 | Parallel Input Pin P1 |
| 5 | P2 | Parallel Input Pin P2 |
| 6 | P3 | Parallel Input Pin P3 |
| 7 | CEP | Count Enable Parallel Input Pin |
| 8 | GND | Ground Pin |
| 9 | PE’ | Active Low Parallel Enable Input |
| 10 | CET | Clock Enable Trickle Input |
| 11 | Q3 | Parallel Output Pin Q3 |
| 12 | Q2 | Parallel Output Pin Q2 |
| 13 | Q1 | Parallel Output Pin Q1 |
| 14 | Q0 | Parallel Output Pin Q0 |
| 15 | TC | Terminal Count Output |
| 16 | Vcc | Chip Supply Voltage |
Applications
- Astable frequency divider or counter circuit.
- Timing related applications.
- Used in projects where Microcontrollers should be avoided.
You can download this Datasheet for 74LS160 4-Bit Synchronous Programmable Counter from the link given below:
- Function: Counter
- Product type: Binary
- Rating: Catalog
- Package: DIP
- Pins: 16
- Bits: 4
- Operating Voltage: 5V
- Time: 14ns
- Maximum clock frequency: 32MHz
- Internal look-ahead for Fast Counting
- Carry output for n-Bit cascading
- Synchronous counting
- Synchronously programmable
- Load control line
- Typical Rise Time: 18ns
- Typical Fall Time: 18ns
- Diode-clamped inputs
- 16 Pin DIP
