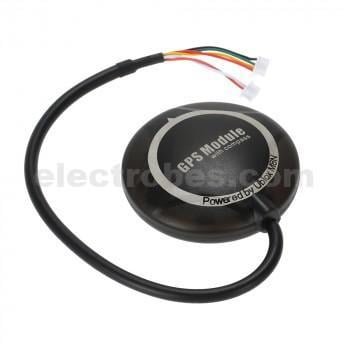

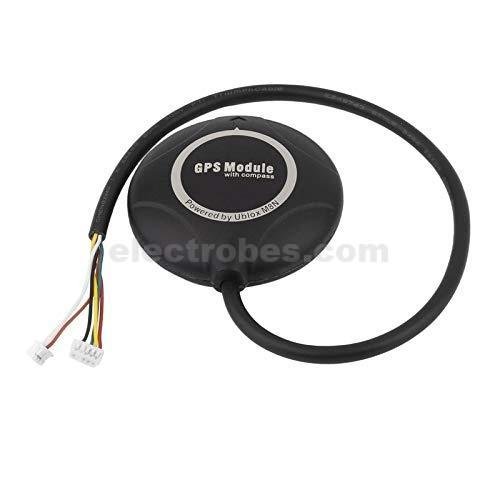

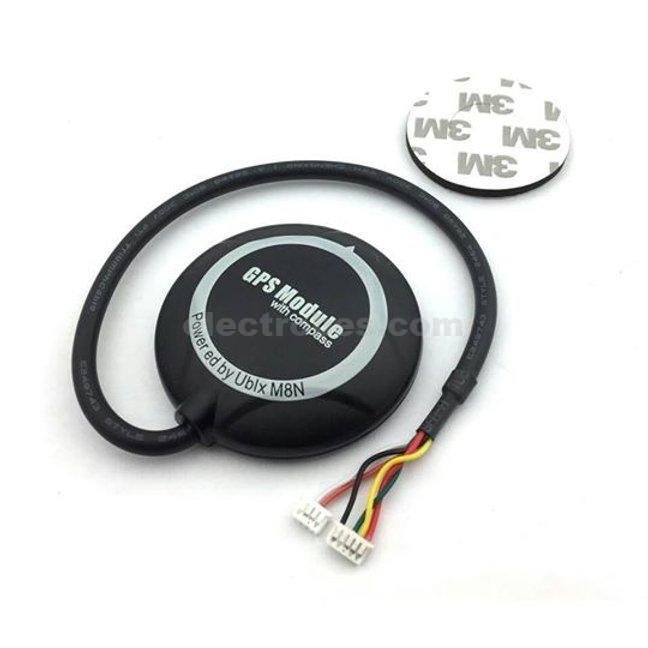

UBLOX NEO-M8N High Precision GPS Built-in Compass for APM Pixhawk

A new generation Ublox GPS NEO-M8N with low power consumption and high precision, the ultimate accuracy is 0.6 meters, exceeding the previous generation’s NEO-7N 1.4-1.6 meter accuracy. Supports GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode.

Compare
Availability:

In stock

 6,500

In stock

UBLOX NEO-M8N High Precision GPS Built-in Compass for APM Pixhawk

The NEO-M8N provides the best performance and easiest RF integration of all the NEO-M8 configurations. The NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments. NEO-M8 combines a high level of robustness and integration capability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems.
Ublox NEO-M8N GPS Module for APM APM2.52 APM Flight Controller with Case to protect the GPS preventing electromagnetic interference. A new generation Ublox GPS NEO-M8N GPS Module, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy. Support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol, and mode or more. The NEO-M8N and ceramic antenna make this a very accurate receiver, fast locks & lots of satellites, and the stand is very sturdy to protect the GPS preventing electromagnetic interference.

Features

  • GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
  • SBAS L1 C/A: WAAS, EGNOS, MSAS
  • Galileo-ready E1B/C (NEO-M8N)
  • Onboard Compass
  • Assistance AssistNow GNSS Online
  • AssistNow GNSS Offline (up to 35 days)
  • AssistNow Autonomous (up to 6 days)
  • OMA SUPL & 3GPP compliant
  • Oscillator TCXO (NEO-M8N/Q),
  • Crystal (NEO-M8M)
  • RTC crystal Built-In
  • Noise figure On-chip LNA (NEO-M8M). Extra LNA for
  • lowest noise figure (NEO-M8N/Q)
  • Anti-jamming Active CW detection and removal. Extra
  • onboard SAW bandpass filter (NEO-M8N/Q)
  • Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
  • Supported antennas Active and passive
  • Odometer Travelled distance
  • Data-logger For position, velocity, and time (NEO-M8N)



Package includes:

1 x NEO-M8N GPS Module



   UBLOX NEO-M8N High Precision GPS Built-in Compass with Holder for APM Pixhawk 2.4.8 px4 for quadcopter drone hex-copter multi-rotor plane rc car at best price online in islamabad rawalpindi lahore karachi multan sukkur skardu peshawar taxila wah gujranwala faisalabad hyderabad quetta pakistan UBLOX NEO-M8N High Precision GPS Built-in Compass with Holder for APM Pixhawk 2.4.8 px4 for quadcopter drone hex-copter multi-rotor plane rc car at best price online in islamabad rawalpindi lahore karachi multan sukkur skardu peshawar taxila wah gujranwala faisalabad hyderabad quetta pakistan UBLOX NEO-M8N High Precision GPS Built-in Compass with Holder for APM Pixhawk 2.4.8 px4 for quadcopter drone hex-copter multi-rotor plane rc car at best price online in islamabad rawalpindi lahore karachi multan sukkur skardu peshawar taxila wah gujranwala faisalabad hyderabad quetta pakistan

  • Receiver type 72-channel u-blox M8 engine
  • GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
  • SBAS L1 C/A: WAAS, EGNOS, MSAS
  • Galileo-ready E1B/C (NEO-M8N)
  • Nav. update rate1 Single GNSS: up to 18 HZ
  • Concurrent GNSS: up to 10 Hz
  • Position accuracy2 2.0 m CEP
  • Acquisition2 Cold starts: 26 s
  • Aided starts: 2 s
  • Reacquisition: 1.5 s
  • Sensitivity2 Tracking & Nav: –167 dBm
  • Cold starts: –148 dBm
  • Hot starts: –156 dBm
  • Assistance AssistNow GNSS Online
  • AssistNow GNSS Offline (up to 35 days)3
  • AssistNow Autonomous (up to 6 days)
  • OMA SUPL & 3GPP compliant
  • Oscillator TCXO (NEO-M8N/Q),
  • Crystal (NEO-M8M)
  • RTC crystal Built-In
  • Noise figure On-chip LNA (NEO-M8M). Extra LNA for
  • lowest noise figure (NEO-M8N/Q)
  • Anti jamming Active CW detection and removal. Extra
  • onboard SAW band pass filter (NEO-M8N/Q)
  • Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
  • Supported antennas Active and passive
  • Odometer Travelled distance
  • Data-logger For position, velocity, and time (NEO-M8N)
  • Operating temp. –40 °c to 85 °c
  • Storage temp. –40°c to 85°c (NEO-M8N/Q)
  • -40°c to 105°c (NEO-M8M)
  • RoHS compliant (lead-free)
  • Qualification according to ISO 16750
  • Manufactured and fully tested in ISO/TS 16949 certified production sites
  • Uses u-blox M8 chips qualified according to AEC-Q100
  • Supply voltage 1.65 V to 3.6 V (NEO-M8M)
  • 2.7 V to 3.6 V (NEO-M8N/Q)
  • Power consumption4 23 mA @ 3.0 V (continuous)
  • 5 mA @ 3.0 V Power Save Mode
  • (1 Hz, GPS mode only)
  • Backup Supply 1.4 to 3.6 V
  • NEO-M8N-0 u-blox M8 Concurrent GNSS LCC Module,
  • TCXO, flash, SAW, LNA,
  • Timepulse Configurable 0.25 Hz to 10 MHz
  • Color: black
  • Size: 77*115*12mm
  • Net weight: 33g
