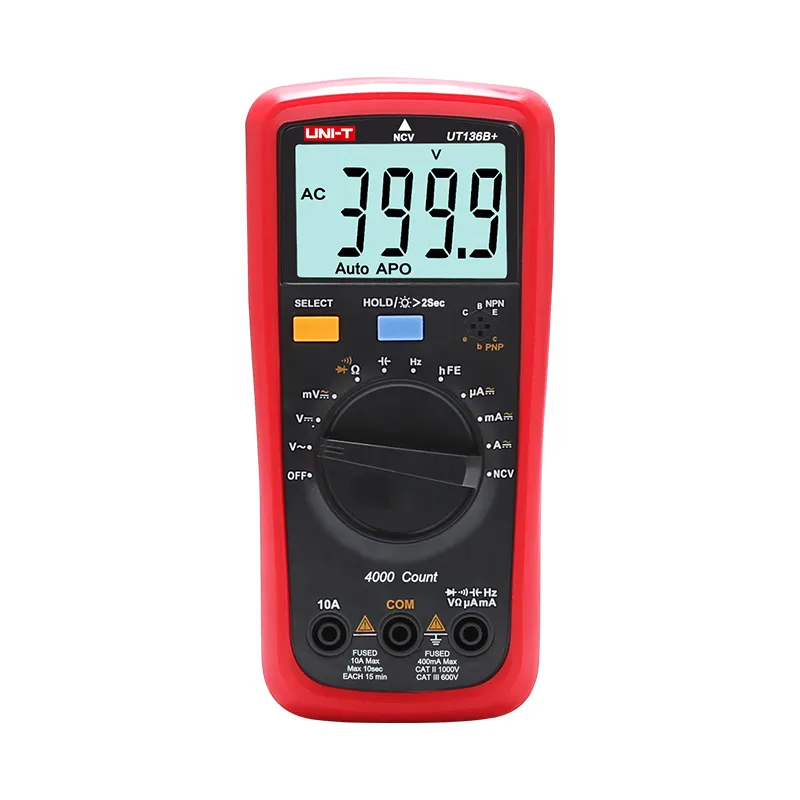

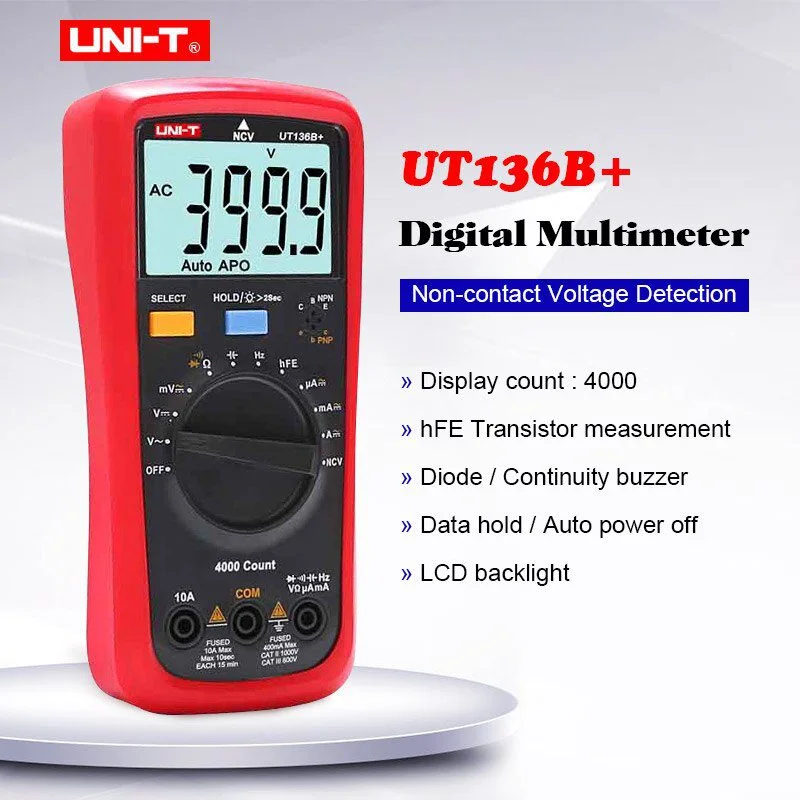

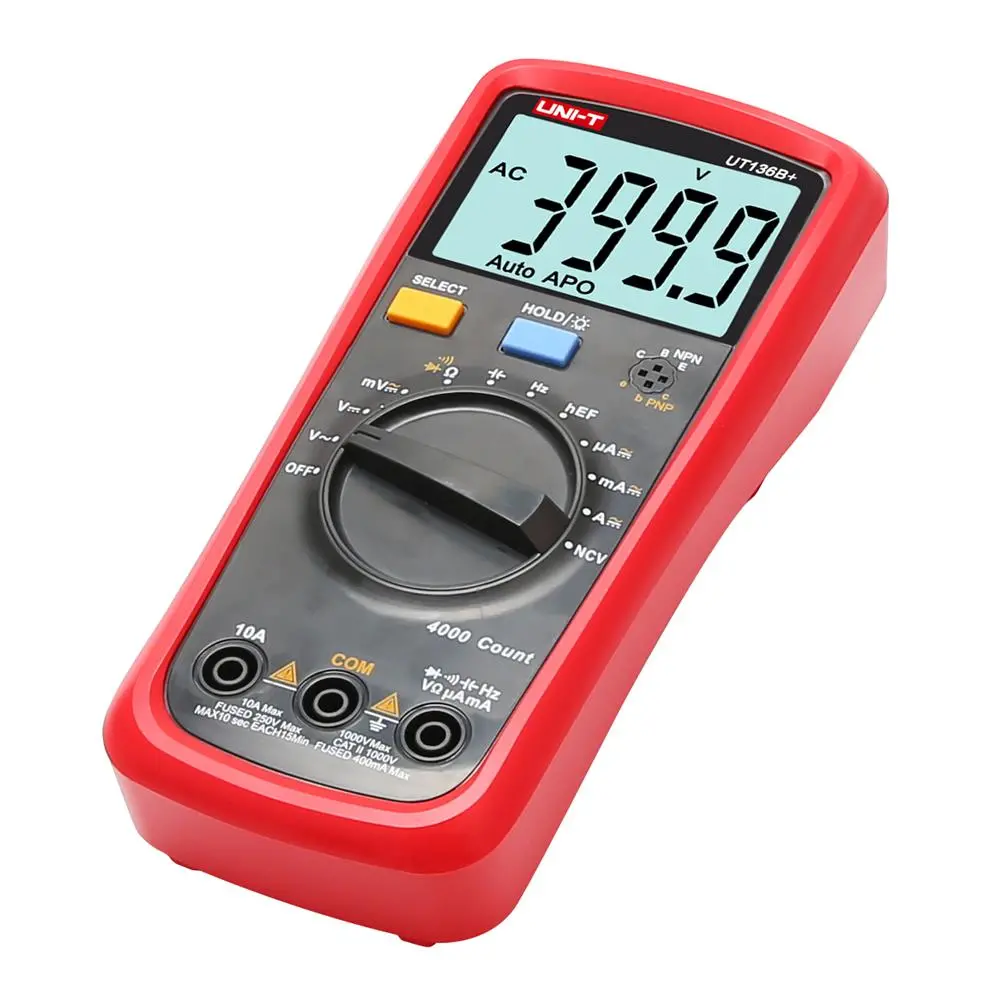

UNI-T UT136B+ Digital Multimeter Voltage Current Capacitance and Temperature Meter
- Measures up to 1000V and 10A AC/DC voltage and current
- Equipped with 3mm protective sleeve; 2 meters drop proof
- Large LCD display; Overload alarm
- Quick sampling rate, up to 4 times/s
- Quick capacitor measurement (measures 1mF in 4 seconds)
- Low power consumption and auto power saving function; long battery service life (>500hrs)
In stock
₨ 5,300
In stock
UNI-T UT136B+ Digital Multimeter AC/DC Voltage Current Capacitance Frequency and Temperature Meter
The new generation of UT136+ series digital multimeter has an innovative industrial design which ensures that the product can withstand a drop of 2 meters height. Large LCD screen provides a clear display and its 4 times/second sampling rate provides users with more accurate readings. UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment.
Features:
- High-Precision Digital Multimeter The UNI-T UT136B+ and UT136C+ offer accurate measurements with a 1000V AC/DC voltage and 10A current range, ideal for professional and DIY electrical tasks.
- Auto Range & Auto Power Off Equipped with Auto Range and Auto Power Off features, this multimeter simplifies operation and conserves battery life during idle periods.
- Digital Display with Wide Measurement Range Featuring a clear Digital Display, it measures up to 40MΩ resistance and 40mF capacitance, ensuring reliable results across diverse electrical diagnostics.
- Compact & Portable Design With dimensions of 18.5 x 11 x 6.5 cm and a lightweight 0.405 kg package, this multimeter is easy to carry and store in any toolkit.
Safe & Certified Performance Certified with CE, the UNI-T UT136B+ and UT136C+ meet international safety standards for electrical testing under 0 – 50°C operating temperature.
- Includes Essential Testing Functions This multimeter supports AC/DC voltage, current, resistance, diode, and temperature testing, making it a versatile tool for electricians and hobbyists.
- Direct from China Mainland Shipped directly from China Mainland, the UNI-T UT136B+ and UT136C+ are sold as one piece per pack, ensuring fast delivery and easy ordering.
Application:
- This series is suitable for civil/commercial use such as HVAC technicians and electricians.
USER MANUAL
Download UNI-T UT136C+ User Manual.
PACKAGE CONTENTS
- Digital Multimeter UNI-T UT136B+ — 1 pc.
- Test leads — 2 pcs.
- Temperature probe — 1 pc.
- User manual — 1 pc.
| Specifications | Range | UT136C+ |
| DC voltage (V) | 1000V | ±(0.7%+3) |
| AC voltage (V) | 1000V | ±(1%+3) |
| DC current (A) | 10A | ±(1%+3) |
| AC current (A) | 10A | ±(1.2%+5) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) |
| Capacitance (F) | 40mF | ±(3%+5) |
| Frequency (Hz) | 400Hz~40mHz | ±(0.1%+4) |
| Temperature (°C) | -40~1000℃ | ±(1%+4) |
| Temperature (℉) | -40~1832℉ | ±(1.5%+5) |
| Features | ||
| Display count | 4000 | |
| hFE | Transistor measurement | √ |
| Diode/transistor | √ | |
| Continuity buzzer | √ | |
| Data hold/Auto power off | √ | |
| Low battery/Indication | √ | |
| LCD backlight | √ | |
| Safety rating | CAT Ⅱ 1000V, CAT Ⅲ 600V | √ |
| Drop test | 2m | √ |
| General Characteristics | ||
| Power | 1.5V battery (R6) x 2 | |
| Display | 56.5mm x 36mm | |
| Product color | Red and grey | |
| Product net weight | 330g | |
| Product size | 175mm x 83mm x 53mm | |
| Standard accessories | Batteries, test leads, temperature probe | |
| Standard individual packing | Gift Box, English manual | |
| Standard quantity per carton | 30pcs | |
| Standard carton measurement | 390mm x 335mm x 340mm | |
| Standard carton gross weight | 12.75kg | |
