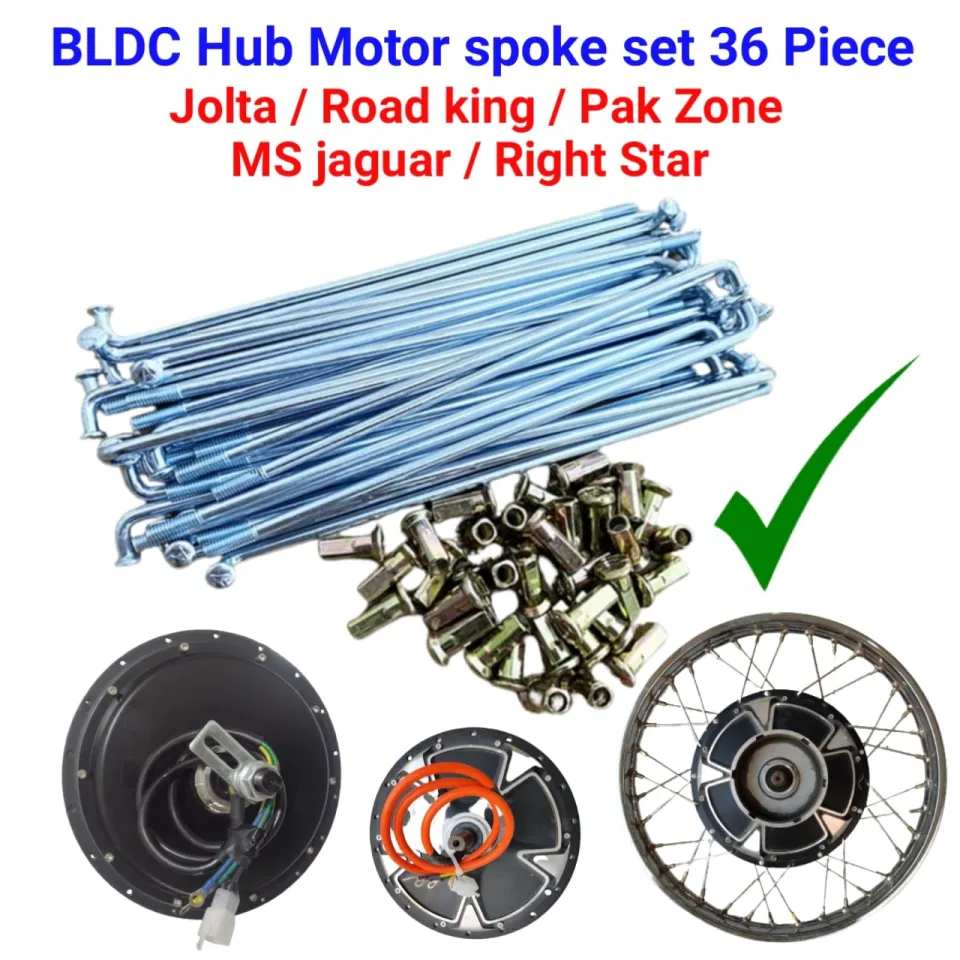

Electric Bike Hub Motor Spoke Set for 17 inch and 18 inch Bike Rim

Heavy-duty stainless steel spoke sets are crucial for building high-power 17-inch or 18-inch electric bike wheels, as they must withstand intense motor torque. Because hub motors have large diameters, standard bicycle spokes are too long; you need specialized, shorter, and thicker spokes (typically 10-gauge or 12-gauge). Upgrade your electric bike’s wheel set with our stainless steel spokes and nipples. High strength for Honda CD 70cc & 125cc models.

Specifications:

• Material: Stainless steel
• Color: Silver
• Adapted to: Electric Bike Hub/Spoke Motor
• Model: 100cc Honda Prider
• Combination sales quantity: 36Set Spokes+ Nipples
• High-quality compatibility and practical performance
• High Strength
• Size: 17 inch (10.5cm) or 18 inch (11.5cm)

Core Requirements for Hub Motor Spoke Sets

• Common Gauge Sizes: Use 10G (3.2mm) or 12G (2.6mm) thick spokes. Standard 14G bicycle spokes will snap under the strain of a 1000W–3000W electric motor.
• Standard Quantity: Choose 36 pieces per set (including matching high-strength nipples), which matches the 36-hole count standard for most 17/18-inch motorcycle-style rims and e-bike hub motors.
• Material: Ensure the set is made from high-strength stainless steel to prevent Rusting and fatigue over time.

How to Find Your Exact Spoke Length

1. Hub Flange Diameter: The distance from one spoke hole to the opposite hole on the motor casing.
2. Effective Rim Diameter (ERD): The inner diameter of your 17″ or 18″ rim plus the thickness of the rim bed.
3. Lacing Pattern: Most heavy-duty hub motors on small rims require a 1-cross or 0-cross (radial) pattern because the short distance prevents traditional 3-cross lacing

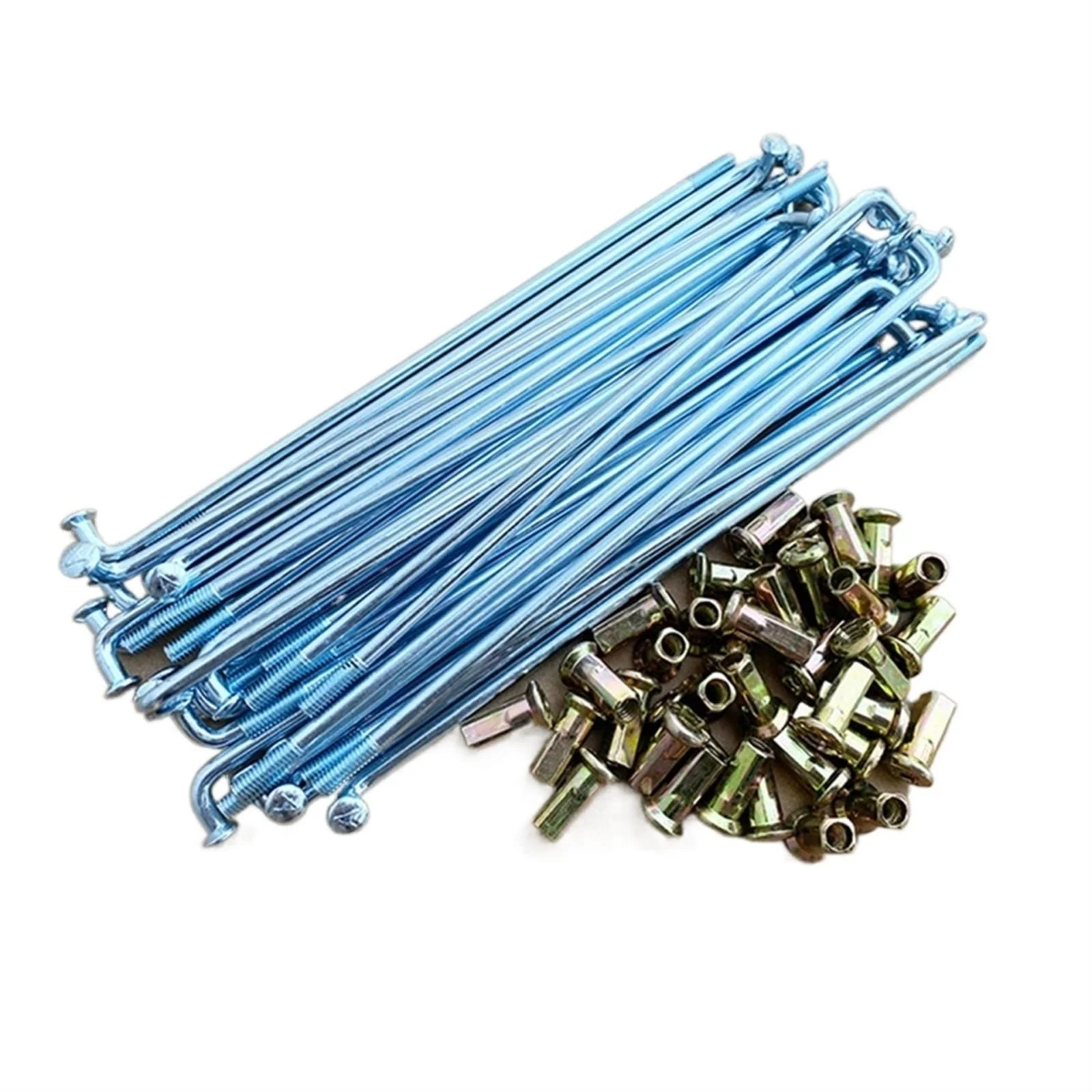

Package Includes:

36pcs 17/18-inch spokes

36pcs screwed nipple
